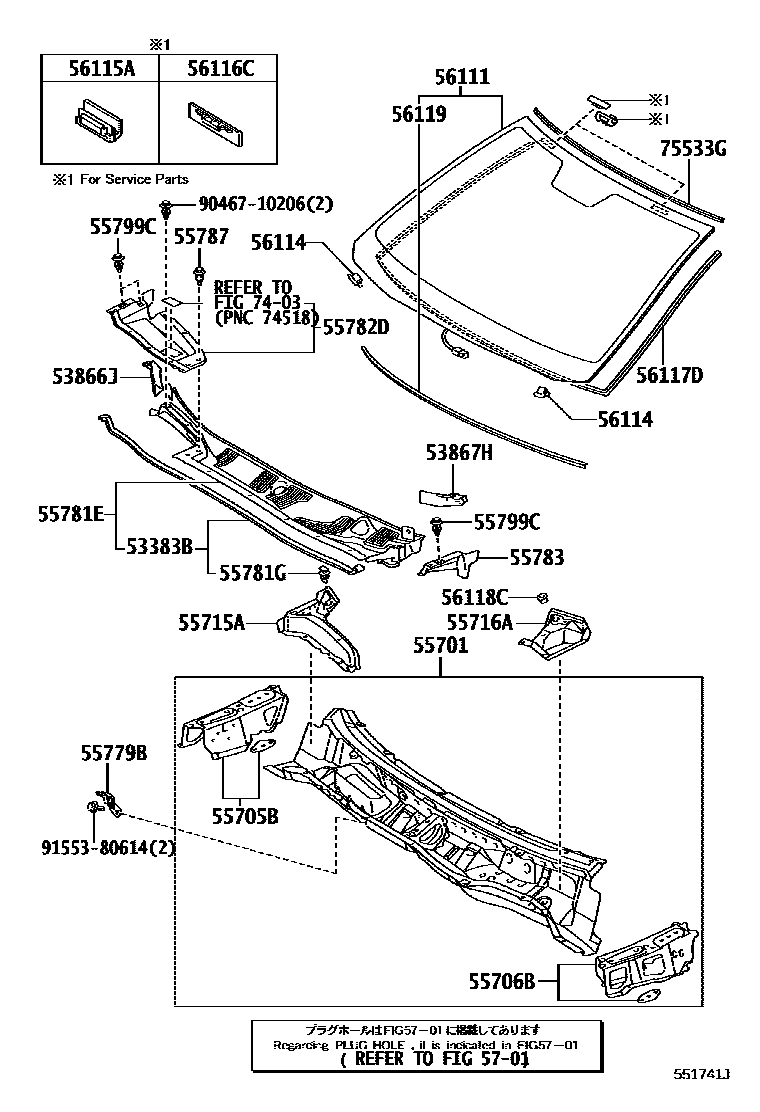

Toyota LEXUS LS460/460L — COWL PANEL & WINDSHIELD GLASS

0001 1 0002 1

53383BSEAL, HOOD TO COWL TOP

main53383-50060iUSF4#200608-200909

53866JSEAL, FRONT FENDER TO COWL SIDE, RH

main53866-50040iUSF4#200608-200909

53867HSEAL, FRONT FENDER TO COWL SIDE, LH

main53867-50040iUSF4#200608-200909

55701PANEL SUB-ASSY, COWL

main55700-50180iUSF4#..LHD200608-200703

sub55700-50181

main55700-50181iUSF4#..LHD200704-201109

main55700-50182iUSF4#..LHD201109-201110

sub55700-50183

main55700-50183iUSF4#..LHD201111-201209

main55700-50190iUSF4#..RHD200608-200703

sub55700-50191

main55700-50191iUSF40,41,45..RHD200704-201109

main55700-50192iUSF40,41,45..RHD201109-201110

sub55700-50193

main55700-50193iUSF40,41,45..RHD201111-201209

55705BPANEL SUB-ASSY, COWL TOP SIDE, RH

main55705-50901iUSF4#200608-201111

sub55705-50902

main55705-50902iUSF4#201111

55706BPANEL SUB-ASSY, COWL TOP SIDE, LH

main55706-50901iUSF4#200608-201111

sub55706-50902

main55706-50902iUSF4#201111

55715ABRACE, COWL TOP TO APRON, RH

main55715-50070iUSF4#..LHD200608-200909

main55715-50080iUSF40,41,45..RHD200608-200909

55716ABRACE, COWL TOP TO APRON, LH

main55716-50070iUSF4#..LHD200608-200909

main55716-50080iUSF40,41,45..RHD200608-200909

55779BBRACKET, WIRING HARNESS MOUNTING

main55779-50020iUSF4#..LHD200608-200909

main55779-50030iUSF40,41,45..RHD200608-200909

55781ELOUVER SUB-ASSY, COWL TOP VENTILATOR

main55708-50050iUSF4#..LHD200608-200705

sub55708-50051

main55708-50051iUSF4#..LHD200706-200909

sub55708-50071

main55708-50060iUSF4#..RHD200608-200705

sub55708-50061

main55708-50061iUSF40,41,45..RHD200706-200909

sub55708-50081

55781GCLIP, COWL TOP VENTILATOR LOUVER

main90467-08108iUSF4#200608-200909

55782PROTECTOR, COWL TOP VENTILATOR LOUVER, RH

main55785-50040iUSF4#..RHD200608-200909

55782DLOUVER, COWL TOP VENTILATOR, LH

main55782-50050iUSF4#..LHD200608-200909

55783PROTECTOR, COWL TOP VENTILATOR LOUVER, LH

main55785-50030iUSF4#..LHD200608-200909

55787CLIP, COWL VENTILATOR LOUVER, INNER

main90467-07076-C0iUSF4#200608-201209

BLACK

sub90467-07041

sub90467-07076

sub90467-A0016

55799CCLIP, COWL TOP VENTILATOR LOUVER

main90467-10170-C0iUSF4#200608-201209

BLACK

56111GLASS, WINDSHIELD

main56101-50420iUSF4#..RHD200608-200708

*LAM,T=5.48,GREEN

sub56101-50421

main56101-50421iUSF4#..RHD200709-200805

*LAM,T=5.48,GREEN

sub56101-50422

main56101-50422iUSF40,41,45..RHD200806-201209

*LAM,T=5.48,GREEN

sub56101-50730

main56101-50450iUSF4#..LHD..EUR200608-200708

*LAM,T=5.48,GREEN

sub56101-50451

main56101-50451iUSF4#..LHD..EUR200709-201209

*LAM,T=5.48,GREEN

sub56101-50770

main56101-50470iUSF4#..GCC200612-200708

*LAM,T=5.48,GREEN

sub56101-50471

main56101-50471iUSF4#..GCC200709-200809

*LAM,T=5.48,GREEN

main56101-50481iUSF40,41..GCC200809-201209

*LAM,T=5.48,GREEN

sub56101-50780

56114RETAINER, WINDSHIELD GLASS

main56114-50020iUSF4#200608-200909

56115ASTOPPER, WINDSHIELD GLASS, NO.1

main56115-30100iUSF4#200608-200909

56116CSTOPPER, WINDSHIELD GLASS, NO.2

main56116-22050iUSF4#200608-200909

56117DDAM, WINDSHIELD GLASS ADHESIVE

main56117-50120iUSF4#..LHD..EUR200608-200909

L=2917,WINDSHIELD DEICER-WITH

sub56117-64010

main56117-50120iUSF4#200608-200909

L=2917

sub56117-64010

main56117-50120iUSF4#200608-200909

L=2917,PRE-COLLISION SYSTEM-WITH(*STC & *DMO & *RPCS & *PB)

sub56117-64010

main56117-50120iUSF4#200608-200909

L=2917,PRE-COLLISION SYSTEM-WITH(*STC & *DMO & *RPCS & *PB)&WINDSHIELD DEICER-WITH

sub56117-64010

main56117-50120iUSF4#200909

L=2917,PRE-COLLISION SYSTEM-WITH(*DMO & *PB & *RPCS & *STC)

sub56117-64010

main56117-50120iUSF4#200909

L=2917,PRE-COLLISION SYSTEM-WITH(*DMO & *PB & *RPCS & *STC)&WINDSHIELD DEICER-WITH

sub56117-64010

56118CRETAINER, WINDSHIELD GLASS, NO.2

main56118-30080iUSF4#200608-200909

56119SEAL, WINDSHIELD GLASS

main56119-50060iUSF4#200608-200909

5701

7403

75533GMOULDING, WINDSHIELD, OUTSIDE

main75531-50050iUSF4#200608-200909

9046710206

main90467-10206

9155380614

main91553-80614

28 parts on this diagram · 2 diagrams in section
