EPC Data

Toyota LEXUS LS460/460L — CAMERA & REAR MONITOR DISPLAY

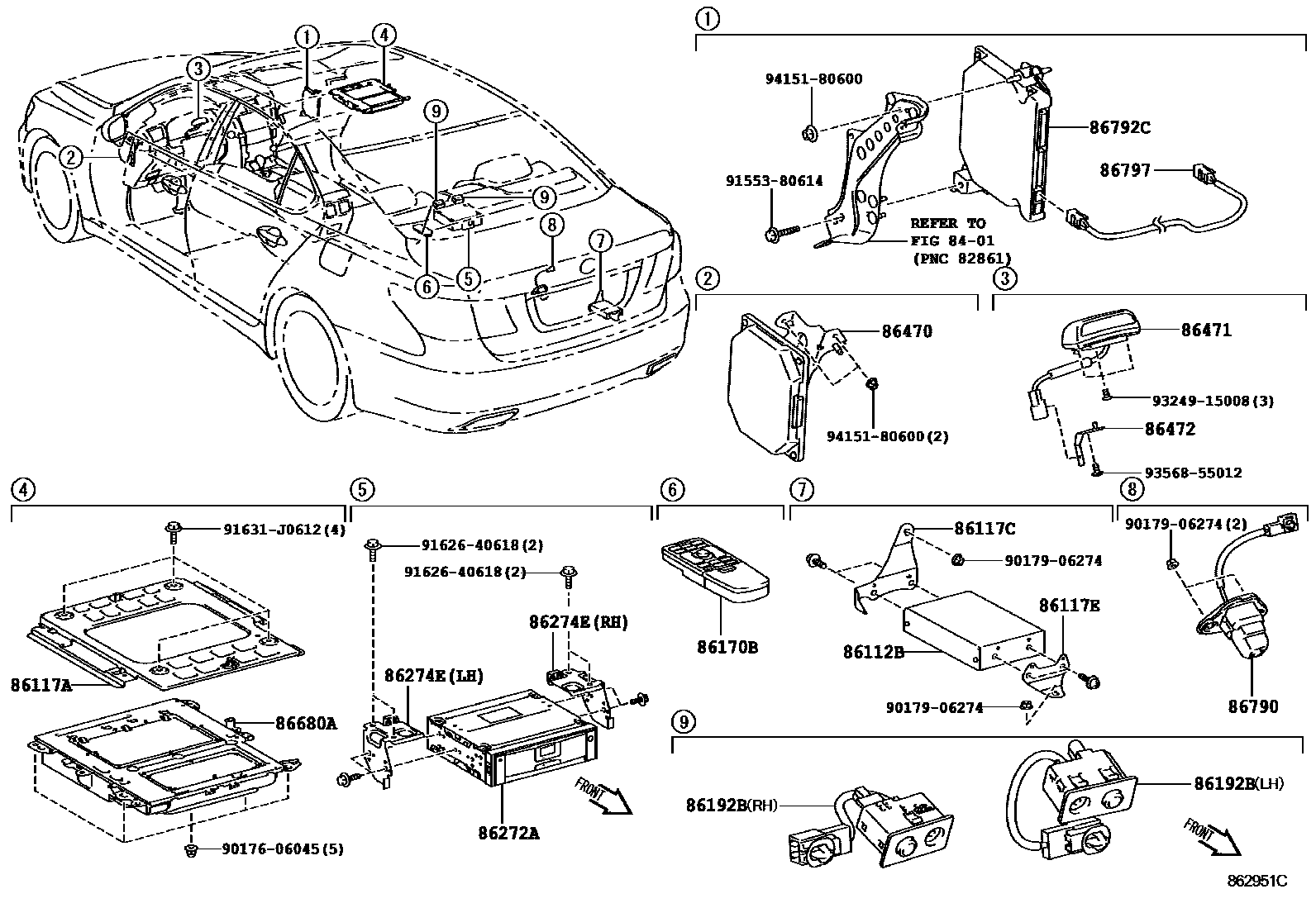

Parts diagram
8401
86112BSELECTOR, MULTI-DISPLAY
main86112-30100i200608-200909
WITH(REAR DISPLAY)
main86112-30100i200608-200909
WITH(DVD PLAYER & REAR DISPLAY)
main86112-30100i200608-200909
BEIJING SPEC&WITH(REAR DISPLAY)
main86112-30100i200608-200909
BEIJING SPEC&WITH(DVD PLAYER & REAR DISPLAY)
main86112-30100i200608-200909
CHINA(EXCEPT BEIJING) SPEC&WITH(REAR DISPLAY)
main86112-30100i200608-200909
CHINA(EXCEPT BEIJING) SPEC&WITH(DVD PLAYER & REAR DISPLAY)
86117ABRACKET, TELEVISION DISPLAY, A
main86117-50090i200608-200809
BEIJING SPEC&WITH(DVD PLAYER & REAR DISPLAY)
main86117-50090i200608-200809
CHINA(EXCEPT BEIJING) SPEC&WITH(REAR DISPLAY)
main86117-50090i200608-200809
CHINA(EXCEPT BEIJING) SPEC&WITH(DVD PLAYER & REAR DISPLAY)
main86117-50090i200608-200809
WITH(REAR DISPLAY)
main86117-50090i200608-200809
WITH(DVD PLAYER & REAR DISPLAY)
main86117-50090i200608-200809
BEIJING SPEC&WITH(REAR DISPLAY)
main86117-50090i200809-200909
MOON ROOF-WITH&WITH(REAR DISPLAY)
main86117-50090i200809-200909
MOON ROOF-WITH&WITH(DVD PLAYER & REAR DISPLAY)
86117CBRACKET, MULTI-DISPLAY CONTROLLER, NO.2
main86117-50080i200608-200909
WITH(REAR DISPLAY)
main86117-50080i200608-200909
BEIJING SPEC&WITH(REAR DISPLAY)
main86117-50080i200608-200909
BEIJING SPEC&WITH(DVD PLAYER & REAR DISPLAY)
main86117-50080i200608-200909
CHINA(EXCEPT BEIJING) SPEC&WITH(REAR DISPLAY)
main86117-50080i200608-200909
CHINA(EXCEPT BEIJING) SPEC&WITH(DVD PLAYER & REAR DISPLAY)
main86117-50080i200608-200909
WITH(DVD PLAYER & REAR DISPLAY)
86117EBRACKET, MULTI-DISPLAY CONTROLLER, NO.3
main86118-50020i200608-200909
BEIJING SPEC&WITH(REAR DISPLAY)
main86118-50020i200608-200909
CHINA(EXCEPT BEIJING) SPEC&WITH(DVD PLAYER & REAR DISPLAY)
main86118-50020i200608-200909
WITH(REAR DISPLAY)
main86118-50020i200608-200909
WITH(DVD PLAYER & REAR DISPLAY)
main86118-50020i200608-200909
BEIJING SPEC&WITH(DVD PLAYER & REAR DISPLAY)
main86118-50020i200608-200909
CHINA(EXCEPT BEIJING) SPEC&WITH(REAR DISPLAY)
86170BSWITCH & VOLUME ASSY, TELEVISION
main86170-50190i200608-200707
WITH(REAR DISPLAY)
sub86170-50230
main86170-50190i200608-200707
WITH(DVD PLAYER & REAR DISPLAY)
sub86170-50230
main86170-50230i200708-200909
WITH(REAR DISPLAY)
main86170-50230i200708-200909
WITH(DVD PLAYER & REAR DISPLAY)
main86170-50270i201009
main86170-50280i200909-201009
SINGAPOLE/BRUNEI SPEC&WITH(REAR DISPLAY:ROOF)
main86170-50280i200909-201009
WITH(REAR DISPLAY:ROOF)&WITH(EMV) & WITHOUT(NAVIGATION)
main86170-50280i200909-201009
WITH(DVD PLAYER & REAR DISPLAY:ROOF)&WITH(EMV) & WITHOUT(NAVIGATION)
main86170-50280i200909-201009
MALAYSIA SPEC&WITH(REAR DISPLAY:ROOF)
main86170-50280i200909-201009
THAILAND/INDONESIA SPEC&WITH(REAR DISPLAY:ROOF)
86192BTERMINAL, HEADPHONE
main86192-50010i200608-200809
REAR SEAT ADJUSTER-OTTOMAN&WITH(DVD PLAYER & REAR DISPLAY),RH
main86192-50010i200608-201209
RH
main86192-50010i200608-200809
REAR SEAT ADJUSTER-OTTOMAN&WITH(REAR DISPLAY),RH
main86192-50010i200809-200909
REAR SEAT ADJUSTER-W(OTTOMAN)&WITH(REAR DISPLAY),RH
main86192-50010i200809-200909
REAR SEAT ADJUSTER-W(OTTOMAN)&WITH(DVD PLAYER & REAR DISPLAY),RH
main86192-50010i200909-201209
REAR ARMREST-W(OTTOMAN:4SEAT+*RSE+ACC SOCKET:DC12V)&WITH(DVD PLAYER & REAR DISPLAY:ROOF),RH
main86192-50010i200909-201209
REAR ARMREST-W(OTTOMAN:4SEAT+*RSE+CIGARETTE LIGHTER)&WITH(DVD PLAYER & REAR DISPLAY:ROOF),RH
main86192-50020i200608-201209
LH
main86192-50020i200809-200909
REAR SEAT ADJUSTER-W(OTTOMAN)&WITH(REAR DISPLAY),LH
main86192-50020i200809-200909
REAR SEAT ADJUSTER-W(OTTOMAN)&WITH(DVD PLAYER & REAR DISPLAY),LH
main86192-50020i200608-200809
REAR SEAT ADJUSTER-OTTOMAN&WITH(REAR DISPLAY),LH
main86192-50020i200608-200809
REAR SEAT ADJUSTER-OTTOMAN&WITH(DVD PLAYER & REAR DISPLAY),LH
main86192-50020i200909-201209
REAR ARMREST-W(OTTOMAN:4SEAT+*RSE+ACC SOCKET:DC12V)&WITH(DVD PLAYER & REAR DISPLAY:ROOF),LH
main86192-50020i200909-201209
REAR ARMREST-W(OTTOMAN:4SEAT+*RSE+CIGARETTE LIGHTER)&WITH(DVD PLAYER & REAR DISPLAY:ROOF),LH
86272ACONTROLLER, DISC PLAYER
main86272-50030i200809-200909
REAR SEAT ADJUSTER-W(OTTOMAN)&WITH(DVD PLAYER & REAR DISPLAY)
main86272-50030i200608-200809
REAR SEAT ADJUSTER-OTTOMAN&WITH(DVD PLAYER & REAR DISPLAY)
86274EBRACKET, DISC PLAYER
main86274-50260i200608-200909
LH
main86274-50260i200909
BRAZIL SPEC&WITH(DVD PLAYER & REAR DISPLAY:ROOF),LH
main86274-50260i200909
SOUTH AMERICA SPEC&WITH(DVD PLAYER & REAR DISPLAY:ROOF),LH
main86274-50260i200909
WITH(DVD PLAYER & REAR DISPLAY:ROOF),LH
main86274-50260i200909
RUSSIA SPEC&AUDIO-DVD CHANGER,MARK LEVINSON&WITH(DVD PLAYER & REAR DISPLAY:ROOF),LH
main86274-50260i200909
KAZAKHSTAN SPEC&AUDIO-DVD CHANGER,MARK LEVINSON&WITH(DVD PLAYER & REAR DISPLAY:ROOF),LH
main86274-50260i200909
FORMOSA SPEC&AUDIO-DVD CHANGER,MARK LEVINSON&WITH(DVD PLAYER & REAR DISPLAY:ROOF),LH
main86274-50260i200909
AUDIO-DVD CHANGER,MARK LEVINSON&WITH(DVD PLAYER & REAR DISPLAY:ROOF),LH
main86274-50260i200809-200909
FORMOSA SPEC&REAR SEAT ADJUSTER-W(OTTOMAN)&WITH(DVD PLAYER & REAR DISPLAY),LH
main86274-50260i200809-200909
CHINA(EXCEPT BEIJING) SPEC&REAR SEAT ADJUSTER-W(OTTOMAN)&WITH(DVD PLAYER & REAR DISPLAY),LH
main86274-50260i200809-200909
REAR SEAT ADJUSTER-W(OTTOMAN)&WITH(DVD PLAYER & REAR DISPLAY),LH
main86274-50260i200809-200909
RUSSIA SPEC&REAR SEAT ADJUSTER-W(OTTOMAN)&WITH(DVD PLAYER & REAR DISPLAY),LH
main86274-50260i200809-200909
PHILIPPINES SPEC&REAR SEAT ADJUSTER-W(OTTOMAN)&WITH(DVD PLAYER & REAR DISPLAY),LH
main86274-50260i200809-200909
BEIJING SPEC&REAR SEAT ADJUSTER-W(OTTOMAN)&WITH(DVD PLAYER & REAR DISPLAY),LH
main86274-50260i200608-200809
REAR SEAT ADJUSTER-OTTOMAN&WITH(DVD PLAYER & REAR DISPLAY),LH
main86274-50260i200608-200809
PHILIPPINES SPEC&REAR SEAT ADJUSTER-OTTOMAN&WITH(DVD PLAYER & REAR DISPLAY),LH
main86274-50260i200608-200809
BEIJING SPEC&REAR SEAT ADJUSTER-OTTOMAN&WITH(DVD PLAYER & REAR DISPLAY),LH
main86274-50260i200608-200809
FORMOSA SPEC&REAR SEAT ADJUSTER-OTTOMAN&WITH(DVD PLAYER & REAR DISPLAY),LH
main86274-50260i200608-200809
CHINA(EXCEPT BEIJING) SPEC&REAR SEAT ADJUSTER-OTTOMAN&WITH(DVD PLAYER & REAR DISPLAY),LH
main86274-50270i200909
WITH(DVD PLAYER & REAR DISPLAY:ROOF),RH
main86274-50270i200608-200909
RH
main86274-50270i200608-200809
FORMOSA SPEC&REAR SEAT ADJUSTER-OTTOMAN&WITH(DVD PLAYER & REAR DISPLAY),RH
main86274-50270i200608-200809
CHINA(EXCEPT BEIJING) SPEC&REAR SEAT ADJUSTER-OTTOMAN&WITH(DVD PLAYER & REAR DISPLAY),RH
main86274-50270i200608-200809
REAR SEAT ADJUSTER-OTTOMAN&WITH(DVD PLAYER & REAR DISPLAY),RH
main86274-50270i200608-200809
PHILIPPINES SPEC&REAR SEAT ADJUSTER-OTTOMAN&WITH(DVD PLAYER & REAR DISPLAY),RH
main86274-50270i200608-200809
BEIJING SPEC&REAR SEAT ADJUSTER-OTTOMAN&WITH(DVD PLAYER & REAR DISPLAY),RH
main86274-50270i200809-200909
PHILIPPINES SPEC&REAR SEAT ADJUSTER-W(OTTOMAN)&WITH(DVD PLAYER & REAR DISPLAY),RH
main86274-50270i200809-200909
BEIJING SPEC&REAR SEAT ADJUSTER-W(OTTOMAN)&WITH(DVD PLAYER & REAR DISPLAY),RH
main86274-50270i200809-200909
FORMOSA SPEC&REAR SEAT ADJUSTER-W(OTTOMAN)&WITH(DVD PLAYER & REAR DISPLAY),RH
main86274-50270i200809-200909
CHINA(EXCEPT BEIJING) SPEC&REAR SEAT ADJUSTER-W(OTTOMAN)&WITH(DVD PLAYER & REAR DISPLAY),RH
main86274-50270i200809-200909
REAR SEAT ADJUSTER-W(OTTOMAN)&WITH(DVD PLAYER & REAR DISPLAY),RH
main86274-50270i200809-200909
RUSSIA SPEC&REAR SEAT ADJUSTER-W(OTTOMAN)&WITH(DVD PLAYER & REAR DISPLAY),RH
main86274-50270i200909
BRAZIL SPEC&WITH(DVD PLAYER & REAR DISPLAY:ROOF),RH
main86274-50270i200909
SOUTH AMERICA SPEC&WITH(DVD PLAYER & REAR DISPLAY:ROOF),RH
main86274-50270i200909
RUSSIA SPEC&AUDIO-DVD CHANGER,MARK LEVINSON&WITH(DVD PLAYER & REAR DISPLAY:ROOF),RH
main86274-50270i200909
KAZAKHSTAN SPEC&AUDIO-DVD CHANGER,MARK LEVINSON&WITH(DVD PLAYER & REAR DISPLAY:ROOF),RH
main86274-50270i200909
FORMOSA SPEC&AUDIO-DVD CHANGER,MARK LEVINSON&WITH(DVD PLAYER & REAR DISPLAY:ROOF),RH
main86274-50270i200909
AUDIO-DVD CHANGER,MARK LEVINSON&WITH(DVD PLAYER & REAR DISPLAY:ROOF),RH
86470COMPUTER ASSY, DRIVER MONITOR
main86470-50010
main86470-50020
main86470-50030
main86470-50040
86471CAMERA, DRIVER MONITOR
main86471-50010
86472BRACKET, DRIVER MONITOR
main86472-50010
86680ADISPLAY ASSY, TELEVISION
main86680-50080-A0i200608-200909
DENSO,WITH(DVD PLAYER & REAR DISPLAY),IVORY,TRIM00
sub86680-50081
main86680-50080-A0i200608-200909
DENSO,WITH(REAR DISPLAY),IVORY,TRIM00
sub86680-50081
main86680-50080-A0i200608-200909
DENSO,IVORY,TRIM00
sub86680-50081
main86680-50080-A1i200608-200909
DENSO,MELLOW WHITE,TRIM01
sub86680-50081
main86680-50080-A1i200608-200909
DENSO,WITH(REAR DISPLAY),MELLOW WHITE,TRIM01
sub86680-50081
main86680-50080-A1i200608-200909
DENSO,WITH(DVD PLAYER & REAR DISPLAY),MELLOW WHITE,TRIM01
sub86680-50081
main86680-50080-B0i200608-200909
DENSO,WITH(REAR DISPLAY),LT.GRAY,TRIM1#,2#
sub86680-50081
main86680-50080-B0i200608-200909
DENSO,WITH(DVD PLAYER & REAR DISPLAY),LT.GRAY,TRIM1#,2#
sub86680-50081
main86680-50080-B0i200608-200909
DENSO,LT.GRAY,TRIM1#,2#
sub86680-50081
main86680-50120-A0i200909-201209
PANASONIC,WITH(DVD PLAYER & REAR DISPLAY:ROOF),MELLOW WHITE,TRIM01,07
sub86680-50121
main86680-50120-A0i200909-201209
PANASONIC,MELLOW WHITE,TRIM01,07
sub86680-50121
main86680-50120-A0i200909-201209
PANASONIC,MOON ROOF-WITH&WITH(REAR DISPLAY:ROOF),MELLOW WHITE,TRIM01,07
sub86680-50121
main86680-50120-A0i200909-201209
PANASONIC,MOON ROOF-WITH&WITH(DVD PLAYER & REAR DISPLAY:ROOF),MELLOW WHITE,TRIM01,07
sub86680-50121
main86680-50120-A0i200909-201209
PANASONIC,WITH(REAR DISPLAY:ROOF),MELLOW WHITE,TRIM01,07
sub86680-50121
main86680-50120-A1i200909-201209
PANASONIC,WITH(DVD PLAYER & REAR DISPLAY:ROOF),IVORY,TRIM00,06
sub86680-50121
main86680-50120-A1i200909-201209
PANASONIC,IVORY,TRIM00,06
sub86680-50121
main86680-50120-A1i200909-201209
PANASONIC,MOON ROOF-WITH&WITH(REAR DISPLAY:ROOF),IVORY,TRIM00,06
sub86680-50121
main86680-50120-A1i200909-201209
PANASONIC,MOON ROOF-WITH&WITH(DVD PLAYER & REAR DISPLAY:ROOF),IVORY,TRIM00,06
sub86680-50121
main86680-50120-A1i200909-201209
PANASONIC,WITH(REAR DISPLAY:ROOF),IVORY,TRIM00,06
sub86680-50121
main86680-50120-B0i200909-201209
PANASONIC,LT.GRAY,TRIM1#,2#
sub86680-50121
main86680-50120-B0i200909-201209
PANASONIC,MOON ROOF-WITH&WITH(REAR DISPLAY:ROOF),LT.GRAY,TRIM1#,2#
sub86680-50121
main86680-50120-B0i200909-201209
PANASONIC,MOON ROOF-WITH&WITH(DVD PLAYER & REAR DISPLAY:ROOF),LT.GRAY,TRIM1#,2#
sub86680-50121
main86680-50120-B0i200909-201209
PANASONIC,WITH(REAR DISPLAY:ROOF),LT.GRAY,TRIM1#,2#
sub86680-50121
main86680-50120-B0i200909-201209
PANASONIC,WITH(DVD PLAYER & REAR DISPLAY:ROOF),LT.GRAY,TRIM1#,2#
sub86680-50121
86790CAMERA ASSY, TELEVISION
main86790-50020i200608-200909
sub86790-50030
main86790-50021i200909
86792CCOMPUTER, PARKING ASSIST
main86792-50110i200608-200707
RUSSIA SPEC&BACK MONITOR (REAR TELEVISION CAMERA)-WITHOUT
sub86792-50170
main86792-50110i200608-200707
BEIJING SPEC
sub86792-50170
main86792-50110i200608-200707
BEIJING SPEC&CLEARANCE & BACK SONAR-WITH
sub86792-50170
main86792-50110i200608-200707
FORMOSA SPEC&BACK MONITOR (REAR TELEVISION CAMERA)-WITH
sub86792-50170
main86792-50110i200608-200707
CHINA(EXCEPT BEIJING) SPEC
sub86792-50170
main86792-50110i200608-200707
CHINA(EXCEPT BEIJING) SPEC&CLEARANCE & BACK SONAR-WITH
sub86792-50170
main86792-50110i200608-200707
EMV & NAVIGATION SYSTEM-WITH(EMV) & WITHOUT(NAVIGATION )
sub86792-50170
main86792-50110i200608-200707
CLEARANCE & BACK SONAR-WITH
sub86792-50170
main86792-50110i200608-200707
BACK MONITOR (REAR TELEVISION CAMERA)-WITH
sub86792-50170
main86792-50110i200608-200707
EMV & NAVIGATION SYSTEM-WITH(EMV) & WITHOUT(NAVIGATION )&BACK MONITOR (REAR TELEVISION CAMERA)-WITH
sub86792-50170
main86792-50110i200608-200707
EMV & NAVIGATION SYSTEM-WITH(EMV) & WITHOUT(NAVIGATION )&BACK MONITOR (REAR TELEVISION CAMERA)-WITH(INTELLIGENT PARKING ASSIST)
sub86792-50170
main86792-50120i200608-200707
RUSSIA SPEC&CLEARANCE & BACK SONAR-WITH&BACK MONITOR (REAR TELEVISION CAMERA)-WITHOUT
sub86792-50180
main86792-50120i200608-200707
RUSSIA SPEC&BACK MONITOR (REAR TELEVISION CAMERA)-WITHOUT
sub86792-50180
main86792-50120i200608-200707
NEW ZEALAND SPEC&CLEARANCE & BACK SONAR-WITH&BACK MONITOR (REAR TELEVISION CAMERA)-WITH
sub86792-50180
main86792-50120i200608-200707
NEW ZEALAND SPEC&BACK MONITOR (REAR TELEVISION CAMERA)-WITH
sub86792-50180
main86792-50120i200608-200707
BEIJING SPEC
sub86792-50180
main86792-50120i200608-200707
HONG KONG SPEC&CLEARANCE & BACK SONAR-WITH&BACK MONITOR (REAR TELEVISION CAMERA)-WITH
sub86792-50180
main86792-50120i200608-200707
HONG KONG SPEC&BACK MONITOR (REAR TELEVISION CAMERA)-WITH
sub86792-50180
main86792-50120i200608-200707
SOUTH AFRICA SPEC&CLEARANCE & BACK SONAR-WITH&BACK MONITOR (REAR TELEVISION CAMERA)-WITH
sub86792-50180
main86792-50120i200608-200707
SOUTH AFRICA SPEC&BACK MONITOR (REAR TELEVISION CAMERA)-WITH
sub86792-50180
main86792-50120i200608-200707
THAILAND SPEC&CLEARANCE & BACK SONAR-WITH&BACK MONITOR (REAR TELEVISION CAMERA)-WITH
sub86792-50180
main86792-50120i200608-200707
THAILAND SPEC&BACK MONITOR (REAR TELEVISION CAMERA)-WITH
sub86792-50180
main86792-50120i200608-200707
SINGAPORE SPEC&CLEARANCE & BACK SONAR-WITH&BACK MONITOR (REAR TELEVISION CAMERA)-WITH
sub86792-50180
main86792-50120i200608-200707
SINGAPORE SPEC&BACK MONITOR (REAR TELEVISION CAMERA)-WITH
sub86792-50180
main86792-50120i200608-200707
FORMOSA SPEC&CLEARANCE & BACK SONAR-WITH&BACK MONITOR (REAR TELEVISION CAMERA)-WITH
sub86792-50180
main86792-50120i200608-200707
FORMOSA SPEC&BACK MONITOR (REAR TELEVISION CAMERA)-WITH
sub86792-50180
main86792-50120i200608-200707
CHINA(EXCEPT BEIJING) SPEC
sub86792-50180
main86792-50120i200608-200707
EMV & NAVIGATION SYSTEM-WITH(EMV) & WITHOUT(NAVIGATION )
sub86792-50180
main86792-50120i200608-200707
CLEARANCE & BACK SONAR-WITH&BACK MONITOR (REAR TELEVISION CAMERA)-WITH
sub86792-50180
main86792-50120i200608-200707
BACK MONITOR (REAR TELEVISION CAMERA)-WITH
sub86792-50180
main86792-50120i200608-200707
EMV & NAVIGATION SYSTEM-WITH(EMV) & WITHOUT(NAVIGATION )&CLEARANCE & BACK SONAR-WITH
sub86792-50180
main86792-50120i200608-200707
EMV & NAVIGATION SYSTEM-WITH(EMV) & WITHOUT(NAVIGATION )&CLEARANCE & BACK SONAR-WITH&BACK MONITOR (REAR TELEVISION CAMERA)-WITH
sub86792-50180
main86792-50120i200608-200707
EMV & NAVIGATION SYSTEM-WITH(EMV) & WITHOUT(NAVIGATION )&CLEARANCE & BACK SONAR-WITH&BACK MONITOR (REAR TELEVISION CAMERA)-WITH(INTELLIGENT PARKING ASSIST)
sub86792-50180
main86792-50120i200608-200707
EMV & NAVIGATION SYSTEM-WITH(EMV) & WITHOUT(NAVIGATION )&BACK MONITOR (REAR TELEVISION CAMERA)-WITH
sub86792-50180
main86792-50170i200708-200809
RUSSIA SPEC&BACK MONITOR (REAR TELEVISION CAMERA)-WITHOUT
main86792-50170i200708-200809
BEIJING SPEC
main86792-50170i200708-200809
BEIJING SPEC&CLEARANCE & BACK SONAR-WITH
main86792-50170i200708-200809
FORMOSA SPEC&BACK MONITOR (REAR TELEVISION CAMERA)-WITH
main86792-50170i200708-200809
CHINA(EXCEPT BEIJING) SPEC
main86792-50170i200708-200809
CHINA(EXCEPT BEIJING) SPEC&CLEARANCE & BACK SONAR-WITH
main86792-50170i200708-200809
EMV & NAVIGATION SYSTEM-WITH(EMV) & WITHOUT(NAVIGATION )
main86792-50170i200708-200809
CLEARANCE & BACK SONAR-WITH
main86792-50170i200708-200809
BACK MONITOR (REAR TELEVISION CAMERA)-WITH
main86792-50170i200708-200809
EMV & NAVIGATION SYSTEM-WITH(EMV) & WITHOUT(NAVIGATION )&BACK MONITOR (REAR TELEVISION CAMERA)-WITH
main86792-50170i200708-200809
EMV & NAVIGATION SYSTEM-WITH(EMV) & WITHOUT(NAVIGATION )&BACK MONITOR (REAR TELEVISION CAMERA)-WITH(INTELLIGENT PARKING ASSIST)
main86792-50180i200708-200809
BEIJING SPEC
main86792-50180i200708-200809
RUSSIA SPEC&CLEARANCE & BACK SONAR-WITH&BACK MONITOR (REAR TELEVISION CAMERA)-WITHOUT
main86792-50180i200708-200809
RUSSIA SPEC&BACK MONITOR (REAR TELEVISION CAMERA)-WITHOUT
main86792-50180i200708-200809
NEW ZEALAND SPEC&CLEARANCE & BACK SONAR-WITH&BACK MONITOR (REAR TELEVISION CAMERA)-WITH
main86792-50180i200708-200809
NEW ZEALAND SPEC&BACK MONITOR (REAR TELEVISION CAMERA)-WITH
main86792-50180i200708-200809
HONG KONG SPEC&CLEARANCE & BACK SONAR-WITH&BACK MONITOR (REAR TELEVISION CAMERA)-WITH
main86792-50180i200708-200809
HONG KONG SPEC&BACK MONITOR (REAR TELEVISION CAMERA)-WITH
main86792-50180i200708-200809
SOUTH AFRICA SPEC&CLEARANCE & BACK SONAR-WITH&BACK MONITOR (REAR TELEVISION CAMERA)-WITH
main86792-50180i200708-200809
SOUTH AFRICA SPEC&BACK MONITOR (REAR TELEVISION CAMERA)-WITH
main86792-50180i200708-200809
THAILAND SPEC&CLEARANCE & BACK SONAR-WITH&BACK MONITOR (REAR TELEVISION CAMERA)-WITH
main86792-50180i200708-200809
THAILAND SPEC&BACK MONITOR (REAR TELEVISION CAMERA)-WITH
main86792-50180i200708-200809
SINGAPORE SPEC&CLEARANCE & BACK SONAR-WITH&BACK MONITOR (REAR TELEVISION CAMERA)-WITH
main86792-50180i200708-200809
SINGAPORE SPEC&BACK MONITOR (REAR TELEVISION CAMERA)-WITH
main86792-50180i200708-200809
FORMOSA SPEC&CLEARANCE & BACK SONAR-WITH&BACK MONITOR (REAR TELEVISION CAMERA)-WITH
main86792-50180i200708-200809
FORMOSA SPEC&BACK MONITOR (REAR TELEVISION CAMERA)-WITH
main86792-50180i200708-200809
CHINA(EXCEPT BEIJING) SPEC
main86792-50180i200708-200809
EMV & NAVIGATION SYSTEM-WITH(EMV) & WITHOUT(NAVIGATION )
main86792-50180i200708-200809
CLEARANCE & BACK SONAR-WITH&BACK MONITOR (REAR TELEVISION CAMERA)-WITH
main86792-50180i200708-200809
BACK MONITOR (REAR TELEVISION CAMERA)-WITH
main86792-50180i200708-200809
EMV & NAVIGATION SYSTEM-WITH(EMV) & WITHOUT(NAVIGATION )&CLEARANCE & BACK SONAR-WITH
main86792-50180i200708-200809
EMV & NAVIGATION SYSTEM-WITH(EMV) & WITHOUT(NAVIGATION )&CLEARANCE & BACK SONAR-WITH&BACK MONITOR (REAR TELEVISION CAMERA)-WITH
main86792-50180i200708-200809
EMV & NAVIGATION SYSTEM-WITH(EMV) & WITHOUT(NAVIGATION )&CLEARANCE & BACK SONAR-WITH&BACK MONITOR (REAR TELEVISION CAMERA)-WITH(INTELLIGENT PARKING ASSIST)
main86792-50180i200708-200809
EMV & NAVIGATION SYSTEM-WITH(EMV) & WITHOUT(NAVIGATION )&BACK MONITOR (REAR TELEVISION CAMERA)-WITH
main86792-50250i200809-200909
CHINA(EXCEPT BEIJING) SPEC&BACK MONITOR(REAR TELEVISION CAMERA)-WITH (GUIDE)
main86792-50250i200809-200909
WITH(EMV) & WITHOUT(NAVIGATION )&BACK MONITOR(REAR TELEVISION CAMERA)-WITH
main86792-50250i200809-200909
CLEARANCE & BACK SONAR-WITH
main86792-50250i200809-200909
BEIJING SPEC&CLEARANCE & BACK SONAR-WITH&BACK MONITOR(REAR TELEVISION CAMERA)-WITH(GUIDE)
main86792-50250i200809-200909
BEIJING SPEC&BACK MONITOR(REAR TELEVISION CAMERA)-WITH (GUIDE)
main86792-50250i200809-200909
CHINA(EXCEPT BEIJING) SPEC&CLEARANCE & BACK SONAR-WITH&BACK MONITOR(REAR TELEVISION CAMERA)-WITH (GUIDE)
main86792-50260i200809-200909
HONG KONG SPEC&BACK MONITOR(REAR TELEVISION CAMERA)-WITH
main86792-50260i200809-200909
THAILAND SPEC&CLEARANCE & BACK SONAR-WITH&BACK MONITOR(REAR TELEVISION CAMERA)-WITH
main86792-50260i200809-200909
THAILAND SPEC&BACK MONITOR(REAR TELEVISION CAMERA)-WITH
main86792-50260i200809-200909
SINGAPORE SPEC&CLEARANCE & BACK SONAR-WITH&BACK MONITOR(REAR TELEVISION CAMERA)-WITH
main86792-50260i200809-200909
SINGAPORE SPEC&BACK MONITOR(REAR TELEVISION CAMERA)-WITH
main86792-50260i200809-200909
CHINA(EXCEPT BEIJING) SPEC&BACK MONITOR(REAR TELEVISION CAMERA)-WITH (GUIDE)
main86792-50260i200809-200909
WITH(EMV) & WITHOUT(NAVIGATION )&CLEARANCE & BACK SONAR-WITH&BACK MONITOR(REAR TELEVISION CAMERA)-WITH
main86792-50260i200809-200909
WITH(EMV) & WITHOUT(NAVIGATION )&BACK MONITOR(REAR TELEVISION CAMERA)-WITH
main86792-50260i200809-200909
MALAYSIA SPEC&CLEARANCE & BACK SONAR-WITH&BACK MONITOR(REAR TELEVISION CAMERA)-WITH
main86792-50260i200809-200909
MALAYSIA SPEC&BACK MONITOR(REAR TELEVISION CAMERA)-WITH
main86792-50260i200809-200909
BEIJING SPEC&BACK MONITOR(REAR TELEVISION CAMERA)-WITH (GUIDE)
main86792-50260i200809-200909
HONG KONG SPEC&CLEARANCE & BACK SONAR-WITH&BACK MONITOR(REAR TELEVISION CAMERA)-WITH
main86792-50280i201009-201209
main86792-50290i200909-201009
THAILAND/INDONESIA SPEC&BACK MONITOR (REAR TELEVISION CAMERA)-WITH(INTELLIGENT PARKING ASSIST)
main86792-50290i200909-201009
SINGAPOLE/BRUNEI SPEC&BACK MONITOR (REAR TELEVISION CAMERA)-WITH(INTELLIGENT PARKING ASSIST)
main86792-50290i200909-201009
WITH(EMV) & WITHOUT(NAVIGATION)&BACK MONITOR (REAR TELEVISION CAMERA)-WITH(INTELLIGENT PARKING ASSIST)
main86792-50290i200909-201009
BACK MONITOR (REAR TELEVISION CAMERA)-WITH(INTELLIGENT PARKING ASSIST)
main86792-50290i200909-201009
MALAYSIA SPEC&BACK MONITOR (REAR TELEVISION CAMERA)-WITH(INTELLIGENT PARKING ASSIST)
main86792-50290i200909-201209
main86792-50300i200909-201008
MALAYSIA SPEC&BACK MONITOR (REAR TELEVISION CAMERA)-WITH
sub86792-50301
main86792-50300i200909-201008
BEIJING SPEC&SUSPENSION-SPORT AIR SUSPENTION&BACK MONITOR (REAR TELEVISION CAMERA)-WITH(GUIDE)
sub86792-50301
main86792-50300i200909-201008
HONG KONG SPEC&CLEARANCE & BACK SONAR-WITH&BACK MONITOR (REAR TELEVISION CAMERA)-WITH
sub86792-50301
main86792-50300i200909-201008
HONG KONG SPEC&BACK MONITOR (REAR TELEVISION CAMERA)-WITH
sub86792-50301
main86792-50300i200909-201008
THAILAND/INDONESIA SPEC&CLEARANCE & BACK SONAR-WITH&BACK MONITOR (REAR TELEVISIONCAMERA)-WITH
sub86792-50301
main86792-50300i200909-201008
THAILAND/INDONESIA SPEC&BACK MONITOR (REAR TELEVISION CAMERA)-WITH
sub86792-50301
main86792-50300i200909-201008
KAZAKHSTAN SPEC&BACK MONITOR (REAR TELEVISION CAMERA)-WITH
sub86792-50301
main86792-50300i200909-201008
SINGAPOLE/BRUNEI SPEC&CLEARANCE & BACK SONAR-WITH&BACK MONITOR (REAR TELEVISION CAMERA)-WITH
sub86792-50301
main86792-50300i200909-201008
SINGAPOLE/BRUNEI SPEC&BACK MONITOR (REAR TELEVISION CAMERA)-WITH
sub86792-50301
main86792-50300i200909-201008
CHINA(EXCEPT BEIJING) SPEC&SUSPENSION-SPORT AIR SUSPENTION&BACK MONITOR (REAR TELEVISION CAMERA)-WITH(GUIDE)
sub86792-50301
main86792-50300i200909-201008
ISRAEL SPEC&BACK MONITOR (REAR TELEVISION CAMERA)-WITH
sub86792-50301
main86792-50300i200909-201008
WITH(EMV) & WITHOUT(NAVIGATION)&BACK MONITOR (REAR TELEVISION CAMERA)-WITH
sub86792-50301
main86792-50300i200909-201008
CLEARANCE & BACK SONAR-WITH&BACK MONITOR (REAR TELEVISION CAMERA)-WITH
sub86792-50301
main86792-50300i200909-201008
BACK MONITOR (REAR TELEVISION CAMERA)-WITH
sub86792-50301
main86792-50300i200909-201008
MALAYSIA SPEC&SUSPENSION-COIL SPRING&BACK MONITOR (REAR TELEVISION CAMERA)-WITH
sub86792-50301
main86792-50300i200909-201008
THAILAND/INDONESIA SPEC&SUSPENSION-COIL SPRING&BACK MONITOR (REAR TELEVISION CAMERA)-WITH
sub86792-50301
main86792-50300i200909-201008
SINGAPOLE/BRUNEI SPEC&SUSPENSION-COIL SPRING&BACK MONITOR (REAR TELEVISION CAMERA)-WITH
sub86792-50301
main86792-50300i200909-201008
SINGAPOLE/BRUNEI SPEC&SUSPENSION-COIL SPRING&WITH(EMV) & WITHOUT(NAVIGATION)&BACKMONITOR (REAR TELEVISION CAMERA)-WITH
sub86792-50301
main86792-50300i200909-201008
MALAYSIA SPEC&CLEARANCE & BACK SONAR-WITH&BACK MONITOR (REAR TELEVISION CAMERA)-WITH
sub86792-50301
main86792-50301i201009-201209
MALAYSIA SPEC&CLEARANCE & BACK SONAR-WITH&BACK MONITOR (REAR TELEVISION CAMERA)-WITH
main86792-50301i201009-201209
MALAYSIA SPEC&BACK MONITOR (REAR TELEVISION CAMERA)-WITH
main86792-50301i201009-201209
HONG KONG SPEC&CLEARANCE & BACK SONAR-WITH&BACK MONITOR (REAR TELEVISION CAMERA)-WITH
main86792-50301i201009-201209
HONG KONG SPEC&BACK MONITOR (REAR TELEVISION CAMERA)-WITH
main86792-50301i201009-201209
THAILAND/INDONESIA SPEC&CLEARANCE & BACK SONAR-WITH&BACK MONITOR (REAR TELEVISIONCAMERA)-WITH
main86792-50301i201009-201209
THAILAND/INDONESIA SPEC&BACK MONITOR (REAR TELEVISION CAMERA)-WITH
main86792-50301i201009-201209
KAZAKHSTAN SPEC&BACK MONITOR (REAR TELEVISION CAMERA)-WITH
main86792-50301i201009-201209
SINGAPOLE/BRUNEI SPEC&CLEARANCE & BACK SONAR-WITH&BACK MONITOR (REAR TELEVISION CAMERA)-WITH
main86792-50301i201009-201209
SINGAPOLE/BRUNEI SPEC&BACK MONITOR (REAR TELEVISION CAMERA)-WITH
main86792-50301i201009-201209
ISRAEL SPEC&BACK MONITOR (REAR TELEVISION CAMERA)-WITH
main86792-50301i201009-201209
WITH(EMV) & WITHOUT(NAVIGATION)&BACK MONITOR (REAR TELEVISION CAMERA)-WITH
main86792-50301i201009-201209
CLEARANCE & BACK SONAR-WITH&BACK MONITOR (REAR TELEVISION CAMERA)-WITH
main86792-50301i201009-201209
BACK MONITOR (REAR TELEVISION CAMERA)-WITH
main86792-50301i201009-201209
MALAYSIA SPEC&SUSPENSION-COIL SPRING&BACK MONITOR (REAR TELEVISION CAMERA)-WITH
main86792-50301i201009-201209
THAILAND/INDONESIA SPEC&SUSPENSION-COIL SPRING&BACK MONITOR (REAR TELEVISION CAMERA)-WITH
main86792-50301i201009-201209
SINGAPOLE/BRUNEI SPEC&SUSPENSION-COIL SPRING&BACK MONITOR (REAR TELEVISION CAMERA)-WITH
main86792-50301i201009-201209
SINGAPOLE/BRUNEI SPEC&SUSPENSION-COIL SPRING&WITH(EMV) & WITHOUT(NAVIGATION)&BACKMONITOR (REAR TELEVISION CAMERA)-WITH
86797WIRE, TELEVISION CAMERA, NO.2
main86797-50030i200608-200809
BACK MONITOR (REAR TELEVISION CAMERA)-WITH
main86797-50030i200608-200809
RUSSIA SPEC&CLEARANCE & BACK SONAR-WITH&BACK MONITOR (REAR TELEVISION CAMERA)-WITHOUT
main86797-50030i200608-200809
RUSSIA SPEC&BACK MONITOR (REAR TELEVISION CAMERA)-WITHOUT
main86797-50030i200608-200809
BEIJING SPEC
main86797-50030i200608-200809
BEIJING SPEC&CLEARANCE & BACK SONAR-WITH
main86797-50030i200608-200809
FORMOSA SPEC&CLEARANCE & BACK SONAR-WITH&BACK MONITOR (REAR TELEVISION CAMERA)-WITH
main86797-50030i200608-200809
FORMOSA SPEC&BACK MONITOR (REAR TELEVISION CAMERA)-WITH
main86797-50030i200608-200809
CHINA(EXCEPT BEIJING) SPEC
main86797-50030i200608-200809
CHINA(EXCEPT BEIJING) SPEC&CLEARANCE & BACK SONAR-WITH
main86797-50030i200608-200809
EMV & NAVIGATION SYSTEM-WITH(EMV) & WITHOUT(NAVIGATION )
main86797-50030i200608-200809
CLEARANCE & BACK SONAR-WITH&BACK MONITOR (REAR TELEVISION CAMERA)-WITH
main86797-50030i200608-200809
EMV & NAVIGATION SYSTEM-WITH(EMV) & WITHOUT(NAVIGATION )&CLEARANCE & BACK SONAR-WITH
main86797-50030i200608-200809
EMV & NAVIGATION SYSTEM-WITH(EMV) & WITHOUT(NAVIGATION )&CLEARANCE & BACK SONAR-WITH&BACK MONITOR (REAR TELEVISION CAMERA)-WITH
main86797-50030i200608-200809
EMV & NAVIGATION SYSTEM-WITH(EMV) & WITHOUT(NAVIGATION )&CLEARANCE & BACK SONAR-WITH&BACK MONITOR (REAR TELEVISION CAMERA)-WITH(INTELLIGENT PARKING ASSIST)
main86797-50030i200608-200809
EMV & NAVIGATION SYSTEM-WITH(EMV) & WITHOUT(NAVIGATION )&BACK MONITOR (REAR TELEVISION CAMERA)-WITH
main86797-50030i200608-200809
EMV & NAVIGATION SYSTEM-WITH(EMV) & WITHOUT(NAVIGATION )&BACK MONITOR (REAR TELEVISION CAMERA)-WITH(INTELLIGENT PARKING ASSIST)
main86797-50030i200809-200909
BEIJING SPEC&CLEARANCE & BACK SONAR-WITH&BACK MONITOR(REAR TELEVISION CAMERA)-WITH(GUIDE)
main86797-50030i200809-200909
BEIJING SPEC&CLEARANCE & BACK SONAR-WITH&BACK MONITOR(REAR TELEVISION CAMERA)-WITH(INTELLIGENT PARKING ASSIST)
main86797-50030i200809-200909
BEIJING SPEC&BACK MONITOR(REAR TELEVISION CAMERA)-WITH (GUIDE)
main86797-50030i200809-200909
BEIJING SPEC&BACK MONITOR(REAR TELEVISION CAMERA)-WITH(INTELLIGENT PARKING ASSIST)
main86797-50030i200809-200909
CHINA(EXCEPT BEIJING) SPEC&CLEARANCE & BACK SONAR-WITH&BACK MONITOR(REAR TELEVISION CAMERA)-WITH (GUIDE)
main86797-50030i200809-200909
CHINA(EXCEPT BEIJING) SPEC&CLEARANCE & BACK SONAR-WITH&BACK MONITOR(REAR TELEVISION CAMERA)-WITH(INTELLIGENT PARKING ASSIST)
main86797-50030i200809-200909
CHINA(EXCEPT BEIJING) SPEC&BACK MONITOR(REAR TELEVISION CAMERA)-WITH (GUIDE)
main86797-50030i200809-200909
CHINA(EXCEPT BEIJING) SPEC&BACK MONITOR(REAR TELEVISION CAMERA)-WITH(INTELLIGENT PARKING ASSIST)
main86797-50030i200809-200909
WITH(EMV) & WITHOUT(NAVIGATION )&CLEARANCE & BACK SONAR-WITH&BACK MONITOR(REAR TELEVISION CAMERA)-WITH
main86797-50030i200809-200909
WITH(EMV) & WITHOUT(NAVIGATION )&BACK MONITOR(REAR TELEVISION CAMERA)-WITH
main86797-50040i200608-200809
EMV & NAVIGATION SYSTEM-WITH(EMV) & WITHOUT(NAVIGATION )&CLEARANCE & BACK SONAR-WITH&BACK MONITOR (REAR TELEVISION CAMERA)-WITH
main86797-50040i200608-200809
SINGAPORE SPEC&BACK MONITOR (REAR TELEVISION CAMERA)-WITH
main86797-50040i200608-200809
EMV & NAVIGATION SYSTEM-WITH(EMV) & WITHOUT(NAVIGATION )
main86797-50040i200608-200809
CLEARANCE & BACK SONAR-WITH&BACK MONITOR (REAR TELEVISION CAMERA)-WITH
main86797-50040i200608-200809
BACK MONITOR (REAR TELEVISION CAMERA)-WITH
main86797-50040i200608-200809
EMV & NAVIGATION SYSTEM-WITH(EMV) & WITHOUT(NAVIGATION )&CLEARANCE & BACK SONAR-WITH
main86797-50040i200608-200809
EMV & NAVIGATION SYSTEM-WITH(EMV) & WITHOUT(NAVIGATION )&CLEARANCE & BACK SONAR-WITH&BACK MONITOR (REAR TELEVISION CAMERA)-WITH(INTELLIGENT PARKING ASSIST)
main86797-50040i200608-200809
EMV & NAVIGATION SYSTEM-WITH(EMV) & WITHOUT(NAVIGATION )&BACK MONITOR (REAR TELEVISION CAMERA)-WITH
main86797-50040i200608-200809
NEW ZEALAND SPEC&CLEARANCE & BACK SONAR-WITH&BACK MONITOR (REAR TELEVISION CAMERA)-WITH
main86797-50040i200608-200809
NEW ZEALAND SPEC&BACK MONITOR (REAR TELEVISION CAMERA)-WITH
main86797-50040i200608-200809
HONG KONG SPEC&CLEARANCE & BACK SONAR-WITH&BACK MONITOR (REAR TELEVISION CAMERA)-WITH
main86797-50040i200608-200809
HONG KONG SPEC&BACK MONITOR (REAR TELEVISION CAMERA)-WITH
main86797-50040i200608-200809
SOUTH AFRICA SPEC&CLEARANCE & BACK SONAR-WITH&BACK MONITOR (REAR TELEVISION CAMERA)-WITH
main86797-50040i200608-200809
SOUTH AFRICA SPEC&BACK MONITOR (REAR TELEVISION CAMERA)-WITH
main86797-50040i200608-200809
THAILAND SPEC&CLEARANCE & BACK SONAR-WITH&BACK MONITOR (REAR TELEVISION CAMERA)-WITH
main86797-50040i200608-200809
THAILAND SPEC&BACK MONITOR (REAR TELEVISION CAMERA)-WITH
main86797-50040i200608-200809
SINGAPORE SPEC&CLEARANCE & BACK SONAR-WITH&BACK MONITOR (REAR TELEVISION CAMERA)-WITH
main86797-50040i200809-200909
MALAYSIA SPEC&CLEARANCE & BACK SONAR-WITH&BACK MONITOR(REAR TELEVISION CAMERA)-WITH
main86797-50040i200809-200909
MALAYSIA SPEC&BACK MONITOR(REAR TELEVISION CAMERA)-WITH
main86797-50040i200809-200909
HONG KONG SPEC&CLEARANCE & BACK SONAR-WITH&BACK MONITOR(REAR TELEVISION CAMERA)-WITH
main86797-50040i200809-200909
HONG KONG SPEC&BACK MONITOR(REAR TELEVISION CAMERA)-WITH
main86797-50040i200809-200909
THAILAND SPEC&CLEARANCE & BACK SONAR-WITH&BACK MONITOR(REAR TELEVISION CAMERA)-WITH
main86797-50040i200809-200909
THAILAND SPEC&BACK MONITOR(REAR TELEVISION CAMERA)-WITH
main86797-50040i200809-200909
SINGAPORE SPEC&CLEARANCE & BACK SONAR-WITH&BACK MONITOR(REAR TELEVISION CAMERA)-WITH
main86797-50040i200809-200909
SINGAPORE SPEC&BACK MONITOR(REAR TELEVISION CAMERA)-WITH
main86797-50070i200909-201209
WITH(EMV) & WITHOUT(NAVIGATION)&BACK MONITOR (REAR TELEVISION CAMERA)-WITH
main86797-50070i200909-201209
CLEARANCE & BACK SONAR-WITH&BACK MONITOR (REAR TELEVISION CAMERA)-WITH
main86797-50070i200909-201209
BACK MONITOR (REAR TELEVISION CAMERA)-WITH
main86797-50070i200909-201209
KAZAKHSTAN SPEC&BACK MONITOR (REAR TELEVISION CAMERA)-WITH
main86797-50070i200909-201209
ISRAEL SPEC&BACK MONITOR (REAR TELEVISION CAMERA)-WITH
main86797-50080i200909-201209
SINGAPOLE/BRUNEI SPEC&BACK MONITOR (REAR TELEVISION CAMERA)-WITH
main86797-50080i200909-201209
MALAYSIA SPEC&SUSPENSION-COIL SPRING&BACK MONITOR (REAR TELEVISION CAMERA)-WITH
main86797-50080i200909-201209
THAILAND/INDONESIA SPEC&SUSPENSION-COIL SPRING&BACK MONITOR (REAR TELEVISION CAMERA)-WITH
main86797-50080i200909-201209
SINGAPOLE/BRUNEI SPEC&SUSPENSION-COIL SPRING&BACK MONITOR (REAR TELEVISION CAMERA)-WITH
main86797-50080i200909-201209
SINGAPOLE/BRUNEI SPEC&SUSPENSION-COIL SPRING&WITH(EMV) & WITHOUT(NAVIGATION)&BACKMONITOR (REAR TELEVISION CAMERA)-WITH
main86797-50080i200909-201209
MALAYSIA SPEC&CLEARANCE & BACK SONAR-WITH&BACK MONITOR (REAR TELEVISION CAMERA)-WITH
main86797-50080i200909-201209
MALAYSIA SPEC&BACK MONITOR (REAR TELEVISION CAMERA)-WITH
main86797-50080i200909-201209
HONG KONG SPEC&CLEARANCE & BACK SONAR-WITH&BACK MONITOR (REAR TELEVISION CAMERA)-WITH
main86797-50080i200909-201209
HONG KONG SPEC&BACK MONITOR (REAR TELEVISION CAMERA)-WITH
main86797-50080i200909-201209
THAILAND/INDONESIA SPEC&CLEARANCE & BACK SONAR-WITH&BACK MONITOR (REAR TELEVISIONCAMERA)-WITH
main86797-50080i200909-201209
THAILAND/INDONESIA SPEC&BACK MONITOR (REAR TELEVISION CAMERA)-WITH
main86797-50080i200909-201209
SINGAPOLE/BRUNEI SPEC&CLEARANCE & BACK SONAR-WITH&BACK MONITOR (REAR TELEVISION CAMERA)-WITH
9017606045
main90176-06045
9017906274
main90179-06274
9155380614
main91553-80614
9162640618
main91626-40618
91631J0612
main91631-J0612
9324915008
main93249-15008
9356855012
main93568-55012
9415180600
main94151-80600

24 parts on this diagram · 8 diagrams in section

Toyota LEXUS LS460/460L CAMERA & REAR MONITOR DISPLAY — Parts Diagram | EPC Data
