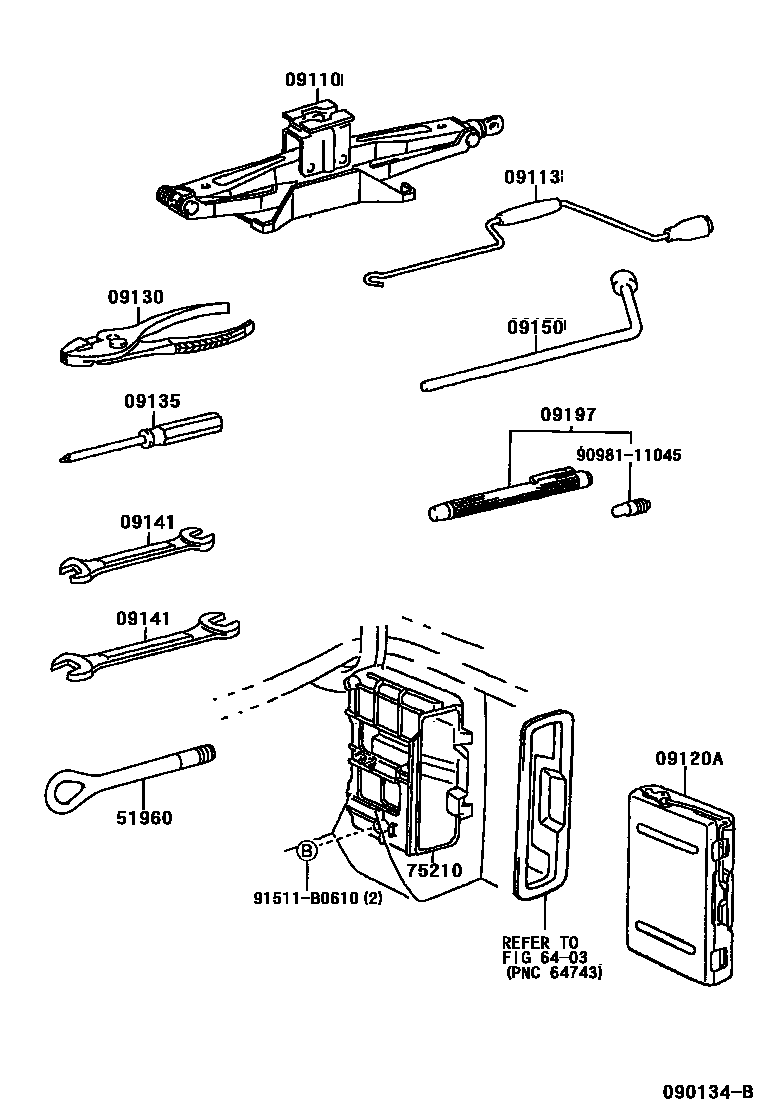

Toyota LEXUS LS430 — STANDARD TOOL

09110JACK ASSY

main09111-50050iUCF30200008-200111

main09111-50051iUCF30200111-200307

sub09111-76011

09113HANDLE, JACK

main09113-50010iUCF30200008-200307

09120ACASE, TOOL

main09120-50040-C0iUCF30200008-200307

BLACK,TRIM03,04,05,1#,20,27,29

09130PLIERS

main09130-50030iUCF30200008-200307

09135DRIVER, SCREW

main09135-50040iUCF30200008-200307

09141SPANNER

main09141-50050iUCF30200008-200307

8 X 10

main09141-50060iUCF30200307

12 X 14

09150WRENCH, HUB NUT BOX

main09150-50010iUCF30200008-200307

sub09150-53010

09197LIGHT, PEN

main09197-50030iUCF30200307

51960HOOK ASSY, FRONT

main51961-48030iUCF30200307

sub51961-44010

main51961-50030iUCF30200008-200307

6403

75210BOX ASSY, TOOL

main75210-50040iUCF30200008-200307

9098111045

main90981-11045

91511B0610

main91511-B0610

13 parts on this diagram · 1 diagram in section
