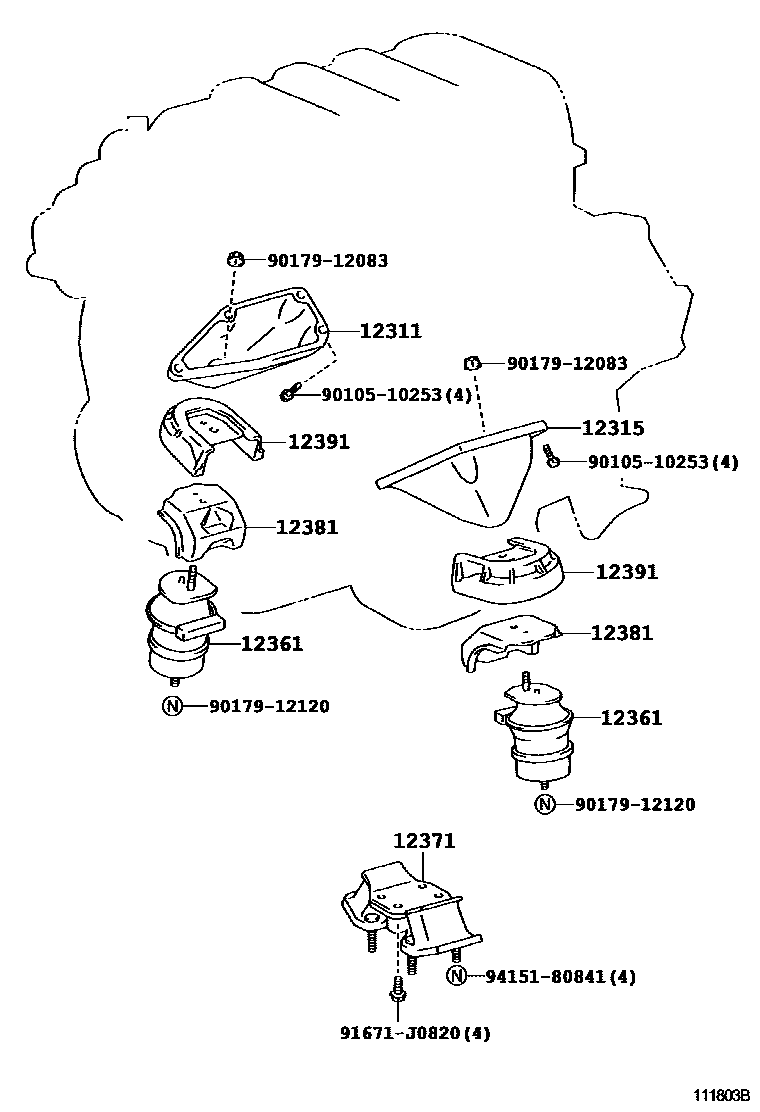

Toyota LEXUS LS430 — MOUNTING

12311BRACKET, ENGINE MOUNTING, FRONT NO.1 RH

main12311-50130i3UZFE..UCF30200008-200307

12315BRACKET, ENGINE MOUNTING, FRONT NO.1 LH

main12315-50100i3UZFE..UCF30200008-200307

12361INSULATOR, ENGINE MOUNTING, FRONT

main12361-50170×2i3UZFE..UCF30200008-200307

12371INSULATOR, ENGINE MOUNTING, REAR NO.1

main12371-50140i3UZFE..UCF30200008-200307

main12371-50170i3UZFE..UCF30200307

12381STABILIZER, ENGINE MOUNTING

main12381-50130×2i3UZFE..UCF30200008-200307

12391INSULATOR, ENGINE MOUNTING FRONT, HEAT, RH

main12391-50050×2i3UZFE..UCF30200008-200307

9010510253

main90105-10253

9017912083

main90179-12083

9017912120

main90179-12120

91671J0820

main91671-J0820

9415180841

main94151-80841

11 parts on this diagram · 1 diagram in section
