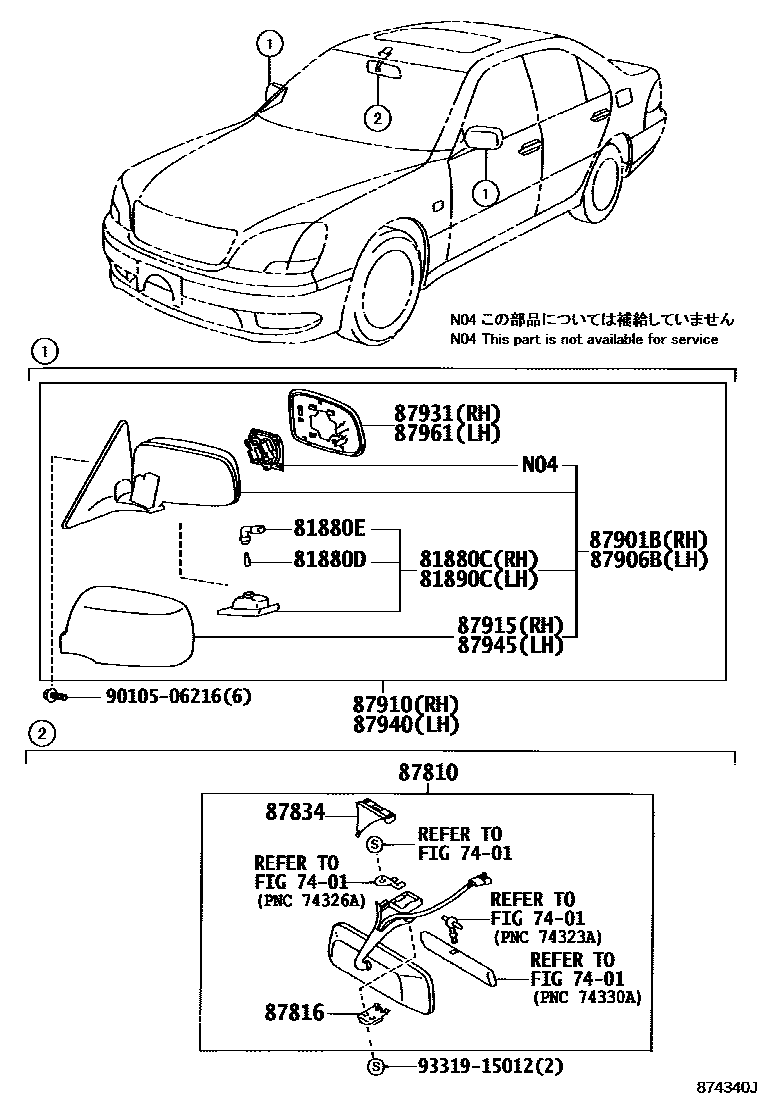

Toyota LEXUS LS430 — MIRROR

7401ARMREST & VISOR

→ Go to FIG 74-01

81880CLAMP ASSY, OUTER MIRROR, RH

main81880-50030i200008-200307

81880DBULB, OUTER MIRROR LAMP ASSY

main90981-11051×2i200008-200307

12V 5W

81880EPULG, OUTER MIRROR LAMP SOCKET

main90075-60005×2i200008-200307

81890CLAMP ASSY, OUTER MIRROR, LH

main81890-30080i200008-200307

87810MIRROR ASSY, INNER REAR VIEW

main87810-50120-A0i200008-200307

IVORY,TRIM04

main87810-50120-A1i200008-200307

ECRU,TRIM03,05

main87810-50120-B0i200008-200307

MEDIUM CHARCOAL,TRIM1#,20,27,29

main87810-50121-A1i200307-200608

ECRU,TRIM00

main87810-50121-A2i200307-200608

NEW IVORY,TRIM01,07

main87810-50121-B1i200307-200608

NEW GRAY,TRIM1#,20,21,24

main87810-50160-A0i200008-200307

CUSTUM LUXURY SELECTION OR ULTRA LUXURY SELECTION,ECRU,TRIM0#

main87810-50160-B0i200008-200307

CUSTUM LUXURY SELECTION OR ULTRA LUXURY SELECTION,CHARCOAL,TRIM27,29

main87810-50161-A0i200307-200608

CUSTUM LUXURY SELECTION OR ULTRA LUXURY SELECTION,ECRU,TRIM0#

main87810-50161-B1i200307-200608

CUSTUM LUXURY SELECTION OR ULTRA LUXURY SELECTION,NEW GRAY,TRIM21,22,25

main87810-50250-A1i200307-200608

KOREA SPEC,ECRU,TRIM00

main87810-50250-A2i200307-200608

KOREA SPEC,NEW IVORY,TRIM01,07

main87810-50250-B1i200307-200608

KOREA SPEC,NEW GRAY,TRIM1#,2#

87816SPRING, INNER REAR VIEW MIRROR

main74372-30030i200008-200307

87834COVER, INNER REAR VIEW MIRROR STAY HOLDER

main87834-50030-A0i200008-200307

IVORY,TRIM04

main87834-50030-A1i200008-200307

ECRU,TRIM03,05

main87834-50030-A2i200307-200608

NEW IVORY,TRIM07

main87834-50030-B0i200008-200307

MD.CHARCOAL,TRIM1#,20,27,29

main87834-50030-B1i200307-200608

NEW GRAY,TRIM1#,21,24,25

87901BMIRROR SUB-ASSY, OUTER REAR VIEW, RH

main87901-50050-A0i200008-200307

WHITE PEARL CS.,062

main87901-50050-A1i200008-200307

IVORY PEARL CS.,066

main87901-50050-A2i200307-200608

SILKY WHITE PEARL CS.,072

main87901-50050-B0i200008-200307

SILVER ME.,1C0

main87901-50050-B1i200307-200608

DK.GRAY MC.,1E0

main87901-50050-B2i200307-200608

PREMIUM SILVER,1F2

main87901-50050-C0i200008-200307

BLACK,202

main87901-50050-D0i200008-200307

BORDEAUX MC.,3P2

main87901-50050-D1i200008-200107

ROSE M.M.,3P4

main87901-50050-E0i200008-200307

BEIGE ME.,4P7

main87901-50050-E1i200307-200608

GRAYISH BROWN M.M.,4S1

main87901-50050-G0i200008-200307

GREEN M.M.,6S5

main87901-50050-G1i200008-200307

DARK GREEN M.M.,6S6

main87901-50050-G2i200307-200608

OLIVE M.M.,6T7

main87901-50050-J0i200008-200307

DARK BLUE MC.,8P8

main87901-50050-J1i200107-200307

LT. BLUE M.M.,8P7

87906BMIRROR SUB-ASSY, OUTER REAR VIEW, LH

main87906-50110-A0i200008-200307

WHITE PEARL CS.,062

main87906-50110-A1i200008-200307

IVORY PEARL CS.,066

main87906-50110-A2i200307-200608

SILKY WHITE PEARL CS.,072

main87906-50110-B0i200008-200307

SILVER ME.,1C0

main87906-50110-B1i200307-200608

DK.GRAY MC.,1E0

main87906-50110-B2i200307-200608

PREMIUM SILVER,1F2

main87906-50110-C0i200008-200307

BLACK,202

main87906-50110-D0i200008-200307

BORDEAUX MC.,3P2

main87906-50110-D1i200008-200107

ROSE M.M.,3P4

main87906-50110-E0i200008-200307

BEIGE ME.,4P7

main87906-50110-E1i200307-200608

GRAYISH BROWN M.M.,4S1

main87906-50110-G0i200008-200307

GREEN M.M.,6S5

main87906-50110-G1i200008-200307

DARK GREEN M.M.,6S6

main87906-50110-G2i200307-200608

OLIVE M.M.,6T7

main87906-50110-J0i200008-200307

DARK BLUE MC.,8P8

main87906-50110-J1i200107-200307

LT. BLUE M.M.,8P7

87910MIRROR ASSY, OUTER REAR VIEW, RH

main87910-50460-A0i200008-200307

WHITE PEARL CS.,062

main87910-50460-A1i200008-200307

IVORY PEARL CS.,066

main87910-50460-A2i200307-200408

SILKY WHITE PEARL CS.,072

main87910-50460-B1i200008-200307

SILVER ME.,1C0

main87910-50460-B2i200307-200408

DK.GRAY MC.,1E0

main87910-50460-B3i200307-200408

PREMIUM SILVER,1F2

main87910-50460-C0i200008-200307

BLACK,202

main87910-50460-D0i200008-200307

BORDEAUX MC.,3P2

main87910-50460-D1i200008-200107

ROSE M.M.,3P4

main87910-50460-E0i200008-200307

BEIGE ME.,4P7

main87910-50460-E1i200307-200408

GRAYISH BROWN M.M.,4S1

main87910-50460-G0i200008-200307

GREEN M.M.,6S5

main87910-50460-G1i200008-200307

DARK GREEN M.M.,6S6

main87910-50460-G2i200307-200408

OLIVE M.M.,6T7

main87910-50460-J0i200008-200307

DARK BLUE MC.,8P8

main87910-50460-J1i200107-200307

LT. BLUE M.M.,8P7

main87910-50461-A0i200409-200412

WHITE PEARL CS.,062

main87910-50461-A2i200409-200412

SILKY WHITE PEARL CS.,072

main87910-50461-B2i200409-200412

DK.GRAY MC.,1E0

main87910-50461-B3i200409-200412

PREMIUM SILVER,1F2

main87910-50461-C0i200409-200412

BLACK,202

main87910-50461-D0i200409-200412

BORDEAUX MC.,3P2

main87910-50461-E0i200409-200412

BEIGE ME.,4P7

main87910-50461-E1i200409-200412

GRAYISH BROWN M.M.,4S1

main87910-50461-G2i200409-200412

OLIVE M.M.,6T7

main87910-50461-J0i200409-200412

DARK BLUE MC.,8P8

main87910-50462-A0i200501-200608

WHITE PEARL CS.,062

main87910-50462-A2i200501-200608

SILKY WHITE PEARL CS.,072

main87910-50462-B2i200501-200608

DK.GRAY MC.,1E0

main87910-50462-B3i200501-200608

PREMIUM SILVER,1F2

main87910-50462-C0i200501-200608

BLACK,202

main87910-50462-D0i200501-200608

BORDEAUX MC.,3P2

main87910-50462-E0i200501-200608

BEIGE ME.,4P7

main87910-50462-E1i200501-200608

GRAYISH BROWN M.M.,4S1

main87910-50462-G2i200501-200608

OLIVE M.M.,6T7

main87910-50462-J0i200501-200608

DARK BLUE MC.,8P8

87915COVER, OUTER MIRROR, RH

main87915-50030-A0i200008-200307

WHITE PEARL CS.,062

main87915-50030-A1i200008-200307

IVORY PEARL CS.,066

main87915-50030-A2i200307-200608

SILKY WHITE PEARL CS,072

main87915-50030-B0i200008-200307

SILVER ME.,1C0

main87915-50030-B1i200307-200608

DK.GRAY MC.,1E0

main87915-50030-B2i200307-200608

PREMIUM SILVER,1F2

main87915-50030-C0i200008-200307

BLACK,202

main87915-50030-D0i200008-200307

BORDEAUX MC.,3P2

main87915-50030-D1i200008-200107

ROSE M.M.,3P4

main87915-50030-E0i200008-200307

BEIGE ME.,4P7

main87915-50030-E1i200307-200608

GRAYISH BROWN M.M.,4S1

main87915-50030-G0i200008-200307

GREEN M.M.,6S5

main87915-50030-G1i200008-200307

DARK GREEN MC.,6S6

main87915-50030-G2i200307-200608

OLIVE M.M.,6T7

main87915-50030-J0i200008-200307

DARK BLUE MC.,8P8

main87915-50030-J1i200107-200307

LT. BLUE M.M.,8P7

87931OUTER MIRROR, RH

main87931-50460i200008-200307

87940MIRROR ASSY, OUTER REAR VIEW, LH

main87940-50430-A0i200008-200307

WHITE PEARL CS.,062

main87940-50430-A1i200008-200307

IVORY PEARL CS.,066

main87940-50430-A2i200307-200408

SILKY WHITE PEARL CS.,072

main87940-50430-B1i200008-200307

SILVER ME.,1C0

main87940-50430-B2i200307-200408

DK.GRAY MC.,1E0

main87940-50430-B3i200307-200408

PREMIUM SILVER,1F2

main87940-50430-C0i200008-200307

BLACK,202

main87940-50430-D0i200008-200307

BORDEAUX MC.,3P2

main87940-50430-D1i200008-200107

ROSE M.M.,3P4

main87940-50430-E0i200008-200307

BEIGE ME.,4P7

main87940-50430-E1i200307-200408

GRAYISH BROWN M.M.,4S1

main87940-50430-G0i200008-200307

GREEN M.M.,6S5

main87940-50430-G1i200008-200307

DARK GREEN M.M.,6S6

main87940-50430-G2i200307-200408

OLIVE M.M.,6T7

main87940-50430-J0i200008-200307

DARK BLUE MC.,8P8

main87940-50430-J1i200107-200307

LT. BLUE M.M.,8P7

main87940-50431-A0i200409-200412

WHITE PEARL CS.,062

main87940-50431-A2i200409-200412

SILKY WHITE PEARL CS.,072

main87940-50431-B2i200409-200412

DK.GRAY MC.,1E0

main87940-50431-B3i200409-200412

PREMIUM SILVER,1F2

main87940-50431-C0i200409-200412

BLACK,202

main87940-50431-D0i200409-200412

BORDEAUX MC.,3P2

main87940-50431-E0i200409-200412

BEIGE ME.,4P7

main87940-50431-E1i200409-200412

GRAYISH BROWN M.M.,4S1

main87940-50431-G2i200409-200412

OLIVE M.M.,6T7

main87940-50431-J0i200409-200412

DARK BLUE MC.,8P8

main87940-50432-A0i200501-200608

WHITE PEARL CS.,062

main87940-50432-A2i200501-200608

SILKY WHITE PEARL CS.,072

main87940-50432-B2i200501-200608

DK.GRAY MC.,1E0

main87940-50432-B3i200501-200608

PREMIUM SILVER,1F2

main87940-50432-C0i200501-200608

BLACK,202

main87940-50432-D0i200501-200608

BORDEAUX MC.,3P2

main87940-50432-E0i200501-200608

BEIGE ME.,4P7

main87940-50432-E1i200501-200608

GRAYISH BROWN M.M.,4S1

main87940-50432-G2i200501-200608

OLIVE M.M.,6T7

main87940-50432-J0i200501-200608

DARK BLUE MC.,8P8

87945COVER, OUTER MIRROR, LH

main87945-50030-A0i200008-200307

WHITE PEARL CS.,062

main87945-50030-A1i200008-200307

IVORY PEARL CS.,066

main87945-50030-A2i200307-200608

SILKY WHITE PEARL CS,072

main87945-50030-B0i200008-200307

SILVER ME.,1C0

main87945-50030-B1i200307-200608

DK.GRAY MC.,1E0

main87945-50030-B2i200307-200608

PREMIUM SILVER,1F2

main87945-50030-C0i200008-200307

BLACK,202

main87945-50030-D0i200008-200307

BORDEAUX MC.,3P2

main87945-50030-D1i200008-200107

ROSE M.M.,3P4

main87945-50030-E0i200008-200307

BEIGE ME.,4P7

main87945-50030-E1i200307-200608

GRAYISH BROWN M.M.,4S1

main87945-50030-G0i200008-200307

GREEN M.M.,6S5

main87945-50030-G1i200008-200307

DARK GREEN MC.,6S6

main87945-50030-G2i200307-200608

OLIVE M.M.,6T7

main87945-50030-J0i200008-200307

DARK BLUE MC.,8P8

main87945-50030-J1i200107-200307

LT. BLUE M.M.,8P7

87961MIRROR OUTER, LH

main87961-50430i200008-200307

9010506216

main90105-06216

9331915012

main93319-15012

18 parts on this diagram · 1 diagram in section
