Toyota LEXUS LS430 — MAT & CARPET
58510DCARPET ASSY, FLOOR, FRONT
ECRU,TRIM03,05
IVORY,TRIM04
CHARCOAL,TRIM1#
BLACK,TRIM20,27,29
ECRU,TRIM03,05
IVORY,TRIM04
CHARCOAL,TRIM1#
BLACK,TRIM20,27,29
ECRU,TRIM03,05
IVORY,TRIM04
CHARCOAL,TRIM1#
BLACK,TRIM20,27,29
NEW IVORY,TRIM07
ECRU,TRIM00,08
NEW GRAY,TRIM1#
BLACK,TRIM21,24,25
NEW IVORY,TRIM07
ECRU,TRIM00,08
NEW GRAY,TRIM1#
BLACK,TRIM21,24,25
58520CCLIP(FOR FRONT FLOOR CARPET)
IVORY,TRIM03,04,1#,20,27
IVORY,TRIM03,04,05,1#,20,27,29
58521BHOOK, FLOOR CARPET
58530BCLIP(FOR FRONT FLOOR CARPET)
IVORY,TRIM04,NO.1
ECRU,TRIM00,08,NO.1
NEW IVORY,TRIM07,NO.1
MD.CHARCOAL,TRIM1#,NO.1
NEW GRAY,TRIM1#,NO.1
BLACK,TRIM20,27,29,NO.1
IVORY,TRIM04,NO.2
ECRU,TRIM00,08,NO.2
NEW IVORY,TRIM07,NO.2
MD.CHARCOAL,TRIM1#,NO.2
NEW GRAY,TRIM1#,NO.2
BLACK,TRIM20,27,29,NO.2
62117ECOVER, COWL SIDE TRIM SERVICE HOLE
IVORY,TRIM04
ECRU,TRIM03,05
NEW IVORY,TRIM07
MD.CHARCOAL,TRIM1#
NEW GRAY,TRIM1#
BLACK,TRIM20,27,29
62117JCOVER, COWL SIDE TRIM SERVICE HOLE, LH
IVORY,TRIM04
ECRU,TRIM03,05
NEW IVORY,TRIM07
MD.CHARCOAL,TRIM1#
NEW GRAY,TRIM1#
BLACK,TRIM20,27,29

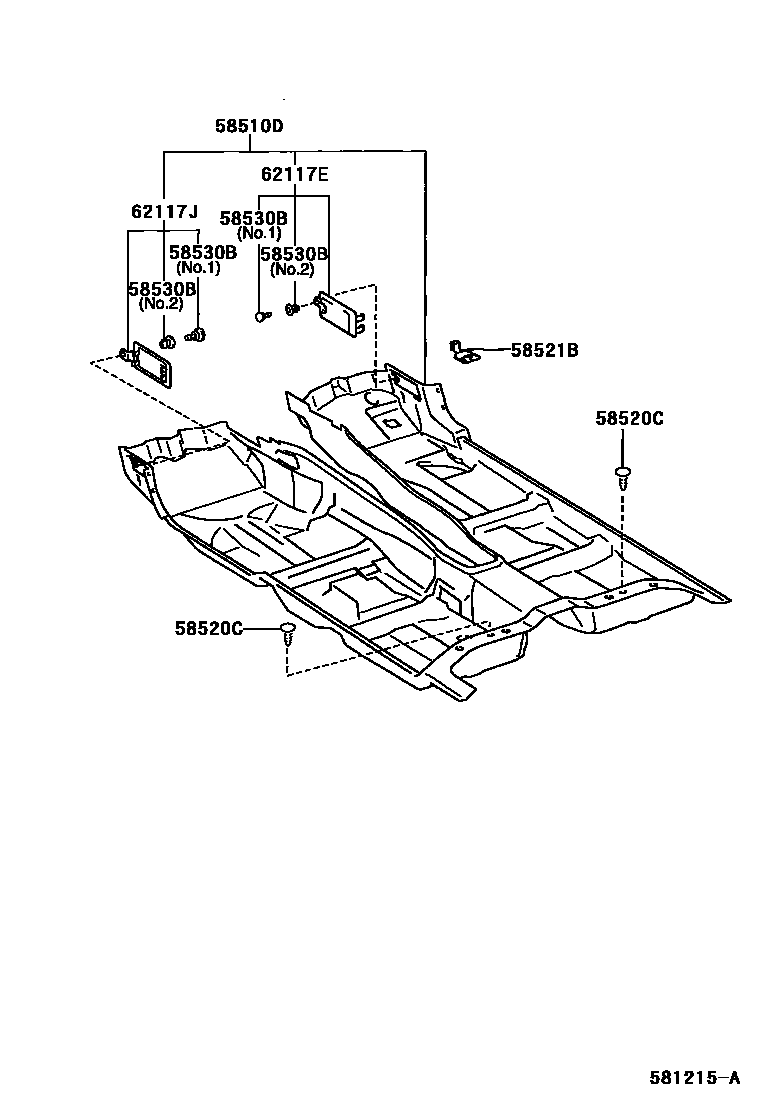

6 parts on this diagram · 1 diagram in section
MAT & CARPET for Toyota LEXUS LS430
This section contains 6 genuine Toyota parts for the MAT & CARPET system of the Toyota LEXUS LS430. Key components include: CARPET ASSY, FLOOR, FRONT, CLIP(FOR FRONT FLOOR CARPET), HOOK, FLOOR CARPET, COVER, COWL SIDE TRIM SERVICE HOLE.
