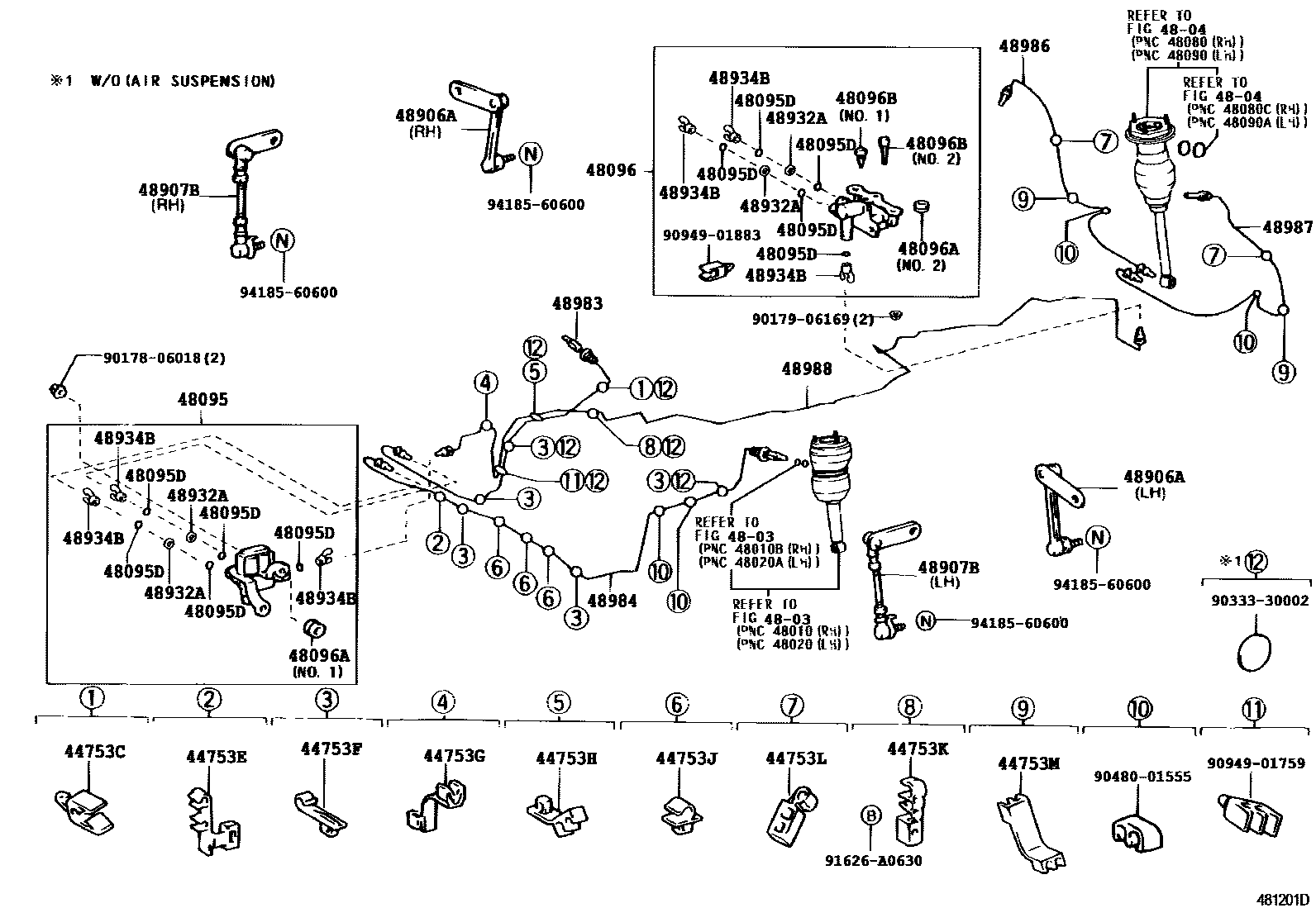

Toyota LEXUS LS430 — HEIGHT CONTROL (AUTO-LEVELER)
44753CCLAMP, HEIGHT CONTROL TUBE, NO.2
44753ECLAMP, HEIGHT CONTROL TUBE, NO.3
44753FCLAMP, HEIGHT CONTROL TUBE, NO.4
44753GCLAMP, HEIGHT CONTROL TUBE NO.5
44753HCLAMP, HEIGHT CONTROL TUBE NO.6
44753JCLAMP, HEIGHT CONTROL TUBE NO.7
44753KCLAMP, HEIGHT CONTROL TUBE NO.8
44753LCLAMP, HEIGHT CONTROL TUBE NO.9
44753MCLAMP, HEIGHT CONTROL TUBE NO.10
4803
4804
48095VALVE SUB-ASSY, HEIGHT CONTROL, NO.1
48095DRING, O(FOR HEIGHT CONTROL VALVE)
48096VALVE SUB-ASSY, HEIGHT CONTROL, NO.2
48096ABUSH, NO.2(FOR HEIGHT CONTROL VALVE)
NO.1
NO.2
48096BCUSHION, NO.2(FOR HEIGHT CONTROL VALVE)
NO.1
NO.2
48906ALINK SUB-ASSY, HEIGHT CONTROL SENSOR, REAR
W(AIR SUSPENSION),RH
W(AIR SUSPENSION),LH
48907BLINK SUB-ASSY, HEIGHT CONTROL SENSOR, FRONT
RH
LH
48932APLATE, HEIGHT CONTROL TUBE
48934BCONNECTOR, HEIGHT CONTROL TUBE
48983TUBE, HEIGHT CONTROL, NO.3
48984TUBE, HEIGHT CONTROL, NO.4
48986TUBE, HEIGHT CONTROL, NO.6
48987TUBE, HEIGHT CONTROL, NO.7
9017806018
main90178-06018
9017906169
main90179-06169
9033330002
main90333-30002
9048001555
main90480-01555
9094901759
main90949-01759
9094901883
main90949-01883
91626A0630
main91626-A0630
9418560600
main94185-60600
33 parts on this diagram · 2 diagrams in section
