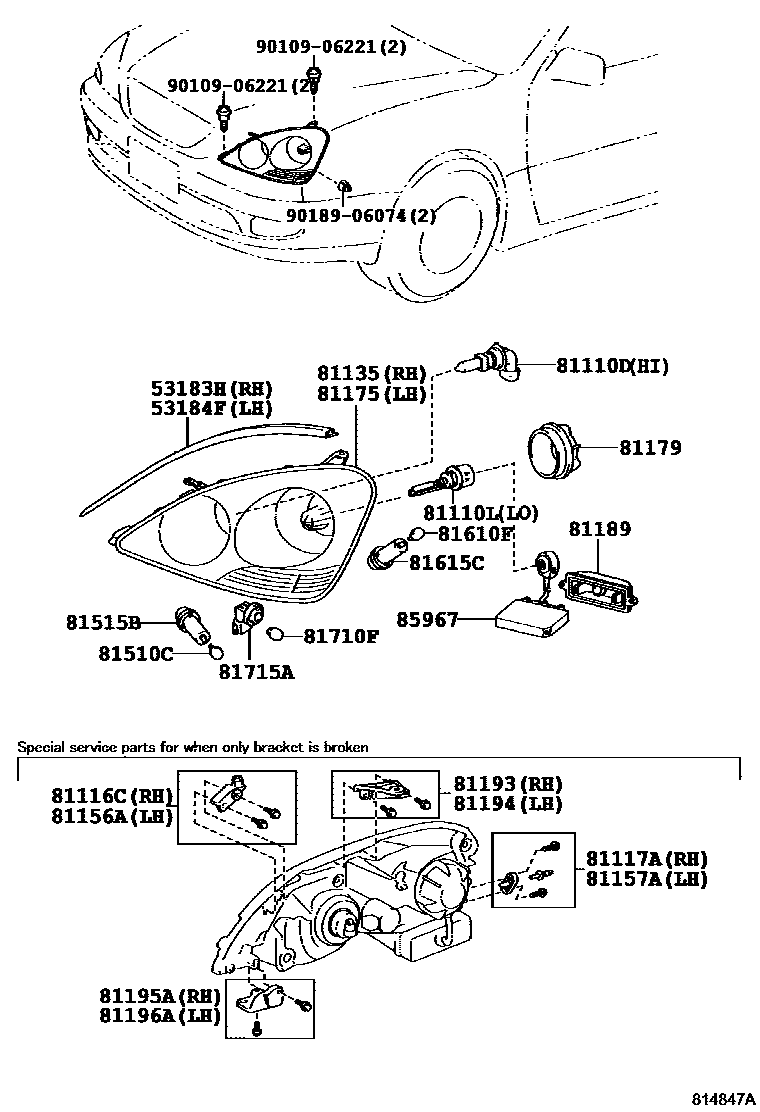

Toyota LEXUS LS430 — HEADLAMP
81110DBULB(FOR HEADLAMP, NO.2)
12V 65W
81110LBULB, DISCHARGE HEADLAMP
85V 35W
86V 35W
81116CBRACKET, HEADLAMP, RH
81117ABRACKET, HEADLAMP, RH
81135UNIT ASSY, HEADLAMP, RH
81156ABRACKET, HEADLAMP, LH
81157ABRACKET, HEADLAMP, LH
81175UNIT ASSY, HEADLAMP, LH
81193RETAINER, HEADLAMP PROTECTOR, UPPER RH
NO.1
NO.2
81194RETAINER, HEADLAMP PROTECTOR, UPPER LH
NO.2
NO.1
81195ARETAINER, HEADLAMP PROTECTOR, LOWER RH
81196ARETAINER, HEADLAMP PROTECTOR, LOWER LH
81510CBULB (FOR FRONT TURN SIGNAL LAMP)
12V 21W,AMBER
81515BSOCKET, FRONT TURN SIGNAL LAMP
81610FBULB(FOR CLEARANCE LAMP)
12V 5W
81615CSOCKET & WIRE, CLEARANCE LAMP
81710FBULB, FRONT SIDE MAKER LAMP
81715ASOCKET & WIRE, FRONT MARKER LAMP
9010906221
main90109-06221
9018906074
main90189-06074
25 parts on this diagram · 2 diagrams in section
HEADLAMP for Toyota LEXUS LS430
This section contains 28 genuine Toyota parts for the HEADLAMP system of the Toyota LEXUS LS430. Key components include: SEAL, HEADLAMP COVER, RH, SEAL, HEADLAMP COVER, LH, BULB(FOR HEADLAMP, NO.2), BULB, DISCHARGE HEADLAMP, BRACKET, HEADLAMP, RH.
