Toyota LEXUS LS430 — FUEL INJECTION SYSTEM

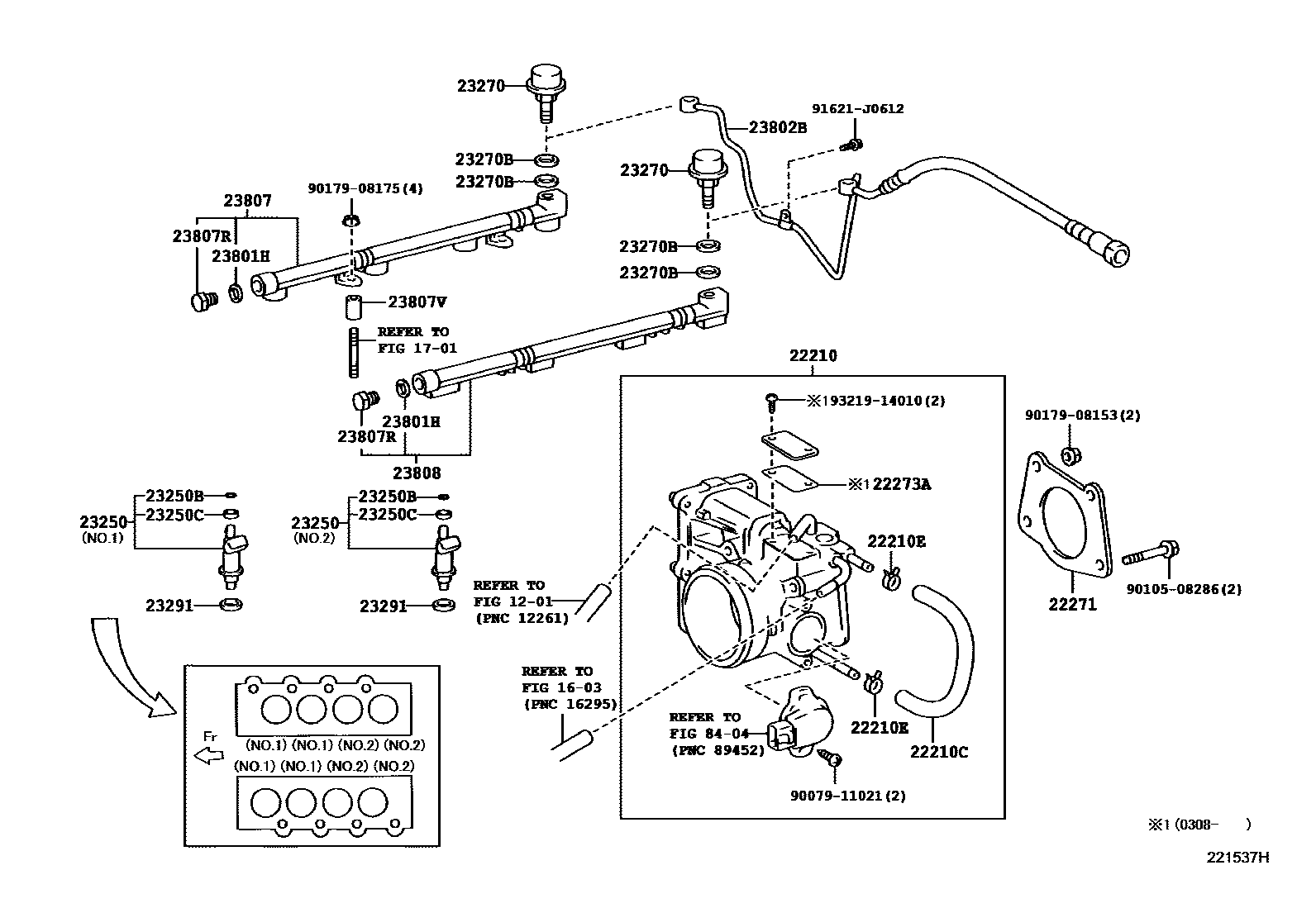

Parts diagram
1201
1603
1701
22210BODY ASSY, THROTTLE
main22030-50160i200008-200307
main22030-50190i200307
22210CHOSE, WATER BY-PASS, NO.1
main16296-50030i200512
main99556-10300i200307-200512
*H,L=210
22210ECLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE, NO.1)
main90467-13059×2i200008-200307
sub90467-13054
main96135-51300×2i200307
22271GASKET, THROTTLE BODY
main22271-50042i200008-200307
22273AGASKET, THROTTLE BODY, NO.2
main22273-50020i200308-200608
23250INJECTOR ASSY, FUEL
main23209-50030×4i200008-200307
NO.1
main23209-50050×4i200008-200307
NO.2
23250BRING, O(FOR FUEL INJECTOR)
main90301-07024×16i200307-200502
main90301-07037×8i200502
DELIVERY PIPE SIDE
23250CGROMMET(FOR FUEL INJECTOR)
main90480-13005×8i200008-200307
23270DAMPER ASSY, FUEL PRESSURE PULSATION
main23270-50010×2i200008-200307
sub23270-50011
23270BGASKET(FOR PULSATION DAMPER HOSE)
main23232-41081×2i200008-200307
DAMPER SIDE
main90430-12026×2i200008-200307
DELIVERY PIPE SIDE
23291INSULATOR, INJECTOR VIBRATION
main23291-20010×8i200008-200307
23801HGASKET(FOR FUEL PIPE)
main90430-14008×2i200008-200307
23802BPIPE SUB-ASSY, FUEL, NO.2
main23802-50060i200008-200307
23807PIPE SUB-ASSY, FUEL DELIVERY
main23807-50030i200008-200306
main23807-50031i200306-200307
23807RPLUG, FUEL DELIVARY PIPE
main90341-14032×2i200008-200307
23807VSPACER, NO.1(FOR DELIVERY PIPE)
main90561-08029×4i200008-200307
23808PIPE SUB-ASSY, FUEL DELIVERY, NO.2
main23808-50020i200008-200306
main23808-50021i200306-200307
8404
9007911021
main90079-11021
9010508286
main90105-08286
9017908153
main90179-08153
9017908175
main90179-08175
91621J0612
main91621-J0612
9321914010
main93219-14010

27 parts on this diagram · 3 diagrams in section
