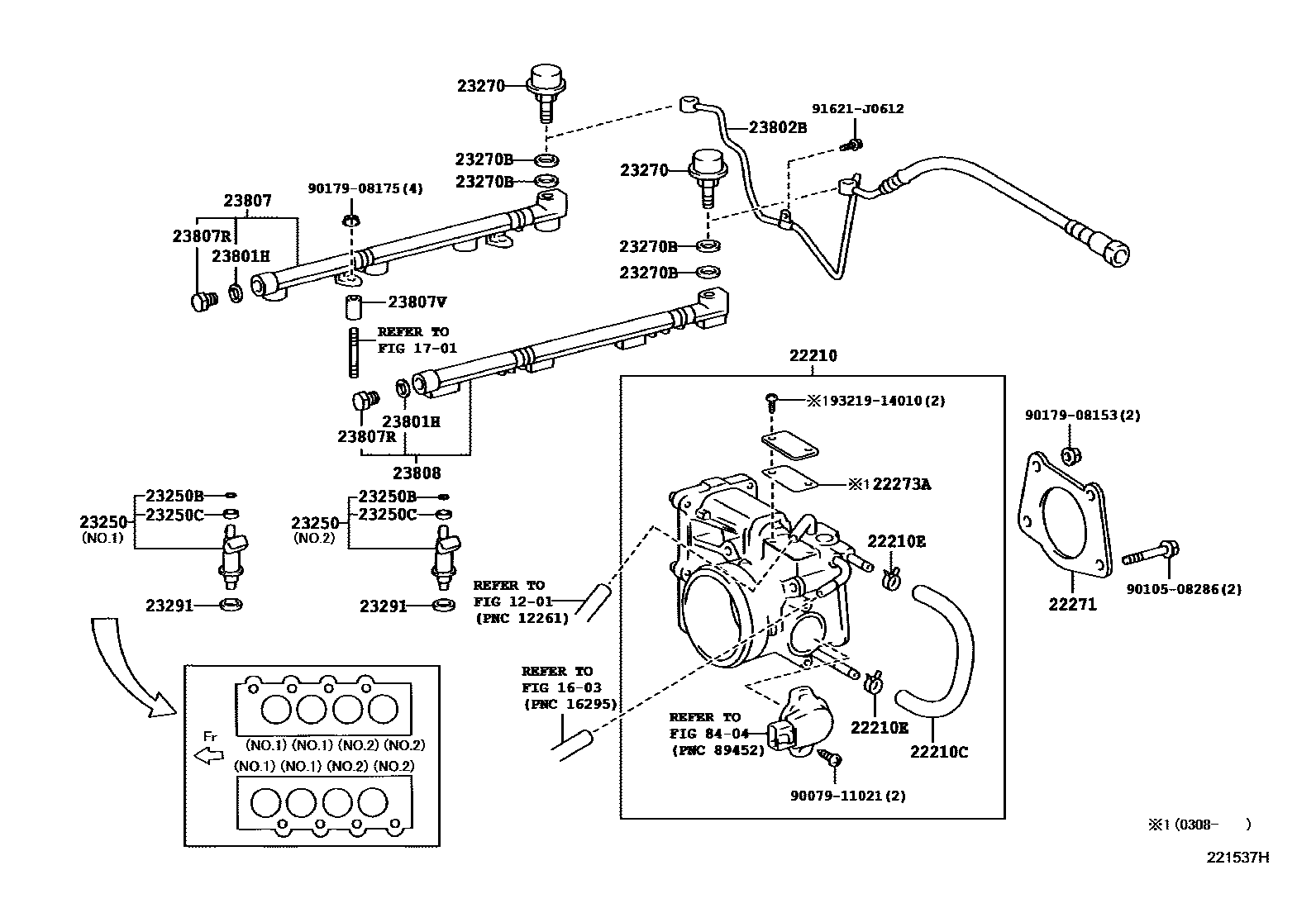

Toyota LEXUS LS430 — FUEL INJECTION SYSTEM

1201

1603

1701

22210BODY ASSY, THROTTLE

main22030-50160i200008-200307

main22030-50190i200307

22210CHOSE, WATER BY-PASS, NO.1

main16296-50030i200512

main99556-10300i200307-200512

*H,L=210

22210ECLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE, NO.1)

main90467-13059×2i200008-200307

sub90467-13054

main96135-51300×2i200307

22271GASKET, THROTTLE BODY

main22271-50042i200008-200307

22273AGASKET, THROTTLE BODY, NO.2

main22273-50020i200308-200608

23250INJECTOR ASSY, FUEL

main23209-50030×4i200008-200307

NO.1

main23209-50050×4i200008-200307

NO.2

23250BRING, O(FOR FUEL INJECTOR)

main90301-07024×16i200307-200502

main90301-07037×8i200502

DELIVERY PIPE SIDE

23250CGROMMET(FOR FUEL INJECTOR)

main90480-13005×8i200008-200307

23270DAMPER ASSY, FUEL PRESSURE PULSATION

main23270-50010×2i200008-200307

sub23270-50011

23270BGASKET(FOR PULSATION DAMPER HOSE)

main23232-41081×2i200008-200307

DAMPER SIDE

main90430-12026×2i200008-200307

DELIVERY PIPE SIDE

23291INSULATOR, INJECTOR VIBRATION

main23291-20010×8i200008-200307

23801HGASKET(FOR FUEL PIPE)

main90430-14008×2i200008-200307

23802BPIPE SUB-ASSY, FUEL, NO.2

main23802-50060i200008-200307

23807PIPE SUB-ASSY, FUEL DELIVERY

main23807-50030i200008-200306

main23807-50031i200306-200307

23807RPLUG, FUEL DELIVARY PIPE

main90341-14032×2i200008-200307

23807VSPACER, NO.1(FOR DELIVERY PIPE)

main90561-08029×4i200008-200307

23808PIPE SUB-ASSY, FUEL DELIVERY, NO.2

main23808-50020i200008-200306

main23808-50021i200306-200307

8404

9007911021

main90079-11021

9010508286

main90105-08286

9017908153

main90179-08153

9017908175

main90179-08175

91621J0612

main91621-J0612

9321914010

main93219-14010

27 parts on this diagram · 3 diagrams in section

FUEL INJECTION SYSTEM for Toyota LEXUS LS430

This section contains 37 genuine Toyota parts for the FUEL INJECTION SYSTEM system of the Toyota LEXUS LS430. Key components include: BODY ASSY, THROTTLE, HOSE, WATER BY-PASS, NO.1.
