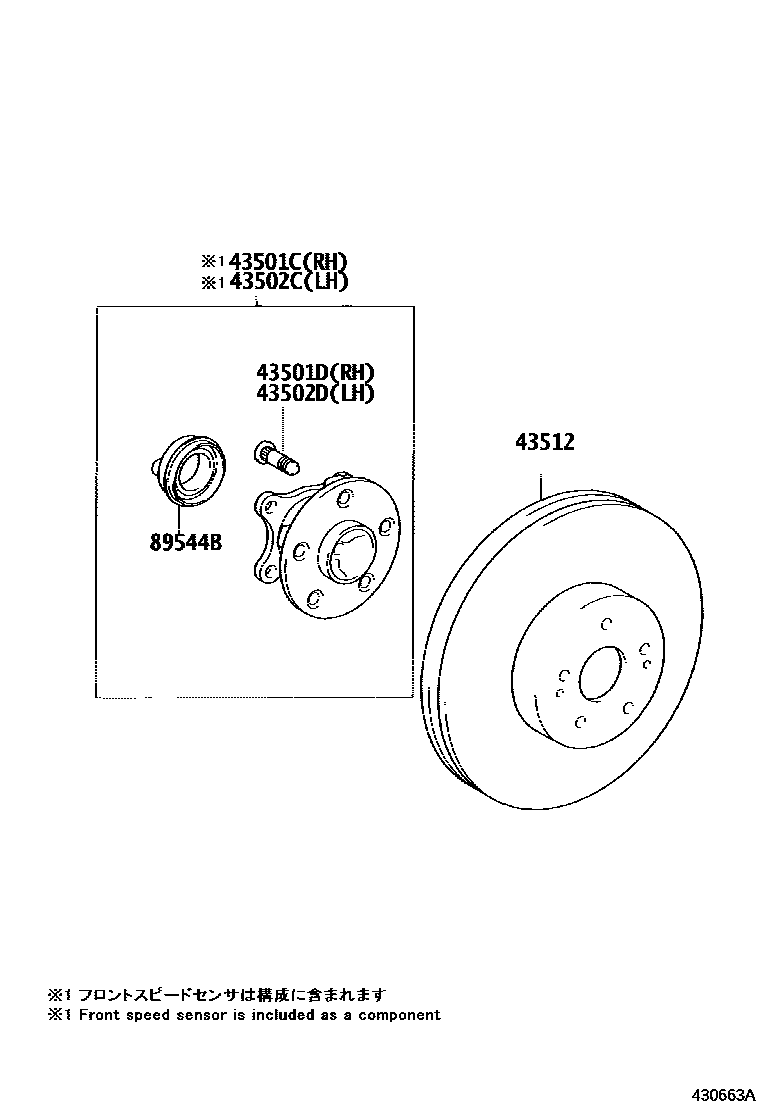

Toyota LEXUS LS430 — FRONT AXLE HUB

43501CHUB SUB-ASSY, FRONT AXLE, RH

main43550-50010iUCF30200008-200307

main43550-50011iUCF30200307-200608

43501DBOLT, HUB (FOR FRONT AXLE RH)

main90942-02070×5iUCF30200008-200307

sub90942-02049

43502CHUB SUB-ASSY, FRONT AXLE, LH

main43550-50010iUCF30200008-200307

main43550-50011iUCF30200307-200608

43502DBOLT, HUB (FOR FRONT AXLE LH)

main90942-02070×5iUCF30200008-200307

sub90942-02049

43512DISC, FRONT

main43512-50160×2iUCF30200008-200307

main43512-50220×2iUCF30200307-200608

89544BSENSOR, SKID CONTROL, FRONT

main89544-50020×2iUCF30200008-200307

6 parts on this diagram · 1 diagram in section
