Toyota LEXUS LS430 — ASH RECEPTACLE

7401ARMREST & VISOR

→ Go to FIG 74-01

74110ERECEPTACLE ASSY, FRONT ASH

main74110-50080-B0i200008-200307

RIGHTGRAY,TRIM05

main74110-50080-D0i200008-200307

BORDEAUX,TRIM27,29

main74110-50080-E0i200008-200307

MD.BROWN,TRIM04,1#

main74110-50080-E0i200307-200608

MD.BROWN,TRIM1#,21,24,25

main74110-50080-E1i200008-200307

LIGHTBROWN,TRIM03,20

main74110-50080-E1i200307-200608

LIGHTBROWN,TRIM00,07,08

74111BOX, FRONT ASH RECEPTACLE

main74111-50030i200008-200307

74130ARECEPTACLE ASSY, REAR ASH, RH

main74130-50030i200008-200307

74131BBOX, REAR ASH RECEPTACLE, RH

main74131-50020i200008-200608

74132BBOX, REAR ASH RECEPTACLE, LH

main74132-50020i200008-200608

74137BRETAINER, REAR ASH RECEPTACLE, INNER

main74137-50030i200008-200608

74138RETAINER, REAR ASH RECEPTACLE, INNER LH

main74138-50030i200008-200608

74140ARECEPTACLE ASSY, REAR ASH, LH

main74140-50030i200008-200307

74187PROTECTOR, REAR ASH RECEPTACLE

main74187-50010i200008-200608

74188PROTECTOR, REAR ASH RECEPTACLE, NO.2

main74188-50010i200008-200608

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9025403034

main90254-03034

9046710012

main90467-10012

9356814512

main93568-14512

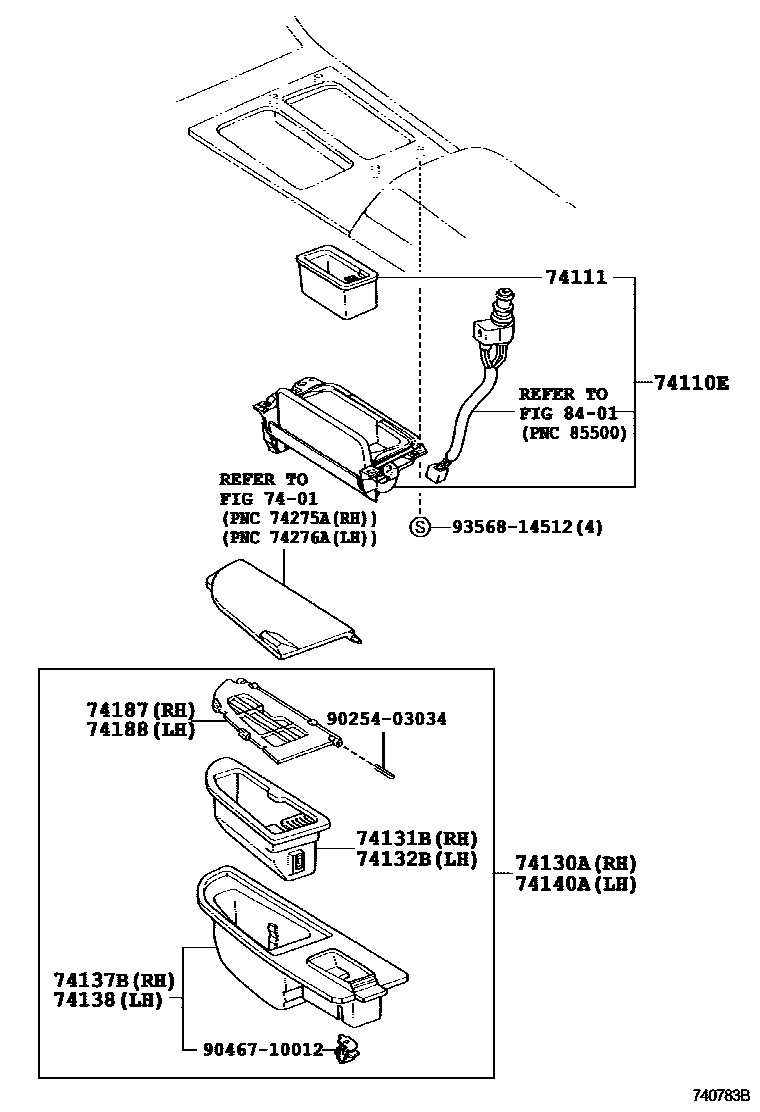

15 parts on this diagram · 1 diagram in section

ASH RECEPTACLE for Toyota LEXUS LS430

This section contains 15 genuine Toyota parts for the ASH RECEPTACLE system of the Toyota LEXUS LS430. Key components include: ARMREST & VISOR, RECEPTACLE ASSY, FRONT ASH, BOX, FRONT ASH RECEPTACLE, RECEPTACLE ASSY, REAR ASH, RH, BOX, REAR ASH RECEPTACLE, RH.
