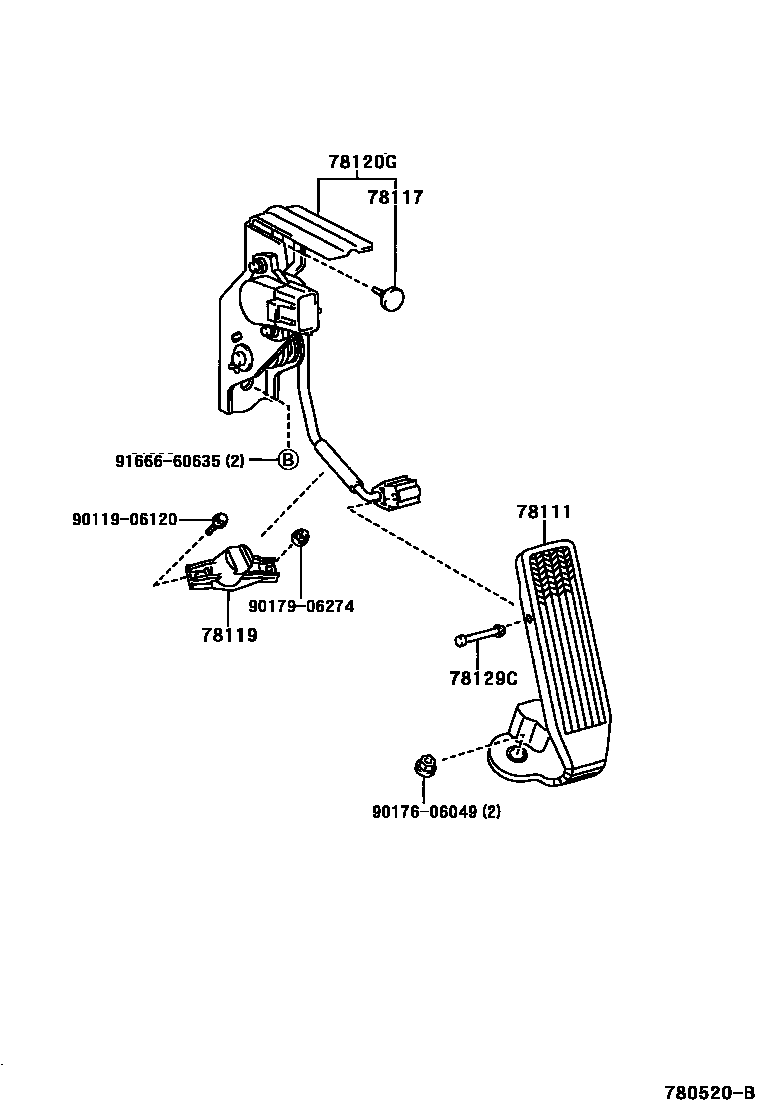

Toyota LEXUS LS430 — ACCELERATOR LINK

78111PEDAL, ACCELERATOR

main78111-50040iUCF30200008-200307

78117CUSHION (FOR ACCELERATOR ROD)

main90541-06008iUCF30200008-200302

main90541-06036iUCF30200302-200307

78119STOPPER, ACCELERATOR PEDAL ROD

main78119-50050iUCF30200008-200307

78120GROD ASSY, ACCELERATOR PEDAL

main78010-50010iUCF30200008-200107

main78010-50011iUCF30200107-200302

main78010-50020iUCF30200302-200307

78129CPIN, ACCELERATOR PEDAL ROD ROLLER

main78129-50010iUCF30200008-200307

9011906120

main90119-06120

9017606049

main90176-06049

9017906274

main90179-06274

9166660635

main91666-60635

9 parts on this diagram · 1 diagram in section
