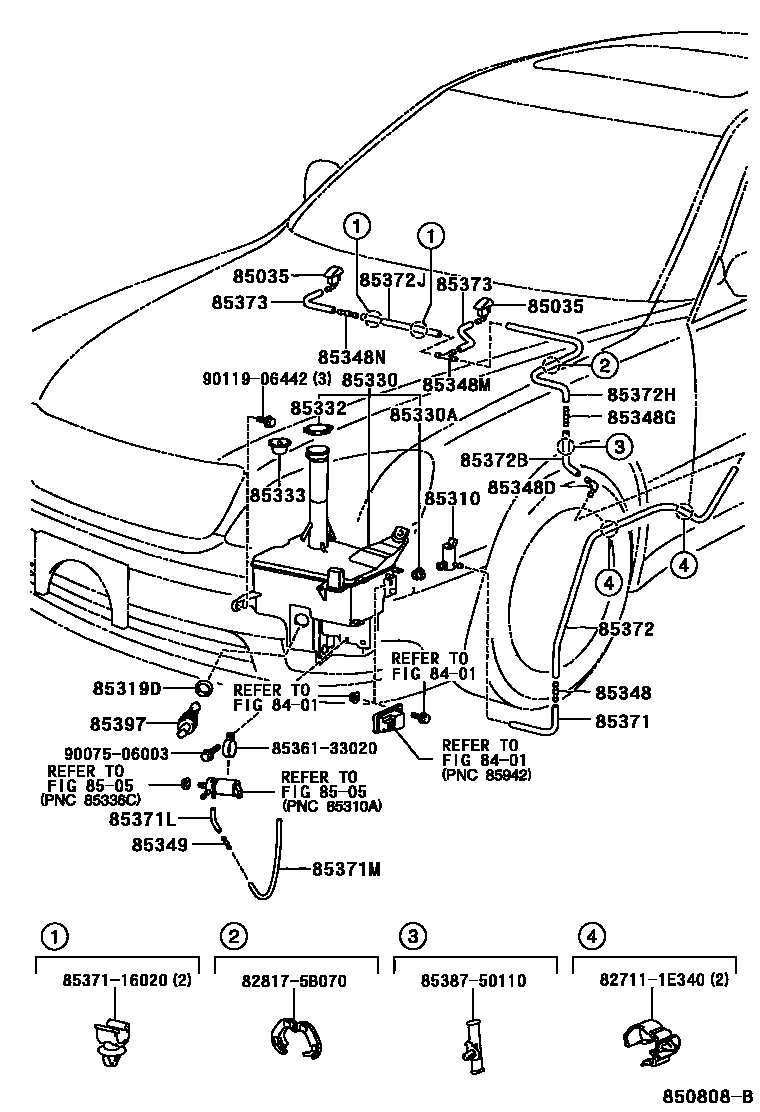

Toyota LEXUS LS430 — WINDSHIELD WASHER

0001 1 0002 1

8401

85035NOZZLE SUB-ASSY, WASHER

main85381-50020-A0×2iUCF30..RHD200008-200307

WHITE PEARL CS.,062

sub85385-51010

sub85381-43010

main85381-50020-A1×2iUCF30..RHD200008-200307

IVORY PEARL CS.,066

sub85385-51010

sub85381-43010

main85381-50020-B0×2iUCF30..RHD200008-200307

SILVER ME.,1C0

sub85385-51010

sub85381-43010

main85381-50020-C0×2iUCF30..RHD200008-200307

BLACK,202

sub85385-51010

sub85381-43010

main85381-50020-D0×2iUCF30..RHD200008-200307

BORDEAUX MC.,3P2

sub85385-51010

sub85381-43010

main85381-50020-D1×2iUCF30..RHD200008-200107

ROSE M.M.,3P4

sub85385-51010

sub85381-43010

main85381-50020-E0×2iUCF30..RHD200008-200307

BEIGE ME.,4P7

sub85385-51010

sub85381-43010

main85381-50020-G0×2iUCF30..RHD200008-200307

GREEN M.M.,6S5

sub85385-51010

sub85381-43010

main85381-50020-G1×2iUCF30..RHD200008-200307

DARK GREEN M.M.,6S6

sub85385-51010

sub85381-43010

main85381-50020-J0×2iUCF30..RHD200008-200307

DARK BLUE MC.,8P8

sub85385-51010

sub85381-43010

main85381-50020-J1×2iUCF30..RHD200107-200307

LT. BLUE M.M.,8P7

sub85385-51010

sub85381-43010

main85381-50030-A0×2iUCF30..LHD200008-200307

WHITE PEARL CS.,062

sub85385-51010

sub85381-43010

main85381-50030-A1×2iUCF30..LHD200008-200307

IVORY PEARL CS.,066

sub85385-51010

sub85381-43010

main85381-50030-B0×2iUCF30..LHD200008-200307

SILVER ME.,1C0

sub85385-51010

sub85381-43010

main85381-50030-C0×2iUCF30..LHD200008-200307

BLACK,202

sub85385-51010

sub85381-43010

main85381-50030-D0×2iUCF30..LHD200008-200307

BORDEAUX MC.,3P2

sub85385-51010

sub85381-43010

main85381-50030-D1×2iUCF30..LHD200008-200107

ROSE M.M.,3P4

sub85385-51010

sub85381-43010

main85381-50030-E0×2iUCF30..LHD200008-200307

BEIGE ME.,4P7

sub85385-51010

sub85381-43010

main85381-50030-G0×2iUCF30..LHD200008-200307

GREEN M.M.,6S5

sub85385-51010

sub85381-43010

main85381-50030-G1×2iUCF30..LHD200008-200307

DARK GREEN M.M.,6S6

sub85385-51010

sub85381-43010

main85381-50030-J0×2iUCF30..LHD200008-200307

DARK BLUE MC.,8P8

sub85385-51010

sub85381-43010

main85381-50030-J1×2iUCF30..LHD200107-200307

LT. BLUE M.M.,8P7

sub85385-51010

sub85381-43010

main85381-50060-A0×2iUCF30200307-200608

WHITE PEARL CS.,062

main85381-50060-A1×2iUCF30200307-200608

SILKY WHITE PEARL CS,072

main85381-50060-B0×2iUCF30200307-200608

DK.GRAY MC.,1E0

main85381-50060-B1×2iUCF30200307-200608

PREMIUM SILVER,1F2

main85381-50060-C0×2iUCF30200307-200608

BLACK,202

main85381-50060-D0×2iUCF30200307-200608

BORDEAUX MC.,3P2

main85381-50060-E0×2iUCF30200307-200608

BEIGE ME.,4P7

main85381-50060-E1×2iUCF30200307-200608

GRAYISH BROWN M.M.,4S1

main85381-50060-G0×2iUCF30200307-200608

OLIVE M.M.,6T7

main85381-50060-J0×2iUCF30200307-200608

DARK BLUE MC.,8P8

8505

85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER

main85330-50030iUCF30200307

85319DPACKING, FRONT WASHER

main85319-33230iUCF30200008-200307

85330JAR ASSY, WINDSHIELD WASHER

main85315-50150iUCF30..LHD..EUR200107-200307

TAIWAN SPEC

main85315-50160iUCF30200008-200307

85330ABUSH, WINDSHIELD WASHER JAR

main90099-32089iUCF30200008-200307

85332CAP, WINDSHIELD WASHER JAR

main85316-42011iUCF30200008-200307

85333FILTER, WINDSHIELD WASHER JAR

main85312-42010iUCF30..ARL,EUR200008-200307

85348JOINT, WINDSHIELD WASHER HOSE, NO.1

main85334-22480iUCF30200008-200307

85348DJOINT, WINDSHIELD WASHER ELBOW, NO.1

main85377-50120iUCF30200008-200307

85348GJOINT, WINDSHIELD WASHER HOSE, NO.2

main85375-50110iUCF30200008-200307

85348MJOINT, WINDSHIELD WASHER HOSE, NO.3

main85348-50030iUCF30200008-200307

85348NJOINT, WINDSHIELD WASHER HOSE, NO.4

main85349-89122iUCF30200008-200307

85349JOINT, WINDSHIELD WASHER HOSE, NO.1

main85349-89122iUCF30200008-200307

85371HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)

main90099-33075iUCF30200008-200307

L=1100(*H,L=180)

85371LHOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)

main85336-12230iUCF30200008-200307

L=15

85371MHOSE, WINDSHIELD WASHER (FROM JOINT TO TANK)

main90075-15016iUCF30200008-200307

L=250

85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1

main90099-33712iUCF30200008-200105

L=1310

85372BHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2

main90099-33075iUCF30200008-200105

L=1100(*H,L=105)

85372HHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.3

main90099-33075iUCF30200008-200105

L=1100(*H,L=590)

85372JHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.4

main90099-33080iUCF30200008-200105

L=1450(*H,L=460)

85373HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)

main90099-33080×2iUCF30200008-200307

L=1450(*H,L=170)

85397SWITCH ASSY,LEVEL WARNING

main85397-33230iUCF30200008-200307

827111E340WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-1E340

828175B070PROTECTOR, WIRING HARNESS, NO.1

main82817-5B070

8536133020HOLDER, WINDSHIELD WASHER

main85361-33020

8537116020HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)

main85371-16020

8538750110CLAMP NO.1 (FOR WINDSEIELD WASHER)

main85387-50110

9007506003

main90075-06003

9011906442

main90119-06442

31 parts on this diagram · 2 diagrams in section
