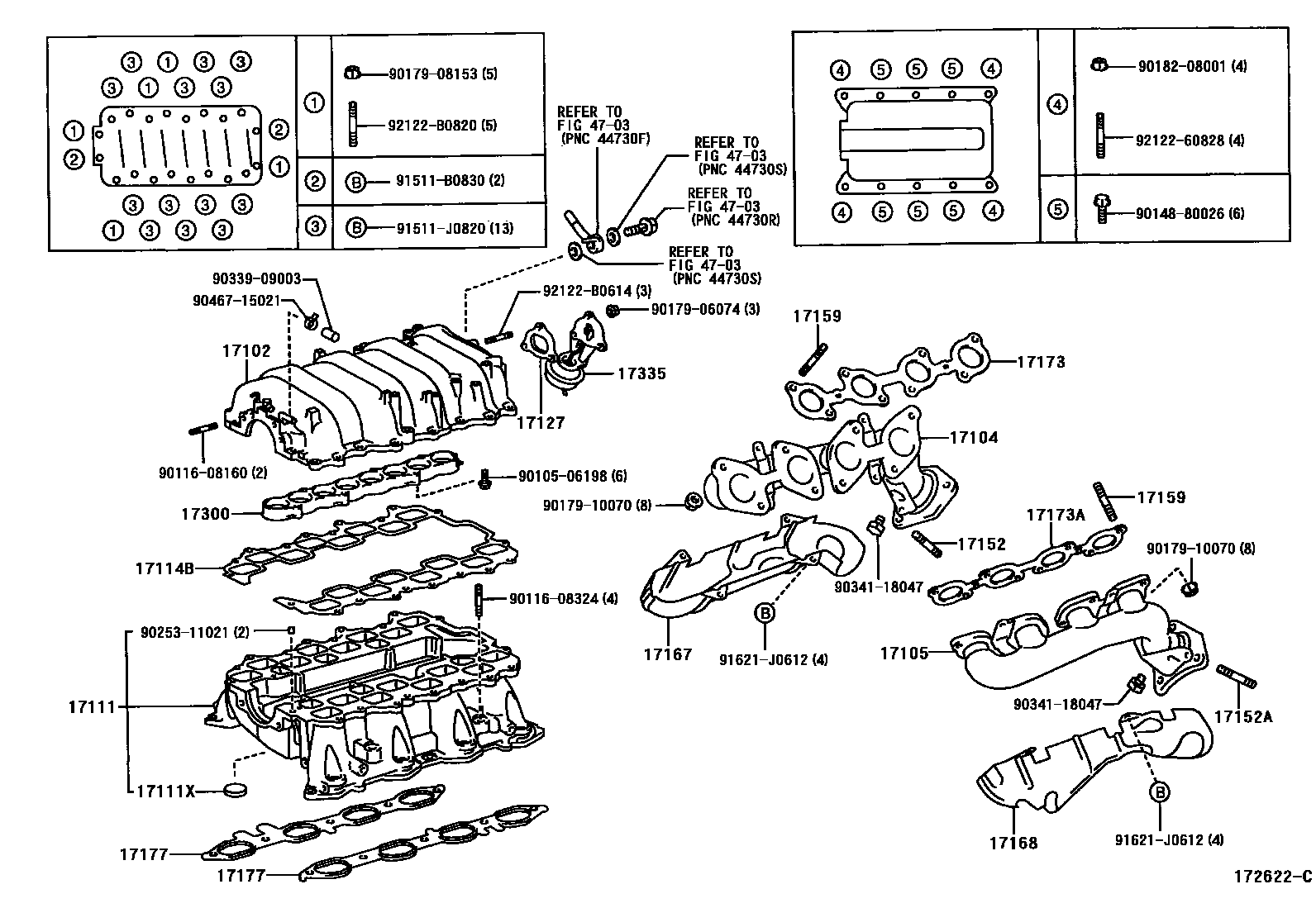

Toyota LEXUS LS430 — MANIFOLD
17102MANIFOLD SUB-ASSY, INTAKE, UPPER
17104MANIFOLD SUB-ASSY, EXHAUST, RH
17105MANIFOLD SUB-ASSY, EXHAUST, LH
17111MANIFOLD, INTAKE
17111XPLUG, TIGHT NO.1(FOR INTAKE MANIFOLD)
17114BGASKET, INTAKE FLANGE
17127GASKET, SURGE TANK COVER
17152BOLT, STUD(FOR MANIFOLD TO EXHAUST PIPE)
17152ABOLT,STUD(FOR MANIFOLD TO EXHAUST PIPE)
17159BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
17167INSULATOR, EXHAUST MANIFOLD HEAT, NO.1
17168INSULATOR, EXHAUST MANIFOLD HEAT, NO.2
17173GASKET, EXHAUST MANIFOLD TO HEAD
17173AGASKET, EXHAUST MANIFOLD TO HEAD, LH
17177GASKET, INTAKE MANIFOLD TO HEAD, NO.1
17300VALVE ASSY, INTAKE AIR CONTROL
17335ACTUATOR, INTAKE AIR CONTROL VALVE
4703BRAKE BOOSTER & VACUUM TUBE
9010506198
main90105-06198
9011608160
main90116-08160
9011608324
main90116-08324
9014880026
main90148-80026
9017906074
main90179-06074
9017908153
main90179-08153
9017910070
main90179-10070
9018208001
main90182-08001
9025311021
main90253-11021
9033909003
main90339-09003
9034118047
main90341-18047
9046715021
main90467-15021
91511B0830
main91511-B0830
91511J0820
main91511-J0820
91621J0612
main91621-J0612
9212260828
main92122-60828
92122B0614
main92122-B0614
92122B0820
main92122-B0820
36 parts on this diagram · 1 diagram in section
MANIFOLD for Toyota LEXUS LS430
This section contains 36 genuine Toyota parts for the MANIFOLD system of the Toyota LEXUS LS430. Key components include: MANIFOLD SUB-ASSY, INTAKE, UPPER, MANIFOLD SUB-ASSY, EXHAUST, RH, MANIFOLD SUB-ASSY, EXHAUST, LH, MANIFOLD, INTAKE, PLUG, TIGHT NO.1(FOR INTAKE MANIFOLD).
