Toyota LEXUS LS430HORN

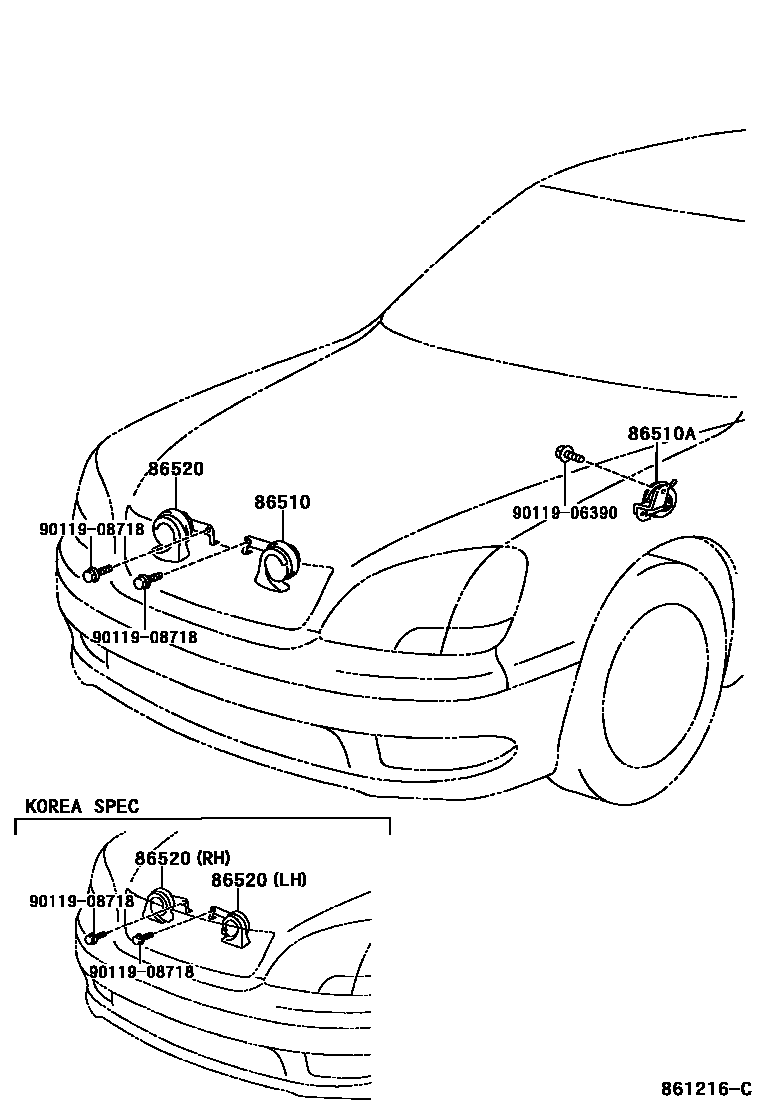

Parts diagram
86510HORN ASSY, HIGH PITCHED
main86510-50150i200307
main86510-50160i200008-200307
main86510-50170i200008-200307
main86510-50190i200307
CHINA SPEC
86510AHORN ASSY, SECURITY
main86510-50120i200008-200307
main86510-50140i200008-200307
86520HORN ASSY, LOW PITCHED
main86520-50090i200008-200307
main86520-50110i200008-200307
main86520-50120i200008-200307
KOREA SPEC,LH
main86520-50150i200307
main86520-50160i200307
CHINA SPEC
main86540-50010i200008-200307
KOREA SPEC,RH
9011906390
9011908718

5 parts on this diagram · 2 diagrams in section

HORN for Toyota LEXUS LS430

This section contains 5 genuine Toyota parts for the HORN system of the Toyota LEXUS LS430. Key components include: HORN ASSY, HIGH PITCHED, HORN ASSY, SECURITY, HORN ASSY, LOW PITCHED.
