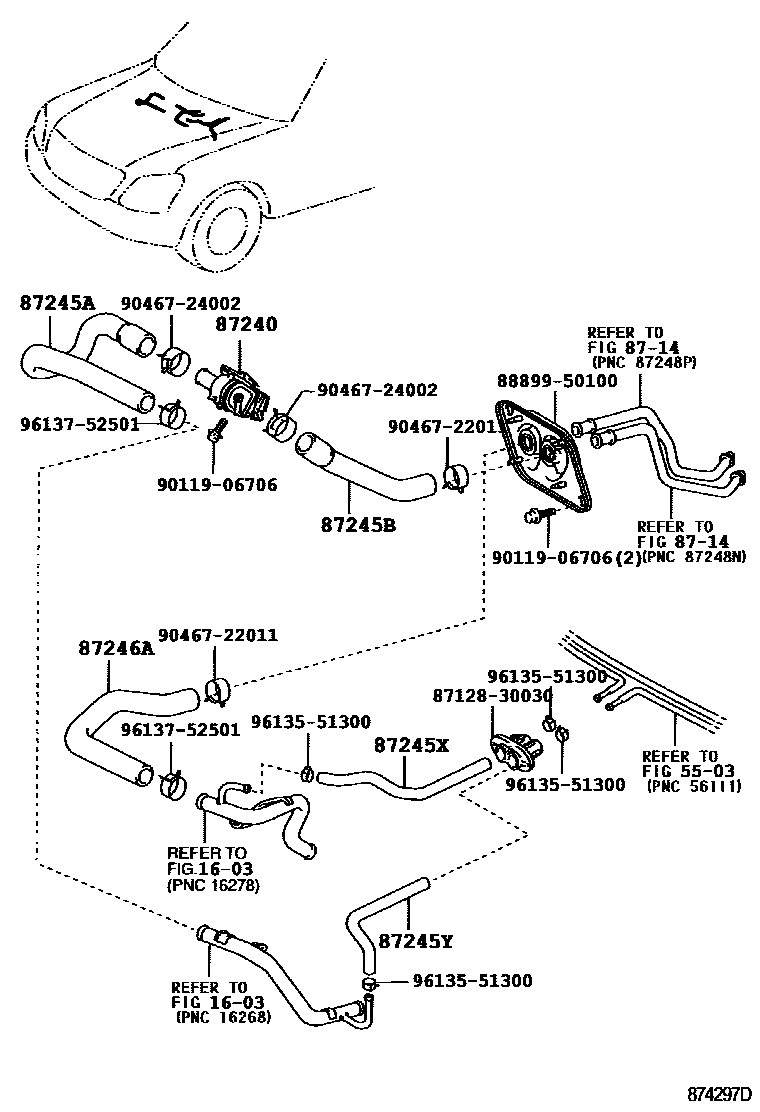

Toyota LEXUS LS430 — HEATING & AIR CONDITIONING - WATER PIPING
1603RADIATOR & WATER OUTLET
5503COWL PANEL & WINDSHIELD GLASS
8714HEATING & AIR CONDITIONING - COOLER UNIT
87240VALVE ASSY, HEATER WATER
87245BHOSE, HEATER WATER, INLET B
87245XHOSE, HEATER WATER
87245YHOSE, HEATER WATER
87246AHOSE, HEATER WATER, OUTLET A
8712830030GROMMET, HEATER
main87128-30030
8889950100COVER, EVAPORATOR
main88899-50100
9011906706
main90119-06706
9046722011
main90467-22011
9046724002
main90467-24002
9613551300
main96135-51300
9613752501
main96137-52501
16 parts on this diagram · 1 diagram in section
HEATING & AIR CONDITIONING - WATER PIPING for Toyota LEXUS LS430
This section contains 16 genuine Toyota parts for the HEATING & AIR CONDITIONING - WATER PIPING system of the Toyota LEXUS LS430. Key components include: RADIATOR & WATER OUTLET, COWL PANEL & WINDSHIELD GLASS, HEATING & AIR CONDITIONING - COOLER UNIT, VALVE ASSY, HEATER WATER, HOSE, HEATER WATER, INLET A.
