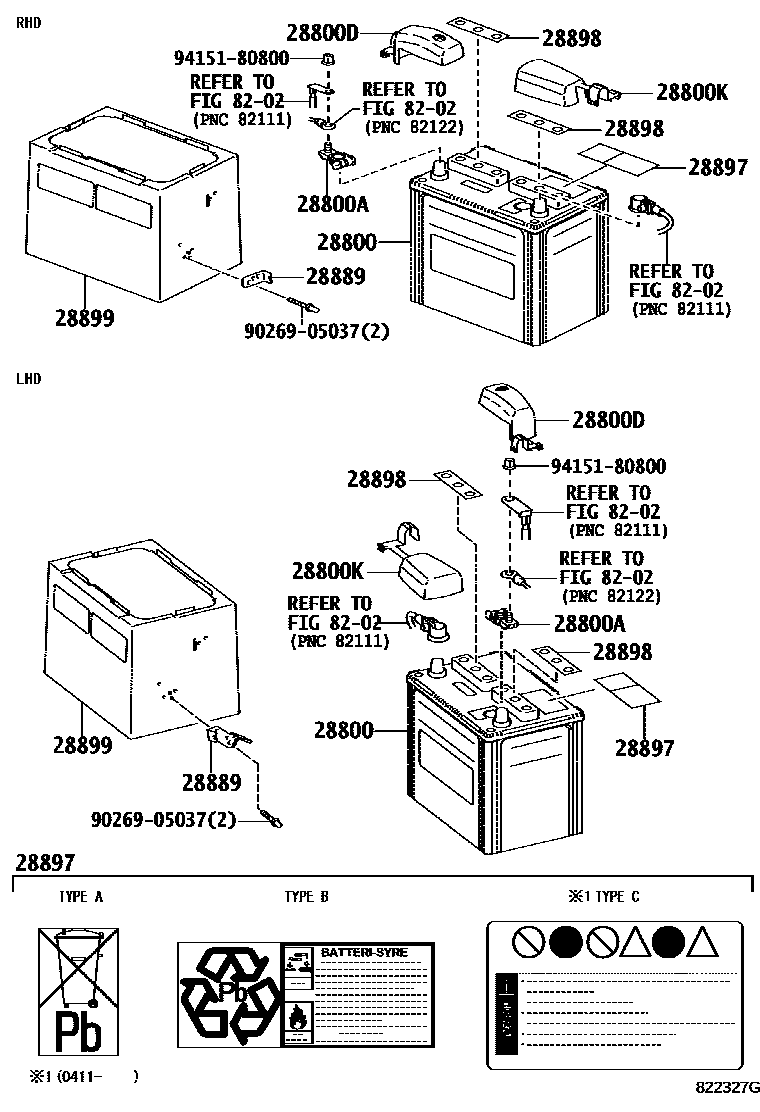

Toyota LEXUS LS430 — BATTERY & BATTERY CABLE

28800BATTERY

main28800-50070i200307

80D26R

main28800-50080i200204-200205

80D26L

main28800-50110i200008-200307

LN3

main28800-64132i200205-200307

80D26L

28800ATERMINAL, BATTERY POSITIVE

main90982-05054i200008-200307

main90982-05056i200008-200307

main90982-05061i200307

main90982-05062i200412

28800DCOVER, CONNECTOR(FOR BATTERY TERMINAL)

main82821-50460i200008-200307

main82821-50470i200008-200307

28800KCOVER, CONNECTOR(FOR BATTERY TERMINAL NEGATIVE)

main82821-50450i200008-200307

28889BRACKET, BATTERY WIRE CLAMP

main28889-50010i200008-200307

main28889-50020i200307

28897PLATE, BATTERY CAUTION

main28897-31010i200411

TYPE C:REFER TO ILLUSTRATION

main28898-46010i200307-200604

TYPE A:REFER TO ILLUSTRATION

main28898-46020i200307

TYPE B:REFER TO ILLUSTRATION

28898PLATE, BATTERY

main28898-50130i200008-200307

28899INSULATOR, BATTERY

main28870-46100i200008-200307

8202WIRING & CLAMP

→ Go to FIG 82-02

9026905037

main90269-05037

9415180800

main94151-80800

11 parts on this diagram · 1 diagram in section

BATTERY & BATTERY CABLE for Toyota LEXUS LS430

This section contains 11 genuine Toyota parts for the BATTERY & BATTERY CABLE system of the Toyota LEXUS LS430. Key components include: BATTERY, TERMINAL, BATTERY POSITIVE, COVER, CONNECTOR(FOR BATTERY TERMINAL), COVER, CONNECTOR(FOR BATTERY TERMINAL NEGATIVE), BRACKET, BATTERY WIRE CLAMP.
