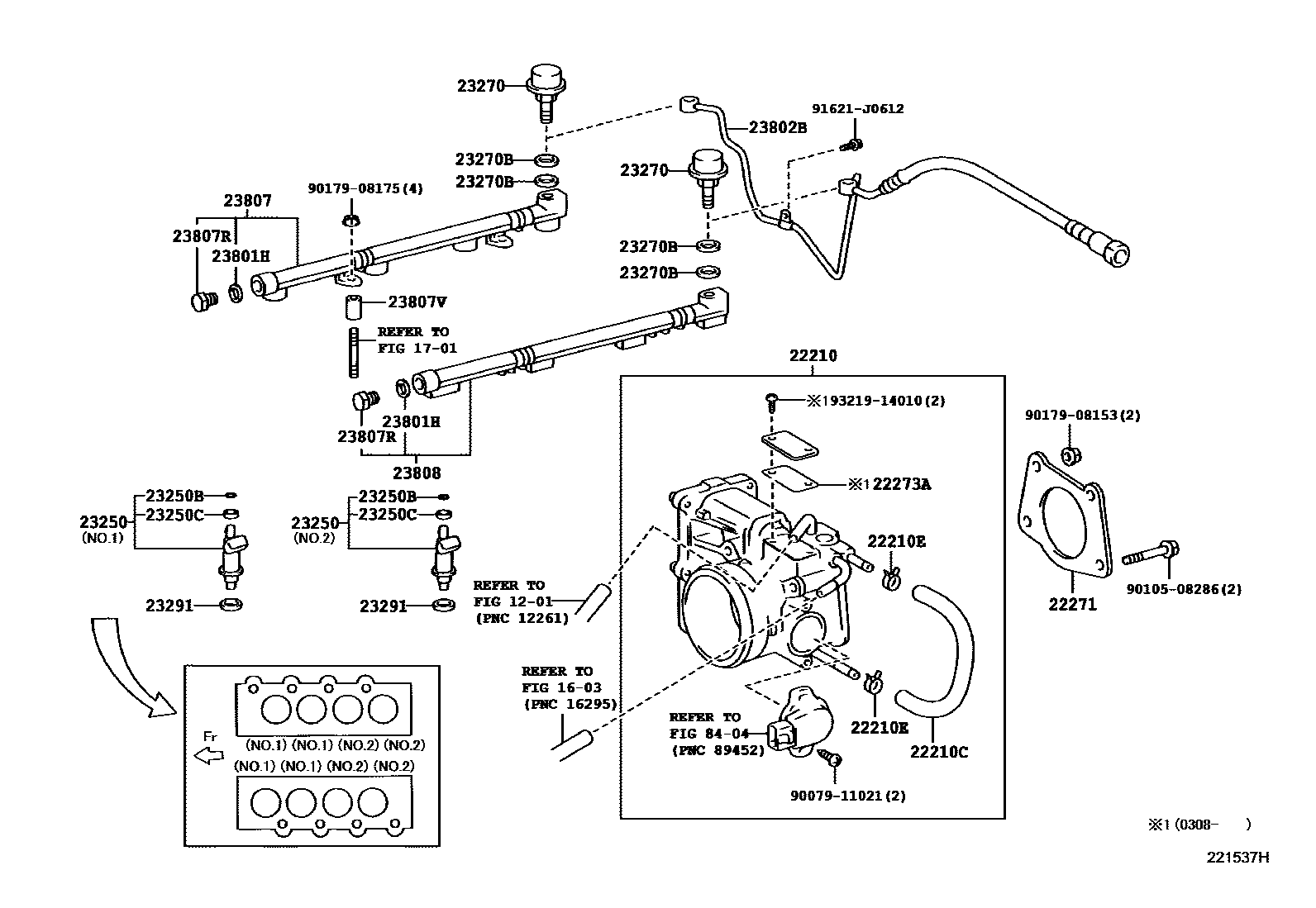

Toyota LEXUS LS430 — FUEL INJECTION SYSTEM
1201VENTILATION HOSE
1603RADIATOR & WATER OUTLET
1701MANIFOLD
22210CHOSE, WATER BY-PASS, NO.1
*H,L=210
22210ECLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE, NO.1)
22271GASKET, THROTTLE BODY
22273AGASKET, THROTTLE BODY, NO.2
23250INJECTOR ASSY, FUEL
NO.1
NO.2
NO.1
NO.2
23250BRING, O(FOR FUEL INJECTOR)
INTAKE MANIFOLD SIDE
INTAKE MANIFOJD SIDE
DELIVERY PIPE SIDE
23250CGROMMET(FOR FUEL INJECTOR)
23270DAMPER ASSY, FUEL PRESSURE PULSATION
23270BGASKET(FOR PULSATION DAMPER HOSE)
DAMPER SIDE
DELIVERY PIPE SIDE
23291INSULATOR, INJECTOR VIBRATION
23801HGASKET(FOR FUEL PIPE)
23802BPIPE SUB-ASSY, FUEL, NO.2
23807PIPE SUB-ASSY, FUEL DELIVERY
SOUTH AFRICA SPEC
23807RPLUG, FUEL DELIVARY PIPE
23807VSPACER, NO.1(FOR DELIVERY PIPE)
23808PIPE SUB-ASSY, FUEL DELIVERY, NO.2
SOUTH AFRICA SPEC
8404ELECTRONIC FUEL INJECTION SYSTEM
9007911021
main90079-11021
9010508286
main90105-08286
9017908153
main90179-08153
9017908175
main90179-08175
91621J0612
main91621-J0612
9321914010
main93219-14010
27 parts on this diagram · 2 diagrams in section
FUEL INJECTION SYSTEM for Toyota LEXUS LS430
This section contains 38 genuine Toyota parts for the FUEL INJECTION SYSTEM system of the Toyota LEXUS LS430. Key components include: VENTILATION HOSE, RADIATOR & WATER OUTLET, MANIFOLD, BODY ASSY, THROTTLE, HOSE, WATER BY-PASS, NO.1.
