Toyota LEXUS LS430 — FRONT DOOR WINDOW REGULATOR & HINGE

68710HINGE ASSY, FRONT DOOR, UPPER RH

main68710-50040i200008-200608

68720HINGE ASSY, FRONT DOOR, UPPER LH

main68720-50040i200008-200608

68730HINGE ASSY, FRONT DOOR, LOWER RH

main68730-50030i200008-200608

68740HINGE ASSY, FRONT DOOR, LOWER LH

main68740-50030i200008-200608

69801REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH

main69801-50030i200008-200307

69802REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH

main69802-50030i200008-200307

85710EMOTOR ASSY, POWER WINDOW REGULATOR, RH

main85710-50080i200008-200307

85720DMOTOR ASSY, POWER WINDOW REGULATOR, LH

main85720-50080i200008-200307

9010506260

main90105-06260

9010508187

main90105-08187

9011906620

main90119-06620

9016850040

main90168-50040

9151281025

main91512-81025

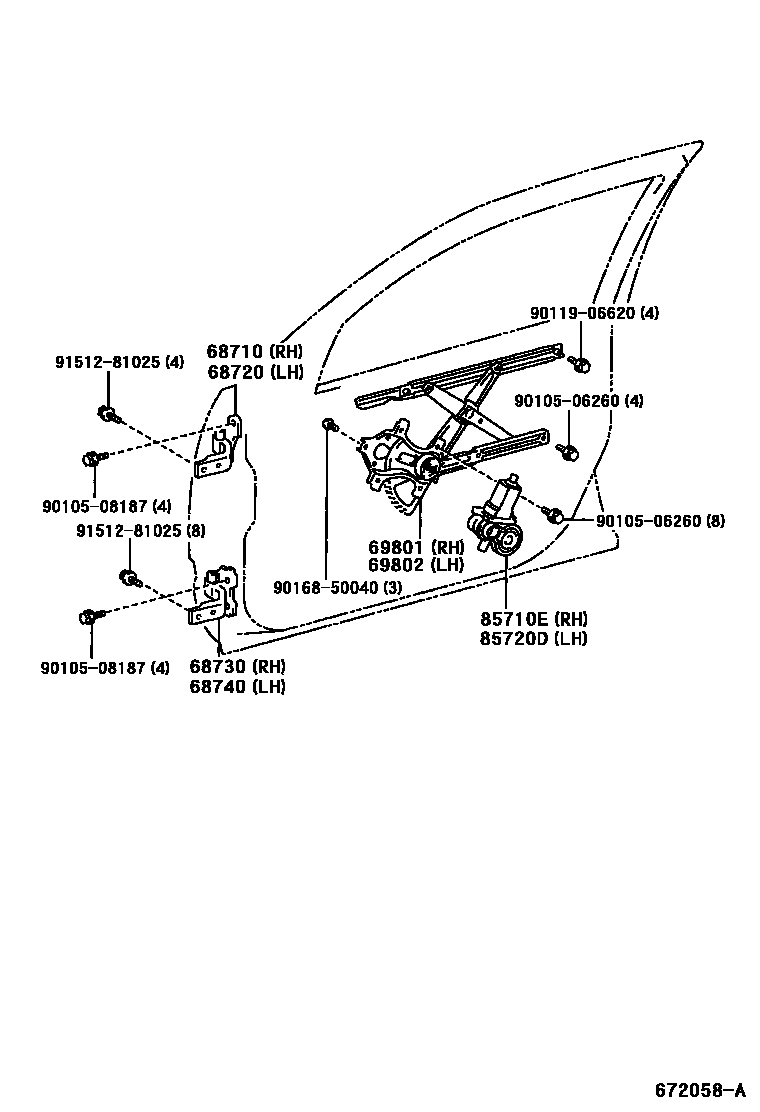

13 parts on this diagram · 1 diagram in section

FRONT DOOR WINDOW REGULATOR & HINGE for Toyota LEXUS LS430

This section contains 13 genuine Toyota parts for the FRONT DOOR WINDOW REGULATOR & HINGE system of the Toyota LEXUS LS430. Key components include: HINGE ASSY, FRONT DOOR, UPPER RH, HINGE ASSY, FRONT DOOR, UPPER LH, HINGE ASSY, FRONT DOOR, LOWER RH, HINGE ASSY, FRONT DOOR, LOWER LH, REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH.
