Toyota LEXUS LS430 — ANTENNA

86101CORD SUB-ASSY, ANTENNA

main86705-50140i200307

TAPE COLOR = RED

main86705-50200i200008-200307

TAPE COLOR = GRAY

main86705-50210i200008-200109

TAPE COLOR = BLUE

main86705-50220i200307

TAPE COLOR = GREEN

main86705-50280i200307

TAPE COLOR = PINK

86860CANTENNA ASSY, NAVIGATION

main86860-50060i200008-200107

main86860-50080i200307

9015950327

main90159-50327

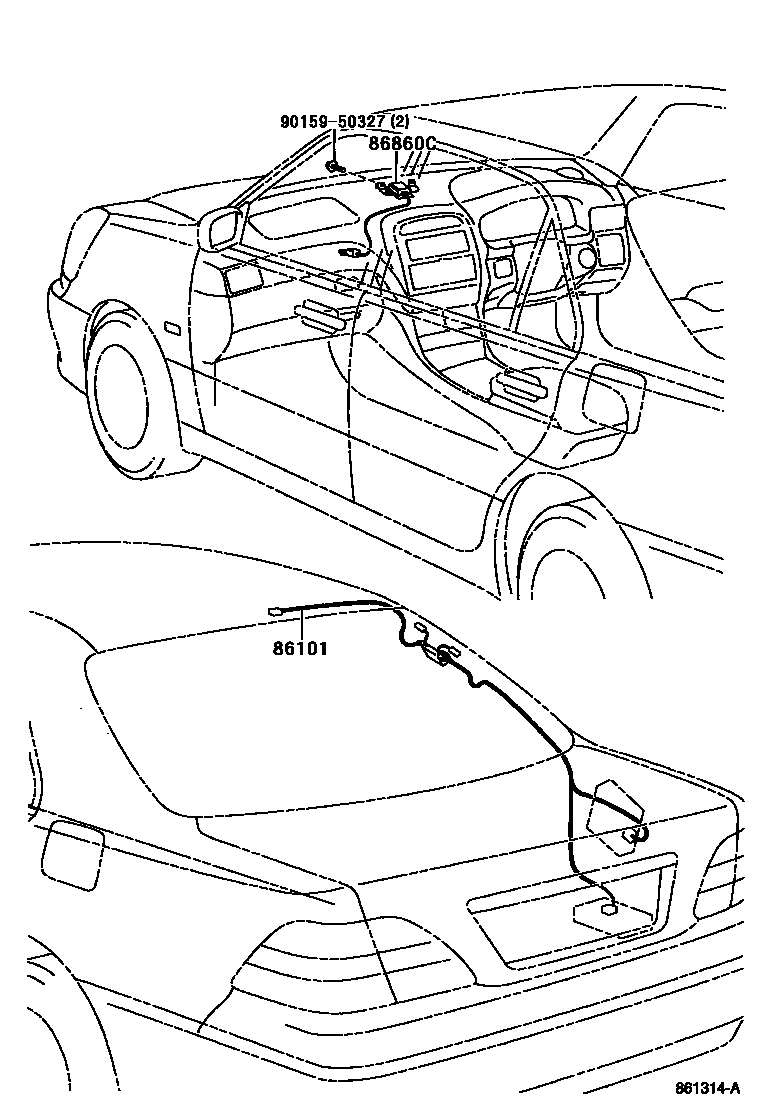

3 parts on this diagram · 1 diagram in section

ANTENNA for Toyota LEXUS LS430

This section contains 3 genuine Toyota parts for the ANTENNA system of the Toyota LEXUS LS430. Key components include: CORD SUB-ASSY, ANTENNA, ANTENNA ASSY, NAVIGATION.
