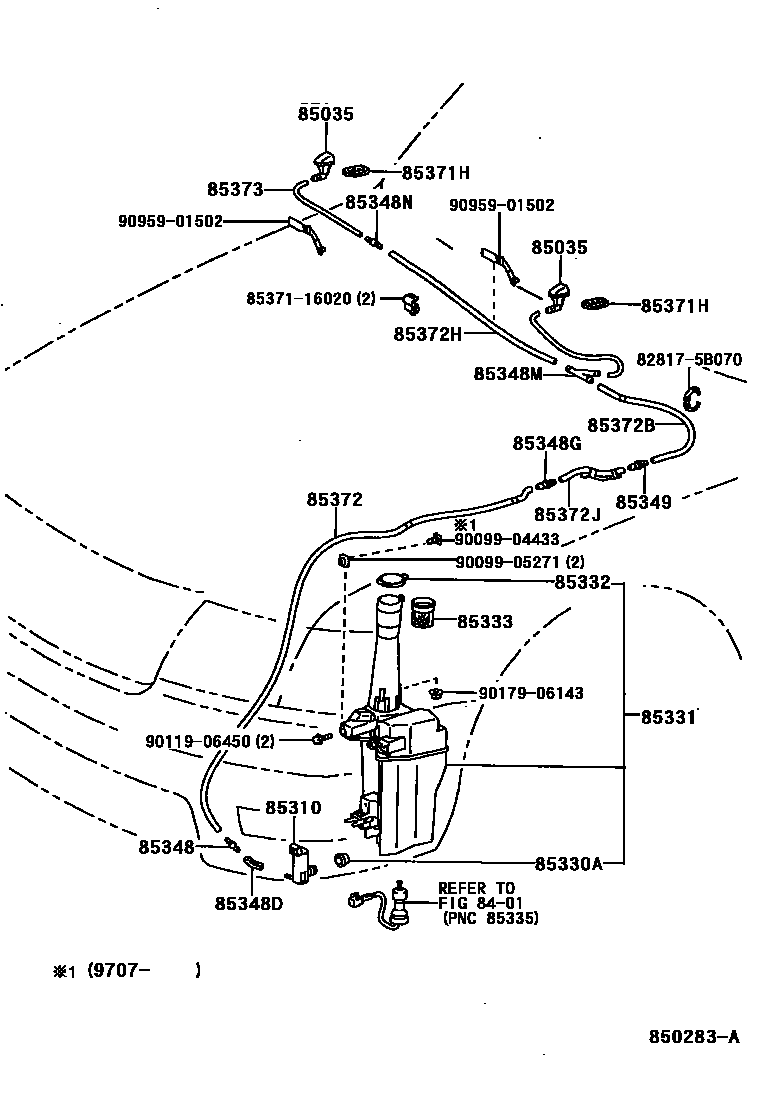

Toyota LEXUS LS400 — WINDSHIELD WASHER

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

85035NOZZLE SUB-ASSY, WASHER

main85385-50050-A0×2i199410-199908

SU.WHITE PM,051

main85385-50050-A1×2i199704-199707

COACH EDITION,WARM GRAY PM,046

main85385-50050-B0×2i199410-199908

SILVER ME,199

main85385-50050-B1×2i200001-200007

LEXUS 10TH ANNIVERSARY EDITION(USA/HAWAII/P.RICO/CANADA),SILVER ME.,K73

main85385-50050-C0×2i200001-200007

LEXUS 10TH ANNIVERSARY EDITION(USA/HAWAII/P.RICO/CANADA),BLACK,KA3

main85385-50050-D0×2i199707

ROSE RED MC.,3M9

main85385-50050-E0×2i199410-199808

BEIGE ME.,4M9

main85385-50050-E1×2i199508-199707

GRAYISH BROWN ME.,4N1

main85385-50050-E2×2i199707

COPPER BROWN M.M.MS,4P1

main85385-50050-E3×2i199808

BEIGE ME.,4P7

main85385-50050-E4×2i200001-200007

LEXUS 10TH ANNIVERSARY EDITION(USA/HAWAII/P.RICO/CANADA),BEIGE SF.,KF3

main85385-50050-G0×2i199410-199707

GRAYISH GREEN M.M.,6N0

main85385-50050-G1×2i199410-199707

DK.GREEN MC.P.I.O.,6N9

main85385-50050-G2×2i199707-199908

LT.GREEN ME. OP.,6P7

main85385-50050-G3×2i199707

DK.GREEN MC,6Q7

main85385-50050-G4×2i199508-199707

DK.GREEN M.,6P3

main85385-50050-J0×2i199410-199707

DK.BLUE MC.,8L1

main85385-50050-J1×2i199707

DK.BLUE MC,8L4

main85385-50050-K0×2i199410-199608

DK.ROSE MC.,929

main85385-50050-K1×2i199707-199908

AMETHYST ME,941

85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER

main85330-50010i199410-199707

main85330-50030i199707

85330ABUSH, WINDSHIELD WASHER JAR

main90099-32089i199410

85331JAR SUB-ASSY, WINDSHIELD WASHER

main85315-50090i199410-199707

main85315-50100i199410-199707

main85315-50120i199707

main85355-50050i199707

85332CAP, WINDSHIELD WASHER JAR

main85316-16070i199410-199707

main85316-33050i199707

85333FILTER, WINDSHIELD WASHER JAR

main85333-12470i199410

85348JOINT, WINDSHIELD WASHER HOSE, NO.1

main85334-22480i199410

85348DJOINT, WINDSHIELD WASHER ELBOW, NO.1

main85355-32110i199410

85348GJOINT, WINDSHIELD WASHER HOSE, NO.2

main85349-50030i199410

85348MJOINT, WINDSHIELD WASHER HOSE, NO.3

main85348-50030i199410

85348NJOINT, WINDSHIELD WASHER HOSE, NO.4

main85349-89122i199410

85349JOINT, WINDSHIELD WASHER HOSE, NO.1

main85334-22480i199410

85371HCOVER, WASHER NOZZLE SERVICE HOLE

main85371-50010×2i199410

85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1

main90099-33906i199410

L=1550

85372BHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2

main90099-33080i199410

L=1450(*H,L=850)

85372HHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.3

main90099-33080i199410

L=1450(*H,L=420)

85372JHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.4

main85376-50020i199410

85373HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)

main90099-33080×2i199410-199707

L=1450(*H,L=220)

828175B070PROTECTOR, WIRING HARNESS, NO.1

main82817-5B070

8537116020HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)

main85371-16020

9009904433

main90099-04433

9009905271

main90099-05271

9011906450

main90119-06450

9017906143

main90179-06143

9095901502

main90959-01502

26 parts on this diagram · 1 diagram in section

WINDSHIELD WASHER for Toyota LEXUS LS400

This section contains 26 genuine Toyota parts for the WINDSHIELD WASHER system of the Toyota LEXUS LS400. Key components include: SWITCH & RELAY & COMPUTER, NOZZLE SUB-ASSY, WASHER, MOTOR AND PUMP ASSY, WINDSHIELD WASHER, BUSH, WINDSHIELD WASHER JAR, JAR SUB-ASSY, WINDSHIELD WASHER.
