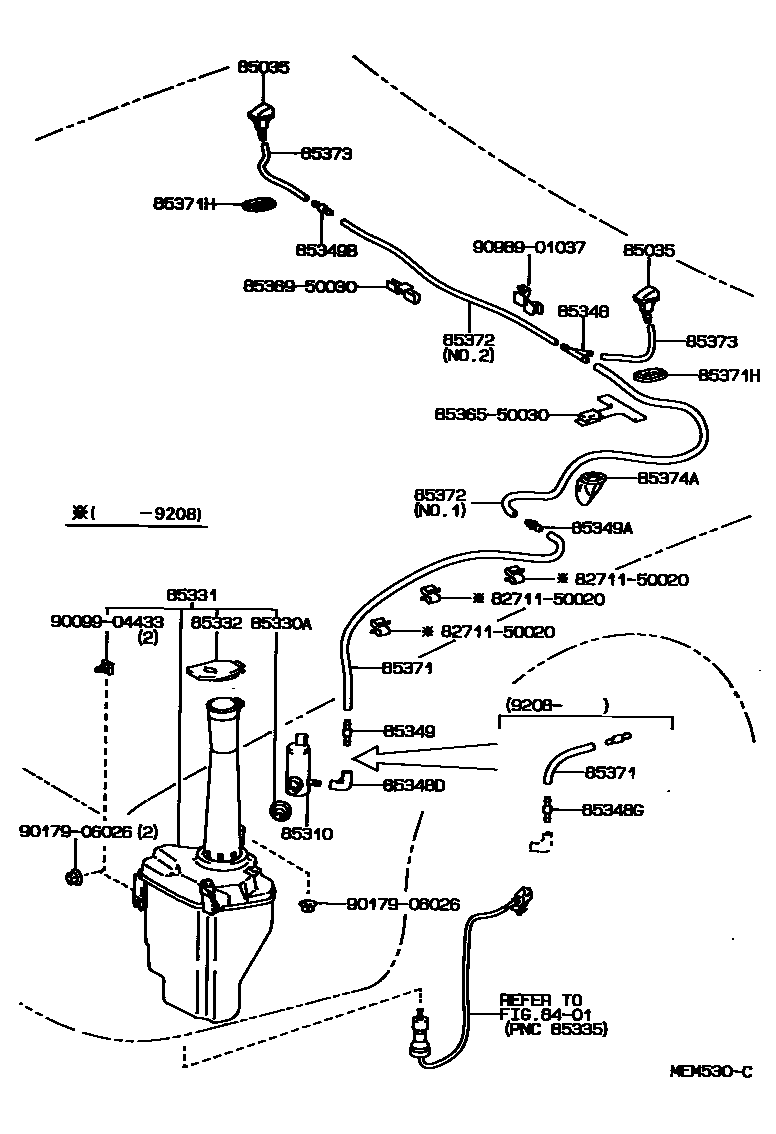

Toyota LEXUS LS400 — WINDSHIELD WASHER
8401SWITCH & RELAY & COMPUTER
85035NOZZLE SUB-ASSY, WASHER
BLACK,202
DEEP RED MICA,3H8
BLUISH GRAY MICA M,172
BEIGE METALLIC,4K9
DARK BROWN MICA,4K8
DARK GREEN M.I.O.,6K4
WHITE PEARL MICA,051
GRAYISH ROSE MICA M,3H9
SUPER SILVER 3 M,176
GRAY MICA METALLIC,180
THE 5TH ANNIVERSARY,WARM GRAY PM.,046
SILVER ME.,199
LI.RE.BROWN ME,4K7
DK.BLUE MCFP,8J5
GRAYISH PURPLE M,923
LI.RE.BROWN ME,4K7
THE 5TH ANNIVERSARY,DK.BLUE MCFP,8J5
85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER
W(HEADLAMP CLEANER)
85330ABUSH, WINDSHIELD WASHER JAR
85331JAR SUB-ASSY, WINDSHIELD WASHER
W(HEADLAMP CLEANER)
85332CAP, WINDSHIELD WASHER JAR
85348JOINT, WINDSHIELD WASHER HOSE, NO.1
85348DJOINT, WINDSHIELD WASHER ELBOW, NO.1
85348GJOINT, WINDSHIELD WASHER HOSE, NO.2
85349JOINT, WINDSHIELD WASHER HOSE, NO.1
85349AJOINT, WINDSHIELD WASHER HOSE, NO.2
85349BJOINT, WINDSHIELD WASHER HOSE, NO.3
85371HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)
L=1100
L=2000
L=1570
L=1440
L=1450
85371HCOVER, WASHER NOZZLE SERVICE HOLE
85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1
L=1450,NO.2
L=1450(*H,L=490),NO.2
L=1100(*H,L=720),NO.1
85373HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)
L=1450
85374APROTECTOR, WASHER HOSE
8271150020WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-50020
8536550030INSULATOR, WINDSHIELD WASHER JAR
main85365-50030
8536950030CLAMP
main85369-50030
9009904433
main90099-04433
9017906026
main90179-06026
9098901037
main90989-01037
23 parts on this diagram · 1 diagram in section
WINDSHIELD WASHER for Toyota LEXUS LS400
This section contains 23 genuine Toyota parts for the WINDSHIELD WASHER system of the Toyota LEXUS LS400. Key components include: SWITCH & RELAY & COMPUTER, NOZZLE SUB-ASSY, WASHER, MOTOR AND PUMP ASSY, WINDSHIELD WASHER, BUSH, WINDSHIELD WASHER JAR, JAR SUB-ASSY, WINDSHIELD WASHER.
