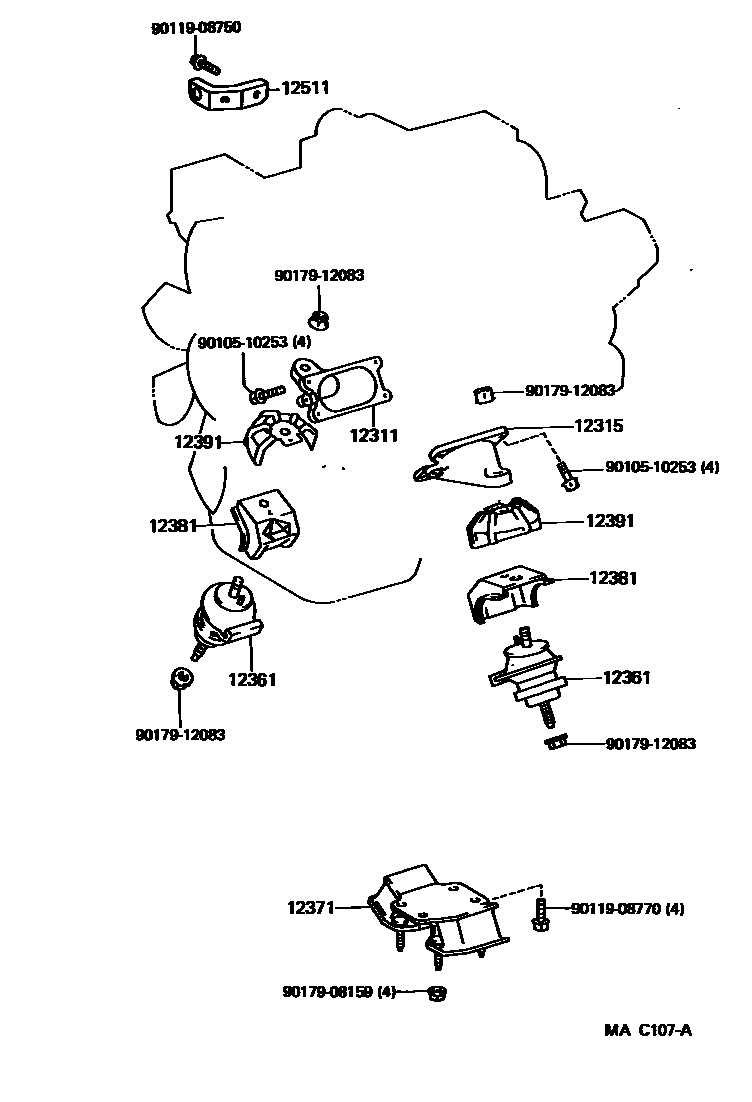

Toyota LEXUS LS400 — MOUNTING

12311BRACKET, ENGINE MOUNTING, FRONT NO.1 RH

main12311-50020i198905-199410

12315BRACKET, ENGINE MOUNTING, FRONT NO.1 LH

main12315-50010i198905-199410

12361INSULATOR, ENGINE MOUNTING, FRONT

main12361-50020×2i198905-199402

main12361-50021×2i199402-199410

12371INSULATOR, ENGINE MOUNTING, REAR NO.1

main12371-50010i198905-199410

12381STABILIZER, ENGINE MOUNTING

main12381-50010×2i198905-199402

main12381-50040×2i199402-199410

12391INSULATOR, ENGINE MOUNTING FRONT, HEAT, RH

main12391-50010×2i198905-199208

main12391-50020×2i199208-199410

12511BRACKET, ALTERNATOR, NO.1

main12511-50020i198905-199410

9010510253

main90105-10253

9011908750

main90119-08750

9011908770

main90119-08770

9017908159

main90179-08159

9017912083

main90179-12083

12 parts on this diagram · 1 diagram in section

MOUNTING for Toyota LEXUS LS400

This section contains 12 genuine Toyota parts for the MOUNTING system of the Toyota LEXUS LS400. Key components include: BRACKET, ENGINE MOUNTING, FRONT NO.1 RH, BRACKET, ENGINE MOUNTING, FRONT NO.1 LH, INSULATOR, ENGINE MOUNTING, FRONT, INSULATOR, ENGINE MOUNTING, REAR NO.1, STABILIZER, ENGINE MOUNTING.
