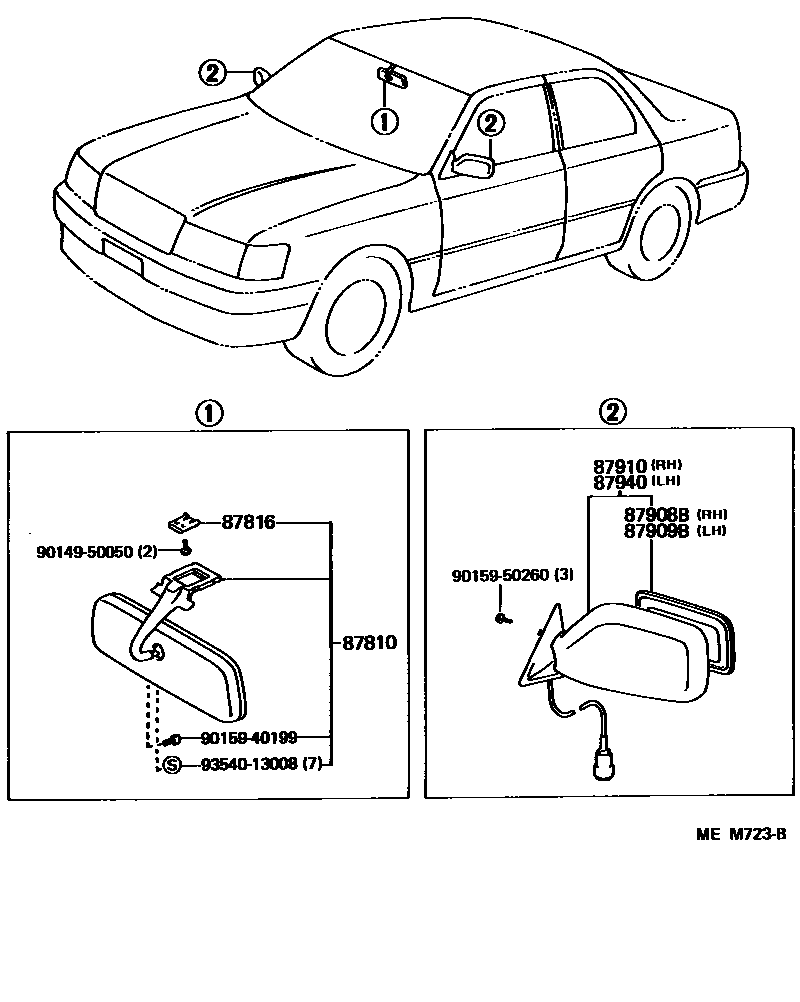

Toyota LEXUS LS400 — MIRROR

87810MIRROR ASSY, INNER REAR VIEW

main87810-50010-02i198905-199103

RED,TRIM3#

main87810-50010-03i198905-199208

SHADOW GRAY,TRIM1#

main87810-50010-04i198905-199208

DARK BLUE,TRIM8#

main87810-50010-05i198905-199208

GREIGE,TRIM0#

main87810-50010-06i198905-199208

DARK ROSE,TRIM4#

main87810-50040-B0i199208-199410

SHADOW GRAY,TRIM1#

main87810-50040-C0i199208-199410

BLACK,TRIM2#

main87810-50040-E0i199208-199410

IVORY,TRIM0#

main87810-50040-J0i199208-199410

DK.BLUE,TRIM8#

main87810-50040-K0i199208-199410

TAUPE,TRIM9#

87816SPRING, INNER REAR VIEW MIRROR

main74372-50010i198905-199410

87908BMIRROR SUB-ASSY, RH

main87931-50010i198905-199008

main87931-50011i199008-199410

87909BMIRROR SUB-ASSY, LH

main87961-50010i198905-199008

main87961-50011i199008-199208

main87961-50040i199208-199410

87910MIRROR ASSY, OUTER REAR VIEW, RH

main87910-50010-01i198905-199004

BLACK,202

main87910-50010-02i198905-199004

DEEP RED MICA,3H8

main87910-50010-03i198905-199004

BLUISH GRAY MICA M,172

main87910-50010-05i198905-199004

BEIGE METALLIC,4K9

main87910-50010-06i198905-199004

DARK BROWN MICA,4K8

main87910-50010-07i198905-199004

DARK GREEN M.I.O.,6K4

main87910-50010-08i198905-199004

WHITE PEARL MICA,051

main87910-50010-12i198905-199004

GRAYISH ROSE MICA M,3H9

main87910-50010-13i198905-199004

SUPER SILVER 3 M,176

main87910-50010-23i198905-199004

GRAY MICA,180

main87910-50011-01i199004-199208

BLACK,202

main87910-50011-02i199004-199208

DARK RED MICA,3H8

main87910-50011-03i199004-199208

BLUEISH GRAY MICA M,172

main87910-50011-05i199004-199208

BEIGE M,4K9

main87910-50011-06i199004-199208

DARK BROWN MICA,4K8

main87910-50011-07i199004-199208

DARK GREEN M.I.O.,6K4

main87910-50011-08i199004-199208

WHITE PEARL MICA,051

main87910-50011-12i199004-199208

GRAYISH ROSE MICA M,3H9

main87910-50011-13i199004-199208

SUPER SILVER 3 M,176

main87910-50011-23i199004-199208

GRAY MICA M,180

main87910-50040-A0i199208-199410

SU.WHITE PM.,051

main87910-50040-B0i199208-199308

SUPER SILVE 3 M,176

main87910-50040-B1i199208-199410

GRAY MICA M,180

main87910-50040-B2i199308-199410

SILVER ME.,199

main87910-50040-C0i199208-199410

BLACK,202

main87910-50040-E0i199208-199410

LI.RE.BROWN ME,4K7

main87910-50040-E1i199208-199410

BEIGE MM,4K9

main87910-50040-G0i199208-199410

DK.GREEN MI,6K4

main87910-50040-J0i199208-199410

DK.BLUE MCFP,8J5

main87910-50040-K0i199208-199410

GRAYISH PURPLE M,923

main87910-50050-A0i199208-199410

SU.WHITE PM.,051; W(MEMORY ADJUST SYSTEM),SU.WHITE PM.,051

main87910-50050-A1i199403-199406

THE 5TH ANNIVERSARY,WARM GRAY PM.,046

main87910-50050-B0i199208-199308

SUPER SILVER 3 M,176; W(MEMORY ADJUST SYSTEM),SUPER SILVER 3 M,176

main87910-50050-B1i199208-199410

GRAY MICA M,180; W(MEMORY ADJUST SYSTEM),GRAY MICA M,180

main87910-50050-B2i199308-199410

SILVER ME.,199; W(MEMORY ADJUST SYSTEM),SILVER ME.,199

main87910-50050-C0i199208-199410

BLACK,202; W(MEMORY ADJUST SYSTEM),BLACK,202

main87910-50050-E0i199208-199410

LI.RE.BROWN ME,4K7; W(MEMORY ADJUST SYSTEM),LI.RE.BROWN ME,4K7

main87910-50050-E1i199208-199410

BEIGE MM,4K9; W(MEMORY ADJUST SYSTEM),BEIGE MM,4K9

main87910-50050-G0i199208-199410

DK.GREEN MI,6K4; W(MEMORY ADJUST SYSTEM),DK.GREEN MI,6K4

main87910-50050-J0i199403-199406

THE 5TH ANNIVERSARY,DK.BLUE MCFP,8J5

main87910-50050-K0i199208-199410

W(MEMORY ADJUST SYSTEM),GRAYISH PURPLE M,923

main87910-50070-01i198905-199004

W(MEMORY ADJUST SYSTEM),BLACK,202

main87910-50070-02i198905-199004

W(MEMORY ADJUST SYSTEM),DEEP RED MICA,3H8

main87910-50070-03i198905-199004

W(MEMORY ADJUST SYSTEM),BLUISH GRAY MICA M,172

main87910-50070-05i198905-199004

W(MEMORY ADJUST SYSTEM),BEIGE METALLIC,4K9

main87910-50070-06i198905-199004

W(MEMORY ADJUST SYSTEM),DARK BROWN MICA,4K8

main87910-50070-07i198905-199004

W(MEMORY ADJUST SYSTEM),DARK GREEN M.I.O.,6K4

main87910-50070-08i198905-199004

W(MEMORY ADJUST SYSTEM),WHITE PEARL MICA,051

main87910-50070-12i198905-199004

W(MEMORY ADJUST SYSTEM),GRAYISH ROSE MICA M,3H9

main87910-50070-13i198905-199004

W(MEMORY ADJUST SYSTEM),SUPER SILVER 3 M,176

main87910-50070-23i198905-199004

W(MEMORY ADJUST SYSTEM),GRAY MICA,180

main87910-50071-01i199004-199208

W(MEMORY ADJUST SYSTEM),BLACK,202

main87910-50071-02i199004-199208

W(MEMORY ADJUST SYSTEM),DARK RED MICA,3H8

main87910-50071-03i199004-199208

W(MEMORY ADJUST SYSTEM),BLUEISH GRAY MICA M,172

main87910-50071-05i199004-199208

W(MEMORY ADJUST SYSTEM),BEIGE M,4K9

main87910-50071-06i199004-199208

W(MEMORY ADJUST SYSTEM),DARK BROWN MICA,4K8

main87910-50071-07i199004-199208

W(MEMORY ADJUST SYSTEM),DARK GREEN M.I.O.,6K4

main87910-50071-08i199004-199208

W(MEMORY ADJUST SYSTEM),WHITE PEARL MICA,051

main87910-50071-12i199004-199208

W(MEMORY ADJUST SYSTEM),GRAYISH ROSE MICA M,3H9

main87910-50071-13i199004-199208

W(MEMORY ADJUST SYSTEM),SUPER SILVER 3 M,176

main87910-50071-23i199004-199208

W(MEMORY ADJUST SYSTEM),GRAY MICA M,180

87940MIRROR ASSY, OUTER REAR VIEW, LH

main87940-50010-01i198905-199004

BLACK,202

main87940-50010-02i198905-199004

DEEP RED MICA,3H8

main87940-50010-03i198905-199004

BLUISH GRAY MICA M,172

main87940-50010-05i198905-199004

BEIGE METALLIC,4K9

main87940-50010-06i198905-199004

DARK BROWN MICA,4K8

main87940-50010-07i198905-199004

DARK GREEN M.I.O.,6K4

main87940-50010-08i198905-199004

WHITE PEARL MICA,051

main87940-50010-12i198905-199004

GRAYISH ROSE MICA M,3H9

main87940-50010-13i198905-199004

SUPER SILVER 3 M,176

main87940-50010-23i198905-199004

GRAY MICA,180

main87940-50011-01i199004-199208

BLACK,202

main87940-50011-02i199004-199208

DARK RED MICA,3H8

main87940-50011-03i199004-199208

BLUEISH GRAY MICA M,172

main87940-50011-05i199004-199208

BEIGE M,4K9

main87940-50011-06i199004-199208

DARK BROWN MICA,4K8

main87940-50011-07i199004-199208

DARK GREEN M.I.O.,6K4

main87940-50011-08i199004-199208

WHITE PEARL MICA,051

main87940-50011-12i199004-199208

GRAYISH ROSE MICA M,3H9

main87940-50011-13i199004-199208

SUPER SILVER 3 M,176

main87940-50011-23i199004-199208

GRAY MICA M,180

main87940-50040-A0i199208-199410

SU.WHITE PM.,051

main87940-50040-B0i199208-199308

SUPER SILVER 3 M,176

main87940-50040-B1i199208-199410

GRAY MICA M,180

main87940-50040-B2i199308-199410

SILVER ME.,199

main87940-50040-C0i199208-199410

BLACK,202

main87940-50040-E0i199208-199410

LI.RE.BROWN ME,4K7

main87940-50040-E1i199208-199410

BEIGE MM,4K9

main87940-50040-G0i199208-199410

DK.GREEN MI,6K4

main87940-50040-J0i199208-199410

DK.BLUE MCFP,8J5

main87940-50040-K0i199208-199410

GRAYISH PERPLE M,923

main87940-50050-A0i199208-199410

SU.WHITE PM.,051; W(MEMORY ADJUST SYSTEM),SU.WHITE PM.,051

main87940-50050-A1i199403-199406

THE 5TH ANNIVERSARY,WARM GRAY PM.,046

main87940-50050-B0i199208-199308

SUPER SILVER 3 M,176; W(MEMORY ADJUST SYSTEM),SUPER SILVER 3 M,176

main87940-50050-B1i199208-199410

GRAY MICA M,180; W(MEMORY ADJUST SYSTEM),GRAY MICA M,180

main87940-50050-B2i199308-199410

SILVER ME.,199; W(MEMORY ADJUST SYSTEM),SILVER ME.,199

main87940-50050-C0i199208-199410

BLACK,202; W(MEMORY ADJUST SYSTEM),BLACK,202

main87940-50050-E0i199208-199410

LI.RE.BROWN ME,4K7; W(MEMORY ADJUST SYSTEM),LI.RE.BROWN ME,4K7

main87940-50050-E1i199208-199410

BEIGE MM,4K9; W(MEMORY ADJUST SYSTEM),BEIGE MM,4K9

main87940-50050-G0i199208-199410

DK.GREEN MI,6K4; W(MEMORY ADJUST SYSTEM),DK.GREEN MI,6K4

main87940-50050-J0i199208-199410

DK.BLUE MCFP,8J5; W(MEMORY ADJUST SYSTEM),DK.BLUE MCFP,8J5

main87940-50050-K0i199308-199410

GRAYISH PURPLE M,923

main87940-50070-01i198905-199004

W(MEMORY ADJUST SYSTEM),BLACK,202

main87940-50070-02i198905-199004

W(MEMORY ADJUST SYSTEM),DEEP RED MICA,3H8

main87940-50070-03i198905-199004

W(MEMORY ADJUST SYSTEM),BLUISH GRAY MICA M,172

main87940-50070-05i198905-199004

W(MEMORY ADJUST SYSTEM),BEIGE METALLIC,4K9

main87940-50070-06i198905-199004

W(MEMORY ADJUST SYSTEM),DARK BROWN MICA,4K8

main87940-50070-07i198905-199004

W(MEMORY ADJUST SYSTEM),DARK GREEN M.I.O.,6K4

main87940-50070-08i198905-199004

W(MEMORY ADJUST SYSTEM),WHITE PEARL MICA,051

main87940-50070-12i198905-199004

W(MEMORY ADJUST SYSTEM),GRAYISH ROSE MICA M,3H9

main87940-50070-13i198905-199004

W(MEMORY ADJUST SYSTEM),SUPER SILVER 3 M,176

main87940-50070-23i198905-199004

W(MEMORY ADJUST SYSTEM),GRAY MICA,180

main87940-50071-01i199004-199208

W(MEMORY ADJUST SYSTEM),BLACK,202

main87940-50071-02i199004-199208

W(MEMORY ADJUST SYSTEM),DARK RED MICA,3H8

main87940-50071-03i199004-199208

W(MEMORY ADJUST SYSTEM),BLUEISH MICA M,172

main87940-50071-05i199004-199208

W(MEMORY ADJUST SYSTEM),BEIGE M,4K9

main87940-50071-06i199004-199208

W(MEMORY ADJUST SYSTEM),DARK BROWN MICA,4K8

main87940-50071-07i199004-199208

W(MEMORY ADJUST SYSTEM),DARK GREEN M.I.O.,6K4

main87940-50071-08i199004-199208

W(MEMORY ADJUST SYSTEM),WHITE PEARL MICA,051

main87940-50071-12i199004-199208

W(MEMORY ADJUST SYSTEM),GRAYISH ROSE MICA M,3H9

main87940-50071-13i199004-199208

W(MEMORY ADJUST SYSTEM),SUPER SILVER 3 M,176

main87940-50071-23i199004-199208

W(MEMORY ADJUST SYSTEM),GRAY MICA M,180

9014950050

main90149-50050

9015940199

main90159-40199

9015950260

main90159-50260

9354013008

main93540-13008

10 parts on this diagram · 1 diagram in section

MIRROR for Toyota LEXUS LS400

This section contains 10 genuine Toyota parts for the MIRROR system of the Toyota LEXUS LS400. Key components include: MIRROR ASSY, INNER REAR VIEW, SPRING, INNER REAR VIEW MIRROR, MIRROR SUB-ASSY, RH, MIRROR SUB-ASSY, LH, MIRROR ASSY, OUTER REAR VIEW, RH.
