Toyota LEXUS LS400 — METER

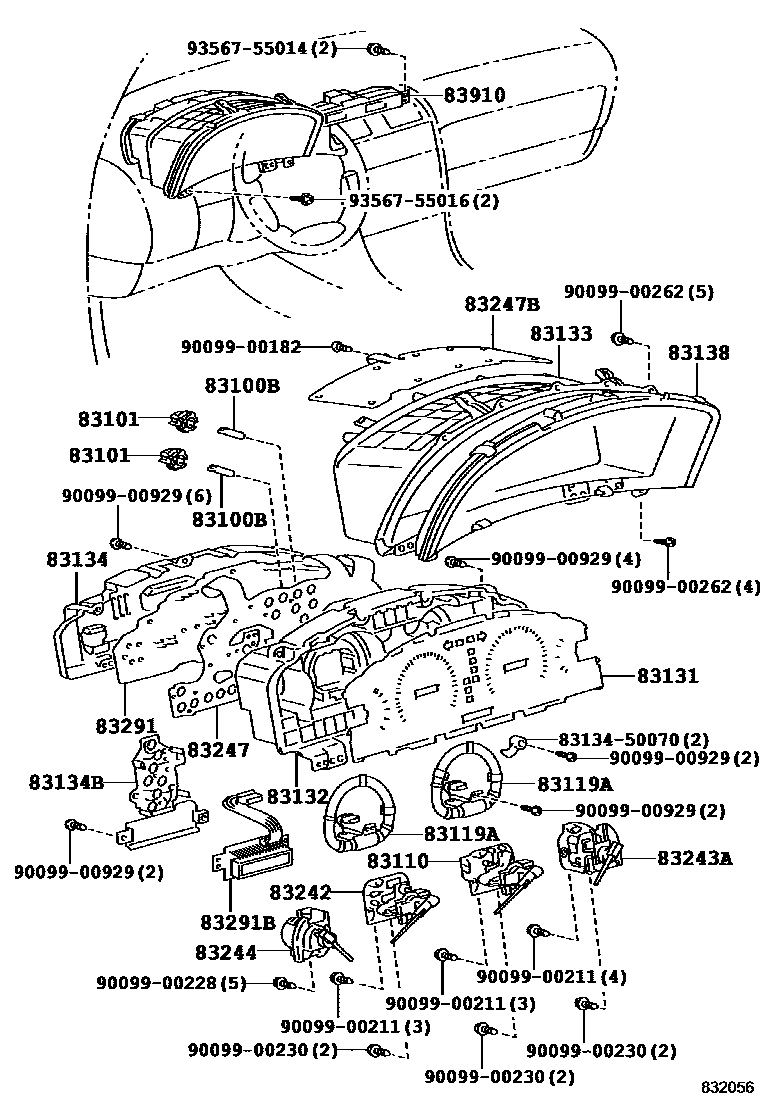

Parts diagram

83100BBULB, COMBINATION METER, NO.1

main83101-20080i199608-199707

12V 1.4W,W(SOCKET)

main83109-30070×5i199608-199707

14V 2.0W,W/O SOCKET

main90981-11018×24i199410-199608

12V 1.2W W/O SOCKET; 12V 1.2W W/O SOCKET,TAIWAN SPEC & W(*TRC)

83101SOCKET SUB-ASSY, COMBINATION METER BULB

main83101-14040×24i199410-199608

BULB:12V 1.4W; TAIWAN SPEC & W(*TRC),BULB:12V 1.4W

main83101-30050×4i199410-199608

BULB:14V 2.0W

83110SPEEDOMETER ASSY

main83110-50380i199410-199707

main83110-50390i199410-199707

TAIWAN SPEC

main83220-50010i199707

main83220-50020i199707

TAIWAN SPEC

83119ATUBE,CATHODE

main83119-50110i199410

SPEEDOMETER SIDE

main83119-50130i199410

TACHOMETER SIDE

83131DIAL, METER, NO.1

main83131-5A190i199410-199608

W(TRACTION CONTROL)

main83131-5A191i199608-199707

W(TRACTION CONTROL)

main83131-5A210i199410-199608

main83131-5A211i199608-199707

main83131-5A230i199410-199608

TAIWAN SPEC & W(*TRC)

main83131-5A231i199608-199707

TAIWAN SPEC & W(*TRC)

main83225-50010i199707

main83225-50020i199707

TAIWAN SPEC

83132CASE, COMBINATION METER

main83132-50270i199410-199608

main83132-50271i199608-199707

main83841-50010i199707

main83841-50020i199707

TAIWAN SPEC

83133PLATE, COMBINATION METER, NO.1

main83133-50130i199410

83134COVER, COMBINATION METER, NO.1

main83134-50350i199410-199707

main83821-50010i199707

83134BCOVER, COMBINATION METER, NO.2

main83134-50390i199410-199707

main83822-50010i199707

83138GLASS, SPEEDOMETER

main83138-50090i199410

83242TACHOMETER ASSY, ENGINE

main83242-50070i199410-199707

main83881-50010i199707

83243AGAUGE SUB-ASSY, FUEL RECEIVER

main83243-50110i199410-199707

main83882-50010i199707

83244GAUGE SUB-ASSY, WATER TEMPERATURE RECEIVER

main83244-50130i199410-199707

main83883-50010i199707

83247PLATE, METER CIRCUIT

main83247-5A430i199410-199608

main83247-5A431i199608-199707

83247BPLATE, METER CIRCUIT, NO.2

main83247-5A510i199410

83291COMPUTER, COMBINATION METER

main83291-50100i199410-199608

main83291-50101i199608-199609

main83291-50102i199609-199707

main83291-50110i199410-199608

TAIWAN SPEC & W(*TRC)

main83291-50111i199608-199610

TAIWAN SPEC & W(*TRC)

main83291-50112i199610-199707

TAIWAN SPEC & W(*TRC)

83291BCOMPUTER ASSY

main83247-5A470i199410-199707

main83862-50010i199707

83910CLOCK ASSY

main83910-50010i199410-199510

main83910-50011i199510-199606

main83910-50012i199606-199707

8313450070COVER, COMBINATION METER, NO.1

main83134-50070

9009900182

main90099-00182

9009900211

main90099-00211

9009900228

main90099-00228

9009900230

main90099-00230

9009900262

main90099-00262

9009900929

main90099-00929

9356755014

main93567-55014

9356755016

main93567-55016

27 parts on this diagram · 3 diagrams in section

METER for Toyota LEXUS LS400

This section contains 35 genuine Toyota parts for the METER system of the Toyota LEXUS LS400. Key components include: BULB, COMBINATION METER, NO.1, SOCKET SUB-ASSY, COMBINATION METER BULB, SPEEDOMETER ASSY, TUBE,CATHODE, DIAL, METER, NO.1.
