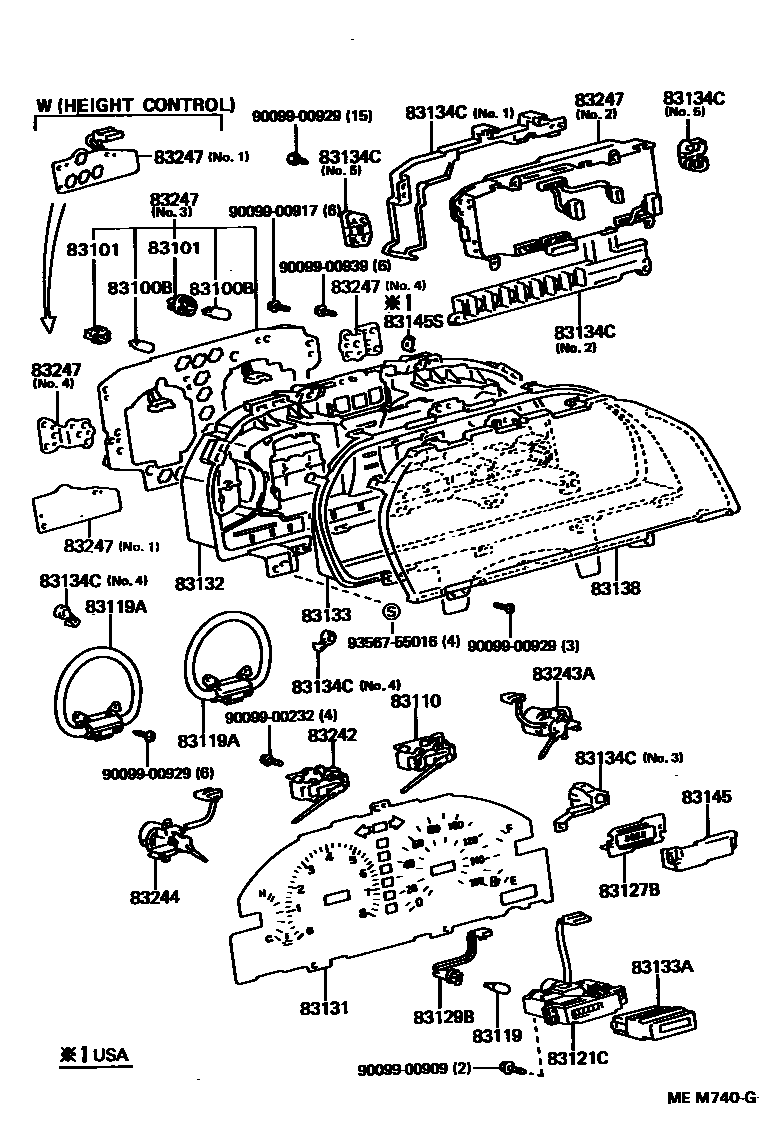

Toyota LEXUS LS400 — METER
83100BBULB, COMBINATION METER, NO.1
14V 2.0W,W/O SOCKET
14V 3.0W
14V 3.0W,LONG LIFE
12V 1.2W W/O SOCKET
83101SOCKET SUB-ASSY, COMBINATION METER BULB
12V 1.4W
14V 2.0W
14V 3.0W
83110SPEEDOMETER ASSY
83119BULB, COMBINATION METER, NO.3
14V 3.0W,W(CAP)
83129BSOCKET SUB-ASSY, METER BULB
83131DIAL, METER, NO.1
W(AIR SUSPENSION & *TRC)
W(AIR SUSPENSION)
W(TRACTION CONTROL)
W(TRACTION CONTROL)
W(AIR SUSPENSION)
W(AIR SUSPENSION & *TRC)
W(AIR SUSPENSION)
W(AIR SUSPENSION & *TRC)
W(TRACTION CONTROL)
83132CASE, COMBINATION METER
W(AIR SUSPENSION)
W(AIR SUSPENSION)
83133PLATE, COMBINATION METER, NO.1
83133APLATE, COMBINATION METER, NO.2
83134CCOVER, SPEEDOMETER
NO.1
NO.2
NO.3
NO.4
NO.5
NO.1
NO.2
NO.3
83145STERMINAL
83243AGAUGE SUB-ASSY, FUEL RECEIVER
83244GAUGE SUB-ASSY, WATER TEMPERATURE RECEIVER
83247PLATE, METER CIRCUIT
NO.1
W(AIR SUSPENSION) OR W(AIR SUSPENSION & *TRC),NO.1
NO.4
NO.2
NO.3
W(TRACTION CONTROL),NO.3
W(AIR SUSPENSION),NO.3
W(AIR SUSPENSION & *TRC),NO.3
NO.2
NO.3
W(TRACTION CONTROL),NO.3
W(AIR SUSPENSION),NO.3
W(AIR SUSPENSION & *TRC),NO.3
W(AIR SUSPENSION) OR W(AIR SUSPENSION & *TRC),NO.1
NO.3
NO.5
NO.4
NO.1
NO.1
W(AIR SUSPENSION),NO.2
W(AIR SUSPENSION & *TRC),NO.2
NO.2
NO.2; W(TRACTION CONTROL),NO.2
9009900232
main90099-00232
9009900909
main90099-00909
9009900917
main90099-00917
9009900929
main90099-00929
9009900939
main90099-00939
9356755016
main93567-55016
26 parts on this diagram · 3 diagrams in section
METER for Toyota LEXUS LS400
This section contains 34 genuine Toyota parts for the METER system of the Toyota LEXUS LS400. Key components include: BULB, COMBINATION METER, NO.1, SOCKET SUB-ASSY, COMBINATION METER BULB, SPEEDOMETER ASSY, BULB, COMBINATION METER, NO.3, TUBE,CATHODE.
