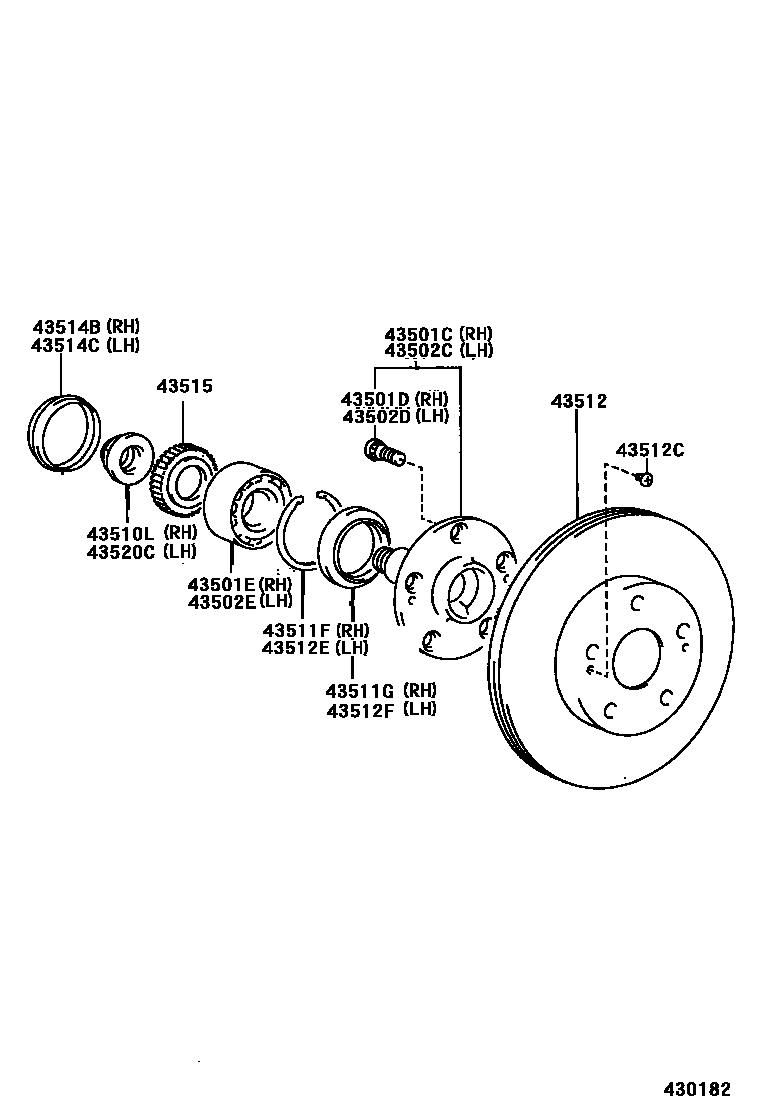

Toyota LEXUS LS400 — FRONT AXLE HUB

43501CHUB SUB-ASSY, FRONT AXLE, RH

main43502-50021i199410

43501DBOLT, HUB (FOR FRONT AXLE RH)

main90942-02070×5i199410

43501EBEARING (FOR FRONT AXLE HUB RH)

main90903-63006i199410-199707

main90903-63011i199707

43502CHUB SUB-ASSY, FRONT AXLE, LH

main43502-50021i199410

43502DBOLT, HUB (FOR FRONT AXLE LH)

main90942-02070×5i199410

43502EBEARING (FOR FRONT AXLE HUB LH)

main90903-63006i199410-199707

main90903-63011i199707

43510LNUT (FOR STEERING KNUCKLE RH)

main90179-24005i199410

43511FRING, HOLE SNAP (FOR FRONT AXLE HUB RH)

main90521-82001i199410

43511GSEAL, OIL (FOR FRONT AXLE HUB OUTER RH)

main90311-50016i199410

43512DISC, FRONT

main43512-50130×2i199410-199511

main43512-50150×2i199511-199607

main43512-50151×2i199607-199704

main43512-50152×2i199704

43512CSCREW (FOR FRONT DISC)

main90155-60002×2i199410-199707

43512ERING, HOLE SNAP (FOR FRONT AXLE HUB LH)

main90521-82001i199410

43512FSEAL, OIL (FOR FRONT AXLE HUB OUTER LH)

main90311-50016i199410

43514BCAP, FRONT AXLE HUB GREASE, RH

main43514-50010i199410

43514CCAP, FRONT AXLE HUB GREASE, LH

main43514-50010i199410

43515ROTOR, SKID CONTROL, FRONT

main43515-50010×2i199410

43520CNUT (FOR STEERING KNUCKLE LH)

main90179-24005i199410

17 parts on this diagram · 1 diagram in section

FRONT AXLE HUB for Toyota LEXUS LS400

This section contains 17 genuine Toyota parts for the FRONT AXLE HUB system of the Toyota LEXUS LS400. Key components include: HUB SUB-ASSY, FRONT AXLE, RH, BOLT, HUB (FOR FRONT AXLE RH), BEARING (FOR FRONT AXLE HUB RH), HUB SUB-ASSY, FRONT AXLE, LH, BOLT, HUB (FOR FRONT AXLE LH).
