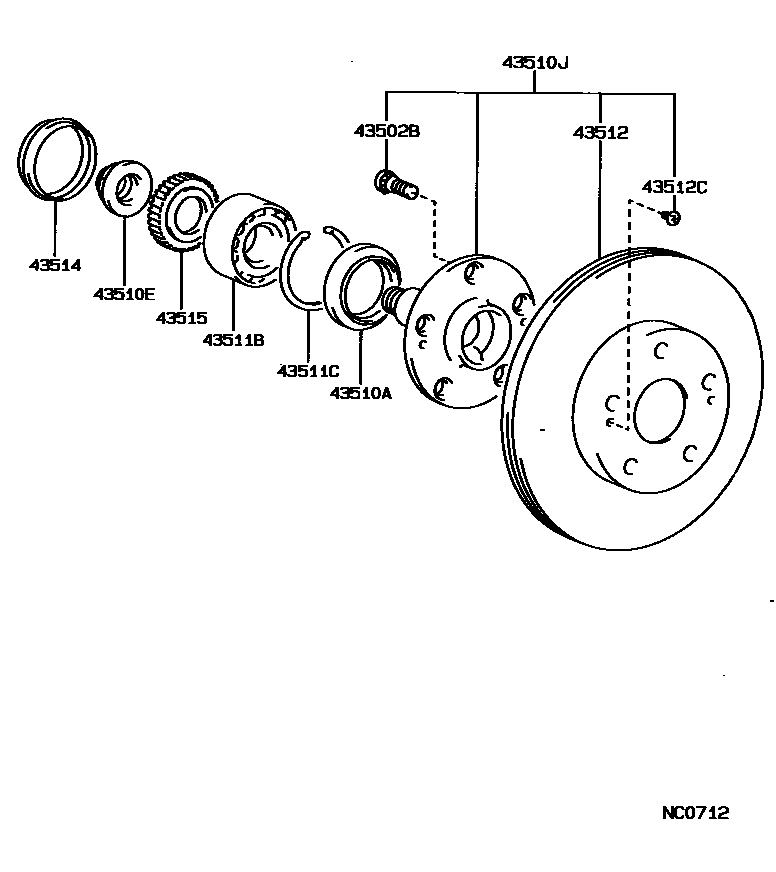

Toyota LEXUS LS400 — FRONT AXLE HUB

43502BBOLT, HUB (FOR FRONT AXLE)

main90942-02049×10i198905-199210

main90942-02070×10i199210-199410

43510ASEAL, OIL (FOR FRONT AXLE HUB)

main90311-50008×2i198905-199208

main90311-50016×2i199208-199410

43510ENUT (FOR STEERING KNUCKLE)

main90179-24005×2i199208-199410

43510JHUB & DISC ASSY, FRONT AXLE

main43510-50040×2i198905-199008

main43510-50060×2i199008-199208

main43510-50100×2i199210-199410

main43510-50120×2i199208-199210

43511BBEARING (FOR FRONT AXLE HUB)

main90369-35034×2i199208-199311

main90903-63006×2i199311-199410

43511CRING, HOLE SNAP (FOR FRONT AXLE HUB)

main90521-82001×2i198905-199208

T=2.5

43512DISC, FRONT

main43512-30241×2i199208-199210

main43512-50040×2i198905-199008

main43512-50060×2i199008-199208

main43512-50100×2i199210-199410

43512CSCREW (FOR FRONT DISC)

main90155-60002×4i198905-199410

43514CAP, FRONT HUB GREASE

main43514-50010×2i198905-199208

43515ROTOR, SKID CONTROL, FRONT

main43515-50010×2i198905-199410

10 parts on this diagram · 1 diagram in section

FRONT AXLE HUB for Toyota LEXUS LS400

This section contains 10 genuine Toyota parts for the FRONT AXLE HUB system of the Toyota LEXUS LS400. Key components include: BOLT, HUB (FOR FRONT AXLE), SEAL, OIL (FOR FRONT AXLE HUB), NUT (FOR STEERING KNUCKLE), HUB & DISC ASSY, FRONT AXLE, BEARING (FOR FRONT AXLE HUB).
