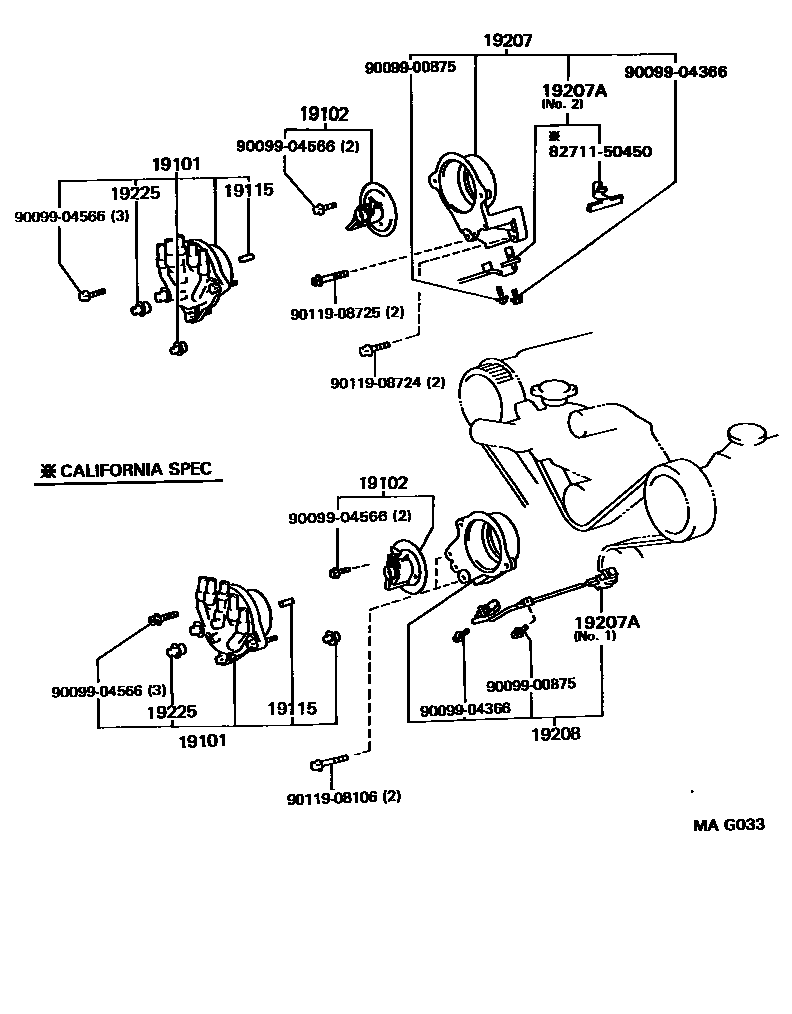

Toyota LEXUS LS400 — DISTRIBUTOR

19101CAP SUB-ASSY, DISTRIBUTOR

main19101-50020×2i198905-199410

19102ROTOR SUB-ASSY, DISTRIBUTOR

main19102-50020×2i198905-199410

19115PIECE, DISTRIBUTOR CAP, CENTER

main19115-50010×2i198905-199410

19207HOUSING SUB-ASSY, DISTRIBUTOR, RH

main19207-50010i198905-199410

main19207-50020i199208-199401

CALIFORNIA SPEC

19207ASENSOR, CAM POSITION

main90919-05003i198905-199410

NO.1

main90919-05004i198905-199410

NO.2

main90919-05010i199208-199401

CALIFORNIA SPEC,NO.2

19208HOUSING SUB-ASSY, DISTRIBUTOR, LH

main19208-50010i198905-199410

19225CAP, RUBBER

main19225-50010×4i198908-199410

main19225-50020×4i198905-198908

8271150450WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-50450

9009900875

main90099-00875

9009904366

main90099-04366

9009904566

main90099-04566

9011908106

main90119-08106

9011908724

main90119-08724

9011908725

main90119-08725

14 parts on this diagram · 1 diagram in section

DISTRIBUTOR for Toyota LEXUS LS400

This section contains 14 genuine Toyota parts for the DISTRIBUTOR system of the Toyota LEXUS LS400. Key components include: CAP SUB-ASSY, DISTRIBUTOR, ROTOR SUB-ASSY, DISTRIBUTOR, PIECE, DISTRIBUTOR CAP, CENTER, HOUSING SUB-ASSY, DISTRIBUTOR, RH, SENSOR, CAM POSITION.
