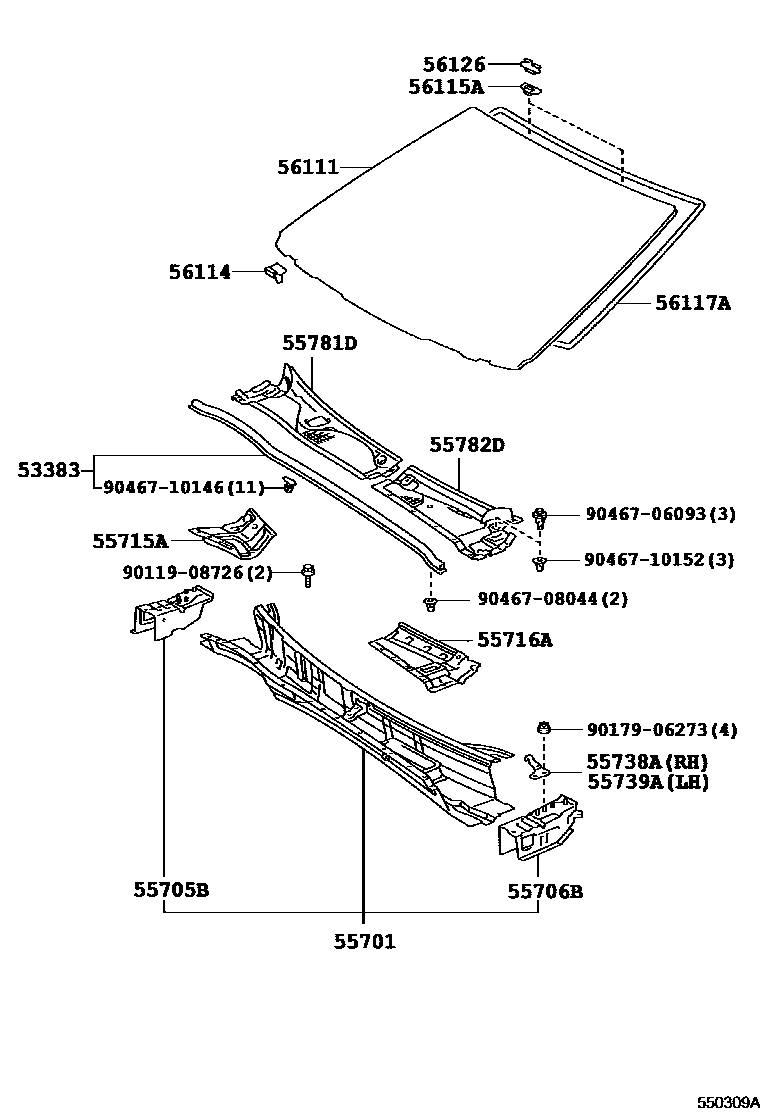

Toyota LEXUS LS400 — COWL PANEL & WINDSHIELD GLASS
55701PANEL SUB-ASSY, COWL
TAIWAN SPEC
55705BPANEL SUB-ASSY, COWL TOP SIDE, RH
55706BPANEL SUB-ASSY, COWL TOP SIDE, LH
55715ABRACE, COWL TOP TO APRON, RH
55716ABRACE, COWL TOP TO APRON, LH
55738ASTOPPER, HOOD, RH
55739ASTOPPER, HOOD, LH
55781DLOUVER, COWL TOP VENTILATOR, RH
55782DLOUVER, COWL TOP VENTILATOR, LH
56111GLASS, WINDSHIELD
*TL,T=4.7,GREEN
*TL,T=4.7,GRAY
*TL,T=4.7,GREEN
*TL,T=5.3,GREEN
*TL,T=5.3,BRONZE
*TL,T=4.7,GREEN
*TL,T=4.7,GRAY
*TL,T=4.7,GREEN
*TL,T=5.3,GREEN
*TL,T=5.3,GREEN,TAIWAN SPEC
*TL,T=5.3,BRONZE
56114RETAINER, WINDSHIELD GLASS
56115ASTOPPER, WINDSHIELD GLASS, NO.1
56117ADAM, WINDOW GLASS ADHESIVE
56126SPACER, WINDSHIELD GLASS, NO.2
9011908726
main90119-08726
9017906273
main90179-06273
9046706093
main90467-06093
9046708044
main90467-08044
9046710146
main90467-10146
9046710152
main90467-10152
21 parts on this diagram · 2 diagrams in section
COWL PANEL & WINDSHIELD GLASS for Toyota LEXUS LS400
This section contains 21 genuine Toyota parts for the COWL PANEL & WINDSHIELD GLASS system of the Toyota LEXUS LS400. Key components include: SEAL, HOOD TO COWL TOP, PANEL SUB-ASSY, COWL, PANEL SUB-ASSY, COWL TOP SIDE, RH, PANEL SUB-ASSY, COWL TOP SIDE, LH, BRACE, COWL TOP TO APRON, RH.
