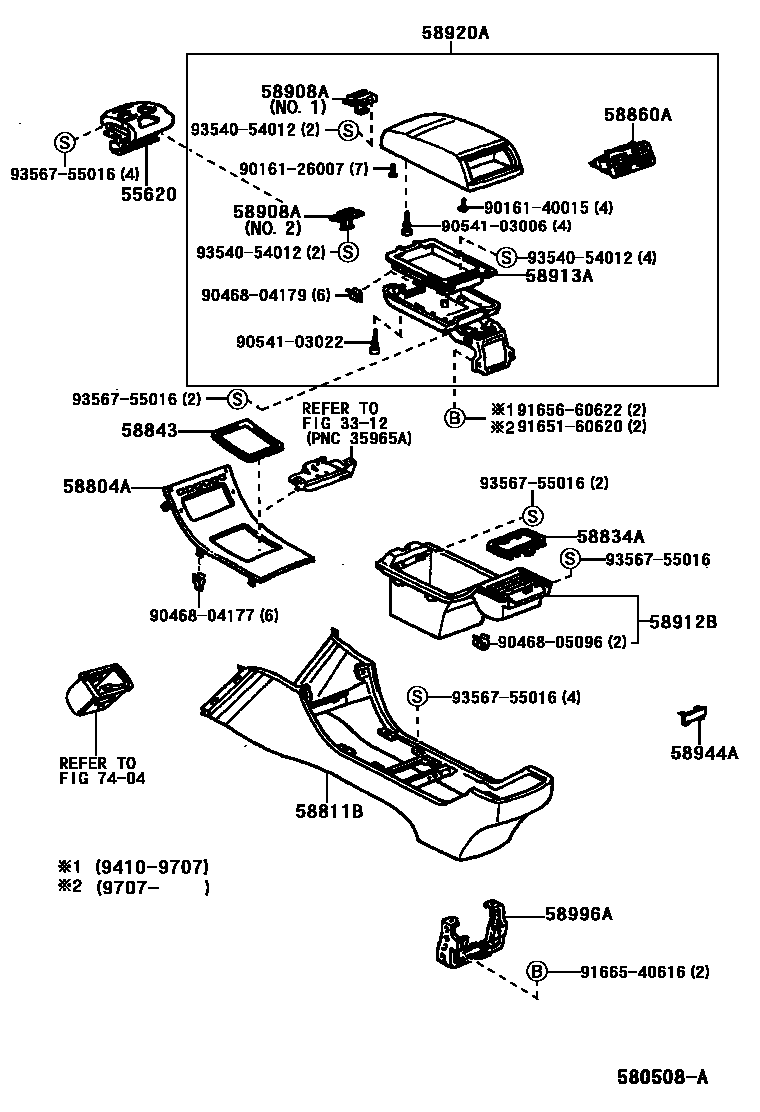

Toyota LEXUS LS400 — CONSOLE BOX & BRACKET
3312
55620HOLDER ASSY, INSTRUMENT PANEL CUP
58804APANEL SUB-ASSY, CONSOLE, UPPER
W(*TRC)
W(SEAT HEATER & *TRC)
COACH EDITION
COACH EDITION;W(TRACTION CONTROL);W(SEAT HEATER)
LEXUS 10TH ANNIVERSARY EDITION(USA/HAWAII/P.RICO/CANADA)
LEXUS 10TH ANNIVERSARY EDITION(USA/HAWAII/P.RICO/CANADA)
58811BBOX, CONSOLE
IVORY,TRIM0#
IVORY,TRIM0#
BLUE GRAY,TRIM1#
BLACK,TRIM2#
AGATE,TRIM6#
58834ACOVER, CONSOLE, LOWER
58843BEZEL, SHIFTING HOLE
58860AREGISTER ASSY, CONSOLE BOX
IVORY,TRIM0#
IVORY,TRIM0#
BLUE GRAY,TRIM1#
BLACK,TRIM2#
AGATE,TRIM6#
58908ALOCK SUB-ASSY, CONSOLE COMPARTMENT DOOR
NO.1
NO.2
NO.1
58913APANEL, BOX, NO.3
58920AARMREST ASSY, REAR CONSOLE
IVORY,TRIM0#
BLUE GRAY,TRIM1#
BLACK,TRIM2#
AGATE,TRIM6#
IVORY,TRIM0#
BLACK,TRIM2#
AGATE,TRIM6#
IVORY,TRIM0#
BLUE GRAY,TRIM1#
BLACK,TRIM2#
AGATE,TRIM6#
COACH EDITION,IVORY,TRIM01
COACH EDITION,BLACK,TRIM21
COACH EDITION,AGATE,TRIM61
58944ACOVER, CONSOLE, REAR
58996ABRACKET, CONSOLE BOX MOUNTING, NO.2
7404
9016126007
main90161-26007
9016140015
main90161-40015
9046804177
main90468-04177
9046804179
main90468-04179
9046805096
main90468-05096
9165160620
main91651-60620
9165660622
main91656-60622
9166540616
main91665-40616
9354054012
main93540-54012
9356755016
main93567-55016
24 parts on this diagram · 1 diagram in section
