Toyota LEXUS LS400 — INDICATOR

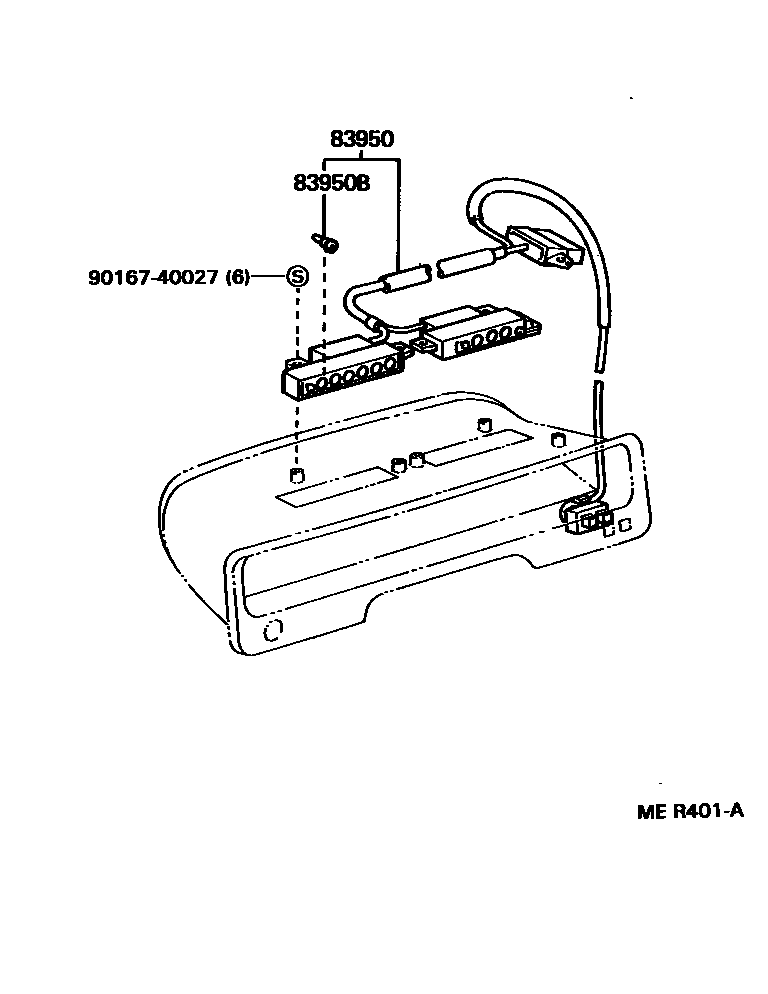

Parts diagram
83950LAMP ASSY, TELLTALE
main83950-50030i198912-199108
main83950-50031i199108-199208
main83950-50040i198912-199108
W(TRACTION CONTROL)
main83950-50041i199108-199208
W(TRACTION CONTROL)
main83950-50050i198912-199108
W(*80)
main83950-50051i199108-199208
W(*80)
main83950-50060i198912-199108
W(*TRC & *80)
main83950-50061i199108-199208
W(*TRC & *80)
main83950-50070i198912-199108
main83950-50071i199108-199208
main83950-50080i198912-199108
W(TRACTION CONTROL)
main83950-50081i199108-199208
W(TRACTION CONTROL)
main83950-50090i198912-199108
W(*80)
main83950-50091i199108-199208
W(*80)
main83950-50100i198912-199108
W(*TRC & *80)
main83950-50101i199108-199208
W(*TRC & *80)
main83950-50110i198912-199108
main83950-50111i199108-199208
main83950-50120i198912-199108
main83950-50121i199108-199208
main83950-50130i198912-199104
main83950-50131i199108-199208
W(*80)
main83950-50180i198912-199108
W/O(*80)
main83950-50181i199108-199208
W/O(*80)
main83950-50210i199104-199108
main83950-50211i199108-199208
main83950-50220i199108-199208
W(*TRC & *80)
main83950-50250i199208-199410
main83950-50260i199208-199410
W(TRACTION CONTROL)
main83950-50270i199208-199410
main83950-50280i199208-199410
main83950-50290i199208-199304
W(TRACTION CONTROL)
main83950-50300i199208-199410
main83950-50330i199208-199410
main83950-50340i199208-199410
W(TRACTION CONTROL)
main83950-50370i199308-199410
W(TRACTION CONTROL)
83950BBULB, TELLTALE LAMP
main84999-50270×6i198912-199208
14V 60MA
9016740027
main90167-40027

3 parts on this diagram · 1 diagram in section
