Toyota LEXUS LS400 — WIRELESS DOOR LOCK

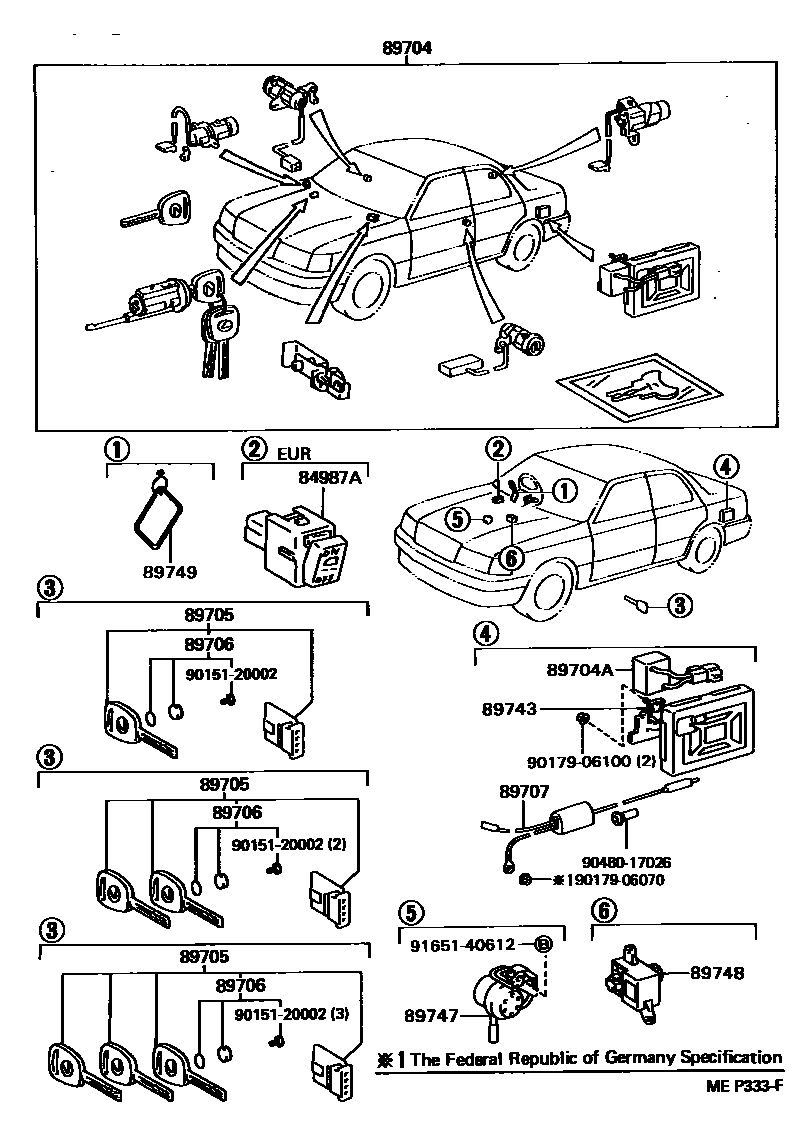

Parts diagram
84987ASWITCH, KEYLESS ENTRY CANCEL
main84987-50020i198912-199208
main84987-50030i199208-199410
89704CONTROL SET, WIRELESS DOOR LOCK
main89704-50020i198912-199101
sub89704-50021
main89704-50021i199101-199108
sub89704-5A020
main89704-50022i199108-199208
sub89708-50121
main89704-50030i198912-199010
sub89704-50031
main89704-50031i199010-199108
sub89704-50032
main89704-50032i199108-199208
sub89708-50131
main89704-50060i198912-199008
sub89704-50062
main89704-50062i199008-199208
sub89708-50160
main89704-50070i198912-199010
sub89704-50071
main89704-50071i199010-199108
sub89704-50072
main89704-50072i199108-199208
sub89708-50150
main89704-50080i199005-199007
*FRG
sub89704-50081
main89704-50081i199007-199101
*FRG
sub89704-50082
main89704-50082i199101-199108
*FRG
main89704-50083i199108-199208
*FRG
sub89708-50121
main89704-50090i199109-199208
DENMARK SPEC
sub89708-50121
main89704-50110i199208-199410
sub89708-50021
main89704-50110i199304-199410
CHINA SPEC
sub89708-50021
main89704-50120i199208-199410
sub89708-50031
main89704-50130i199208-199410
*FRG
sub89708-50021
main89704-50140i199208-199410
DENMARK SPEC
sub89708-50021
main89704-50160i199208-199410
sub89708-50070
main89704-50170i199208-199410
sub89708-50080
main89704-50180i199303-199410
ITALY SPEC
sub89704-50111
main89704-50190i199208-199410
FRANCE SPEC
sub89708-50021
main89704-50200i199108-199208
FRANCE SPEC
sub89708-50121
89704AFILTER, NOISE(FOR WIRELESS DOOR LOCK)
main90980-05159i198912-199410
89705TRANSMITTER, DOOR CONTROL
main89705-50010i198912-199008
TRANSMITTER QTY.=1
sub89705-50011
main89705-50011i199008-199208
TRANSMITTER QTY.=1
sub89705-50943
main89705-50020i198912-199101
CUT KEY,TRANSMITTER QTY.=1
sub89705-50021
main89705-50021i199101-199208
CUT KEY,TRANSMITTER QTY.=1
sub89705-50022
main89705-50040i198912-199010
TRANSMITTER QTY.=1
sub89705-50041
main89705-50041i199010-199208
TRANSMITTER QTY.=1
main89705-50051i199107-199208
TRANSMITTER QTY.=2
sub89705-50944
main89705-50061i199107-199208
TRANSMITTER QTY.=3
sub89705-50945
main89705-50070i198912-199008
TRANSMITTER QTY.=1
sub89705-50400
main89705-50071i199008-199107
TRANSMITTER QTY.=1
main89705-50080i199002-199010
CUT KEY,TRANSMITTER QTY.=1
sub89705-50081
main89705-50081i199010-199208
CUT KEY,TRANSMITTER QTY.=1
sub89705-50022
main89705-50090i199005-199007
CUT KEY,*FRG,TRANSMITTER QTY.=1
sub89705-50091
main89705-50091i199007-199101
CUT KEY,*FRG,TRANSMITTER QTY.=1
sub89705-50092
main89705-50092i199101-199208
CUT KEY,*FRG,TRANSMITTER QTY.=1
sub89705-50022
main89705-50100i199107-199208
CUT KEY,TRANSMITTER QTY.=2
sub89705-50101
main89705-50110i199107-199208
CUT KEY,TRANSMITTER QTY.=2
sub89705-50101
main89705-50120i199107-199208
CUT KEY,*FRG,TRANSMITTER QTY.=2
sub89705-50101
main89705-50130i199107-199208
TRANSMITTER QTY.=2
main89705-50140i199107-199208
CUT KEY,TRANSMITTER QTY.=3
main89705-50150i199107-199208
CUT KEY,TRANSMITTER QTY.=3
main89705-50160i199107-199208
CUT KEY,*FRG,TRANSMITTER QTY.=3
main89705-50170i199107-199208
TRANSMITTER QTY.=3
main89705-50180i199109-199208
CUT KEY,DENMARK SPEC,TRANSMITTER QTY.=1
sub89705-50022
main89705-50190i199109-199208
CUT KEY,DENMARK SPEC,TRANSMITTER QTY.=2
sub89705-50101
main89705-50200i199109-199208
CUT KEY,DENMARK SPEC,TRANSMITTER QTY.=3
main89705-50210i199208-199209
TRANSMITTER QTY.=1
sub89705-50946
main89705-50220i199208-199410
TRANSMITTER QTY.=1
sub89705-50221
main89705-50220i199304-199410
CHINA SPEC,TRANSMITTER QTY.=1
sub89705-50221
main89705-50230i199208-199410
CUT KEY,TRANSMITTER QTY.=1
sub89705-50221
main89705-50240i199208-199410
CUT KEY,*FRG,TRANSMITTER QTY.=1
sub89705-50221
main89705-50250i199208-199410
CUT KEY,DENMARK SPEC,TRANSMITTER QTY.=1
sub89705-50221
main89705-50270i199208-199410
TRANSMITTER QTY.=1
main89705-50280i199208-199209
TRANSMITTER QTY.=2
sub89705-50947
main89705-50290i199304-199410
CHINA SPEC,TRANSMITTER QTY.=2
sub89705-50291
main89705-50290i199208-199410
CUT KEY,TRANSMITTER QTY.=2
sub89705-50291
main89705-50300i199208-199410
CUT KEY,TRANSMITTER QTY.=2
sub89705-50291
main89705-50310i199208-199410
CUT KEY,*FRG,TRANSMITTER QTY.=2
sub89705-50291
main89705-50320i199208-199410
CUT KEY,DENMARK SPEC,TRANSMITTER QTY.=2
sub89705-50291
main89705-50330i199208-199410
TRANSMITTER QTY.=2
main89705-50340i199208-199209
TRANSMITTER QTY.=3
sub89705-50948
main89705-50350i199304-199410
CHINA SPEC,TRANSMITTER QTY.=3
main89705-50350i199208-199410
TRANSMITTER QTY.=3
main89705-50360i199208-199410
CUT KEY,TRANSMITTER QTY.=3
main89705-50370i199208-199410
CUT KEY,*FRG,TRANSMITTER QTY.=3
main89705-50380i199208-199410
CUT KEY,DENMARK SPEC,TRANSMITTER QTY.=3
main89705-50390i199208-199410
TRANSMITTER QTY.=3
main89705-50400i199107-199208
CUT KEY,TRANSMITTER QTY.=1
main89705-50430i199208-199410
CUT KEY,TRANSMITTER QTY.=1
main89705-50460i199212-199410
CUT KEY,ITALY SPEC,TRANSMITTER QTY.=1
sub89705-50461
main89705-50470i199212-199410
CUT KEY,ITALY SPEC,TRANSMITTER QTY.=2
sub89705-50471
main89705-50480i199212-199410
CUT KEY,ITALY SPEC,TRANSMITTER QTY.=3
main89705-50490i199208-199410
CUT KEY,FRANCE SPEC,TRANSMITTER QTY.=1
sub89705-50221
main89705-50500i199208-199410
CUT KEY,FRANCE SPEC,TRANSMITTER QTY.=2
sub89705-50291
main89705-50510i199208-199410
CUT KEY,FRANCE SPEC,TRANSMITTER QTY.=3
main89705-50901i198912-199010
TRANSMITTER QTY.=1
sub89705-50907
main89705-50902i198912-199101
TRANSMITTER QTY.=1
sub89705-50908
main89705-50903i199002-199010
TRANSMITTER QTY.=1
sub89705-50909
main89705-50904i199005-199007
*FRG,TRANSMITTER QTY.=1
sub89705-50906
main89705-50906i199007-199101
*FRG,TRANSMITTER QTY.=1
sub89705-50910
main89705-50907i199010-199208
TRANSMITTER QTY.=1
main89705-50908i199101-199208
TRANSMITTER QTY.=1
sub89705-50955
main89705-50909i199010-199208
TRANSMITTER QTY.=1
sub89705-50955
main89705-50910i199101-199208
*FRG,TRANSMITTER QTY.=1
sub89705-50955
main89705-50911i199107-199208
TRANSMITTER QTY.=2
sub89705-50958
main89705-50912i199107-199208
TRANSMITTER QTY.=2
sub89705-50958
main89705-50913i199107-199208
*FRG,TRANSMITTER QTY.=2
sub89705-50958
main89705-50914i199107-199208
TRANSMITTER QTY.=2
main89705-50915i199107-199208
TRANSMITTER QTY.=3
sub89705-50958
main89705-50916i199107-199208
TRANSMITTER QTY.=3
sub89705-50958
main89705-50917i199107-199208
*FRG,TRANSMITTER QTY.=3
sub89705-50958
main89705-50918i199107-199208
TRANSMITTER QTY.=3
main89705-50919i199109-199208
DENMARK SPEC,TRANSMITTER QTY.=1
sub89705-50955
main89705-50920i199109-199208
DENMARK SPEC,TRANSMITTER QTY.=2
sub89705-50958
main89705-50921i199109-199208
DENMARK SPEC,TRANSMITTER QTY.=3
sub89705-50958
main89705-50925i199208-199410
TRANSMITTER QTY.=1
sub89705-50956
main89705-50925i199304-199410
CHINA SPEC,TRANSMITTER QTY.=1
sub89705-50956
main89705-50926i199208-199410
TRANSMITTER QTY.=1
sub89705-50956
main89705-50927i199208-199410
*FRG,TRANSMITTER QTY.=1
sub89705-50956
main89705-50928i199208-199410
DENMARK SPEC,TRANSMITTER QTY.=1
sub89705-50956
main89705-50930i199208-199410
TRANSMITTER QTY.=1
main89705-50932i199304-199410
CHINA SPEC,TRANSMITTER QTY.=2
sub89705-50959
main89705-50932i199208-199410
TRANSMITTER QTY.=2
sub89705-50959
main89705-50933i199208-199410
TRANSMITTER QTY.=2
sub89705-50959
main89705-50934i199208-199410
*FRG,TRANSMITTER QTY.=2
sub89705-50959
main89705-50935i199208-199410
DENMARK SPEC,TRANSMITTER QTY.=2
sub89705-50959
main89705-50936i199208-199410
TRANSMITTER QTY.=2
main89705-50938i199208-199410
TRANSMITTER QTY.=3
sub89705-50959
main89705-50938i199304-199410
CHINA SPEC,TRANSMITTER QTY.=3
sub89705-50959
main89705-50939i199208-199410
TRANSMITTER QTY.=3
sub89705-50959
main89705-50940i199208-199410
*FRG,TRANSMITTER QTY.=3
sub89705-50959
main89705-50941i199208-199410
DENMARK SPEC,TRANSMITTER QTY.=3
sub89705-50959
main89705-50942i199208-199410
TRANSMITTER QTY.=3
main89705-50946i199209-199410
TRANSMITTER QTY.=1
main89705-50947i199209-199410
TRANSMITTER QTY.=2
main89705-50948i199209-199410
TRANSMITTER QTY.=3
main89705-50949i199212-199410
ITALY SPEC,TRANSMITTER QTY.=1
sub89705-50957
main89705-50950i199212-199410
ITALY SPEC,TRANSMITTER QTY.=2
sub89705-50960
main89705-50951i199212-199410
ITALY SPEC,TRANSMITTER QTY.=3
sub89705-50960
main89705-50952i199208-199410
FRANCE SPEC,TRANSMITTER QTY.=1
sub89705-50956
main89705-50953i199208-199410
FRANCE SPEC,TRANSMITTER QTY.=2
sub89705-50959
main89705-50954i199208-199410
FRANCE SPEC,TRANSMITTER QTY.=3
sub89705-50959
89706BATTERY SET, TRANSMITTER
main89706-50010i198912-199410
sub89745-48020
sub90151-20002
sub90301-14005
89707CORD SUB-ASSY, WIRELESS DOOR LOCK
main89707-50010i198912-199208
main89707-50020i198912-199410
main89707-50020i199304-199410
CHINA SPEC
main89707-50030i199208-199410
89743RECEIVER, DOOR CONTROL
main89743-50010i198912-199208
main89743-50030i198912-199208
main89743-50040i198912-199208
sub89743-50041
main89743-50050i199208-199410
main89743-50060i199208-199410
sub89743-50061
main89743-50060i199304-199410
CHINA SPEC
sub89743-50061
main89743-50080i199208-199410
main89743-50090i199212-199410
ITALY SPEC
89747BUZZER, WIRELESS DOOR LOCK
main89747-50010i199208-199410
main89747-50020i199208-199410
89748CONTROLLER, WIRELESS DOOR LOCK BUZZER
main89748-50010i199208-199410
89749LABEL, WIRELESS BUZZER INFORMATION
main89749-50010i199208-199410
main89749-50010i199304-199410
CHINA SPEC
main89749-50020i199208-199410
main89749-50040i199208-199410
9015120002
main90151-20002
9017906070
main90179-06070
9017906100
main90179-06100
9048017026
main90480-17026
9165140612
main91651-40612

15 parts on this diagram · 1 diagram in section
