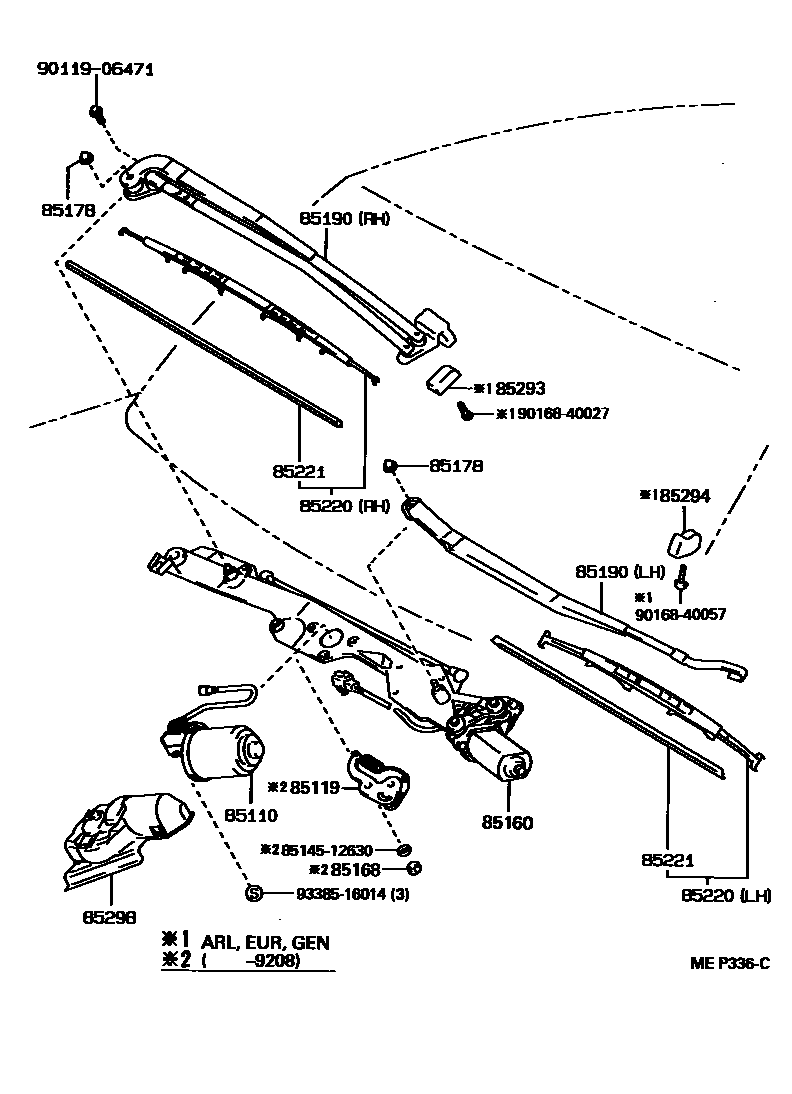

Toyota LEXUS LS400 — WINDSHIELD WIPER

85110MOTOR ASSY, WINDSHIELD WIPER

main85110-50010iUCF10..V198912-199208

main85110-50020iUCF10..LHD..EUR198912-199208

main85110-50030iUCF10..RHD..(ARL,EUR)198912-199208

sub85110-50040

main85110-50040iUCF10..GEN198912-199208

main85110-50050iUCF10..V199208-199410

main85110-50060iUCF10..LHD..EUR199208-199410

main85110-50070iUCF10..RHD..(ARL,EUR)199208-199410

main85110-50080iUCF10..GEN199208-199410

85119CRANK, WINDSHIELD WIPER MOTOR

main85119-50010iUCF10..LHD198912-199208

main85119-50030iUCF10..RHD198912-199208

85160LINK ASSY, WINDSHIELD WIPER

main85150-50020iUCF10..LHD..EUR198912-199208

main85150-50030iUCF10..RHD198912-199208

main85150-50040iUCF10..V199203-199410

main85150-50050iUCF10..LHD..EUR199208-199410

main85150-50060iUCF10..RHD199208-199410

main85160-50010iUCF10..V198912-199203

sub85150-50040

85168NUT, WINDSHIELD WIPER LINK PIVOT

main85186-12630iUCF10198912-199208

85178NUT (FOR FRONT WIPER ARM SETTING)

main90176-08042iUCF10198912-199410

sub90176-08051

85190ARM ASSY, WINDSHIELD WIPER

main85190-50010iUCF10..V198912-199012

LH

sub85190-50011

main85190-50011iUCF10..LHD199012-199410

LH

main85210-50010iUCF10..V198912-199012

RH

sub85210-50011

main85210-50011iUCF10..V199012-199410

RH

main85211-50020iUCF10..RHD..EUR198912-199208

RH

sub85211-50040

main85211-50030iUCF10..LHD..EUR198912-199208

RH

sub85211-50050

main85211-50040iUCF10..RHD199012-199410

RH

main85211-50050iUCF10..LHD..EUR199208-199410

RH

main85221-50030iUCF10..RHD..EUR198912-199208

LH

sub85221-50050

main85221-50040iUCF10..LHD..EUR198912-199208

LH

sub85190-50011

main85221-50050iUCF10..RHD199012-199410

LH

85220BLADE ASSY, WINDSHIELD WIPER

main85212-50020iUCF10..ARL,GEN198912-199302

RH

sub85212-50021

main85212-50021iUCF10..ARL,GEN199302-199410

RH

sub85212-40081

main85212-50030iUCF10..RHD..EUR198912-199302

RH

sub85212-50031

main85212-50031iUCF10..RHD..EUR199302-199410

RH

sub85212-40100

main85212-50040iUCF10..LHD..EUR198912-199301

RH

sub85212-50041

main85212-50041iUCF10..LHD199301-199410

RH

main85220-22700iUCF10..V198912-199104

RH

sub85212-50040

main85220-3A090iUCF10..V198912-199301

LH

sub85220-3A091

main85220-3A091iUCF10..V199301-199410

LH

sub85222-50030

main85222-50010iUCF10..RHD198912-199302

LH

sub85222-50011

main85222-50011iUCF10..RHD199302-199410

LH

main85222-50020iUCF10..LHD..EUR198912-199301

LH

sub85222-50021

main85222-50021iUCF10..LHD..EUR199301-199410

LH

85221BLADE, WINDSHIELD WIPER

main85213-50020iUCF10..ARL,GEN199012-199202

RH

sub85213-50021

main85213-50021iUCF10..ARL,GEN199202-199302

RH

sub85213-50022

main85213-50022iUCF10..ARL,GEN199302-199410

RH

sub85214-50020

main85213-50030iUCF10..LHD198912-199208

RH

sub85213-50031

main85213-50031iUCF10..LHD199208-199301

RH

sub85213-50032

main85213-50032iUCF10..LHD199301-199410

RH

sub85214-50080

main85213-50040iUCF10..RHD..EUR198912-199208

RH

sub85213-50041

main85213-50041iUCF10..RHD..EUR199208-199302

RH

sub85213-50042

main85213-50042iUCF10..RHD..EUR199302-199410

RH

sub85214-50030

main85223-50010iUCF10..RHD198912-199202

LH

sub85223-50011

main85223-50011iUCF10..RHD199202-199302

LH

sub85223-50012

main85223-50012iUCF10..RHD199302-199410

LH

sub85214-50070

main85223-50020iUCF10..LHD198912-199208

LH

sub85223-50021

main85223-50021iUCF10..LHD199208-199301

LH

sub85223-50022

main85223-50022iUCF10..LHD199301-199410

LH

sub85214-50050

85293STEP, LINEAR WIPER, RH

main85293-50010iUCF10..ARL,EUR,GEN198912-199410

85294STEP, LINEAR WIPER, LH

main85294-50010iUCF10..ARL,EUR,GEN198912-199410

85298COVER, WIPER MOTOR

main85111-50020iUCF10..RHD198912-199410

main85111-50030iUCF10..LHD..EUR198912-199410

main85298-50010iUCF10..V198912-199410

sub85111-50030

8514512630

main85145-12630

9011906471

main90119-06471

9016840027

main90168-40027

9016840057

main90168-40057

9338516014

main93385-16014

16 parts on this diagram · 1 diagram in section
