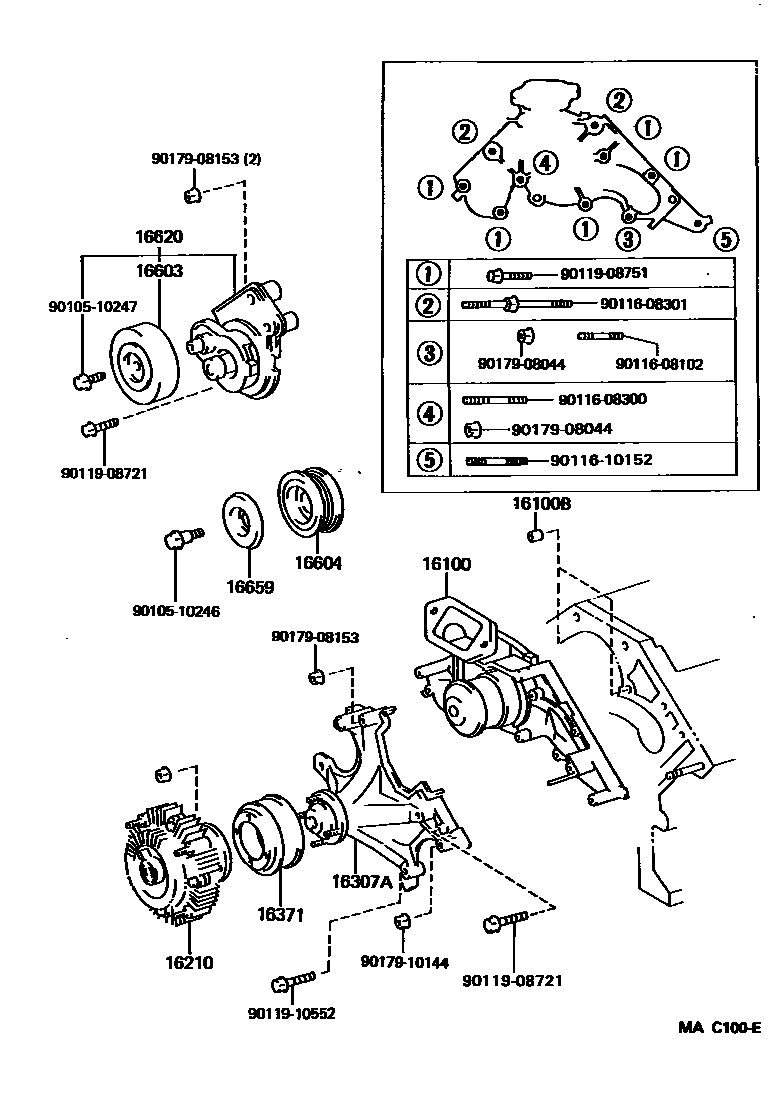

Toyota LEXUS LS400 — WATER PUMP

16100PUMP ASSY, ENGINE WATER

main16100-50020i1UZFE..UCF10198912-199312

sub16100-50021

main16100-50021i1UZFE..UCF10199312-199410

sub16100-50022

16100BPIN, RING(FOR WATER PUMP SET)

main90253-11021i1UZFE..UCF10198912-199410

main90253-11021i1UZFE..UCF10..GEN199108-199208

HONG KONG SPEC

16210COUPLING ASSY, FLUID

main16210-50020i1UZFE..UCF10..GEN199108-199410

HONG KONG SPEC

sub16210-50021

main16210-50020i1UZFE..UCF10..ARL,EUR198912-199410

sub16210-50021

main16210-50040i1UZFE..UCF10..LHD..EUR199308-199410

ISRAEL SPEC

main16210-50040i1UZFE..UCF10..GEN,V198912-199410

W(TRAILER HITCH)

main16210-50040i1UZFE..UCF10..RHD..EUR199208-199410

SOUTH AFRICA SPEC

16307ABRACKET SUB-ASSY, FAN

main16307-50010i1UZFE..UCF10198912-199410

sub16307-50011

16371PULLEY, FAN

main16371-50020i1UZFE..UCF10198912-199410

sub16371-50030

16603PULLEY SUB-ASSY, IDLER, NO.1

main16603-50010i1UZFE..UCF10198912-199402

LITENS

sub16603-0W010

main16603-50010i1UZFE..UCF10199402-199410

sub16603-0W010

main16603-50020i1UZFE..UCF10198912-199402

AISIN

sub16603-50010

16604PULLEY SUB-ASSY, IDLER, NO.2

main16604-50010i1UZFE..UCF10198912-199410

sub16604-50030

16620TENSIONER ASSY, V-RIBBED BELT

main16620-0W030i1UZFE..UCF10199406-199410

sub16620-0W031

main16620-50011i1UZFE..UCF10199401-199406

sub16620-0W030

main16620-50020i1UZFE..UCF10198912-199401

sub16620-0W030

16659PLATE, IDLER PULLEY COVER, NO.2

main16659-50010i1UZFE..UCF10198912-199301

sub16659-50020

main16659-50020i1UZFE..UCF10199301-199410

sub16659-50021

9010510246

main90105-10246

9010510247

main90105-10247

9011608102

main90116-08102

9011608300

main90116-08300

9011608301

main90116-08301

9011610152

main90116-10152

9011908721

main90119-08721

9011908751

main90119-08751

9011910552

main90119-10552

9017908044

main90179-08044

9017908153

main90179-08153

9017910144

main90179-10144

21 parts on this diagram · 1 diagram in section
