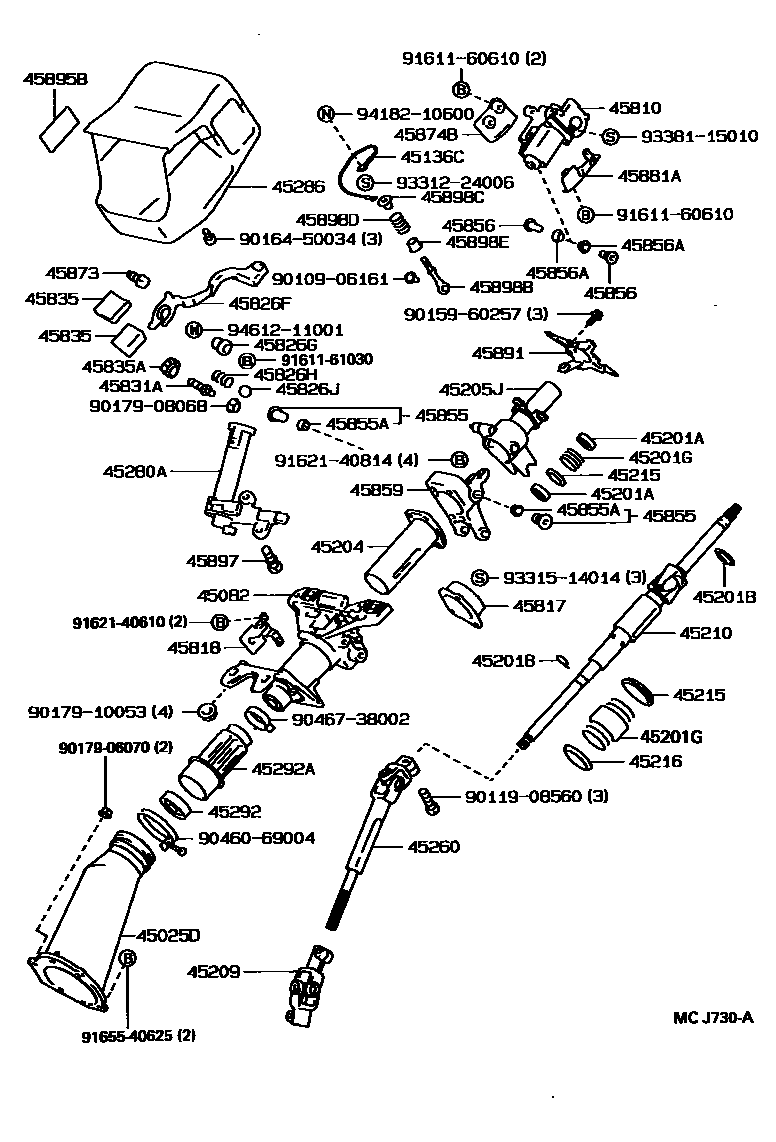

Toyota LEXUS LS400 — STEERING COLUMN & SHAFT
45025DCOVER SUB-ASSY, STEERING COLUMN HOLE, NO.1
45082BRACKET SUB-ASSY, BREAK AWAY W/CAPSULE
W(AUTOMATIC ADJUSTMENT SYSTEM)
45136CCABLE, BOND(FOR HORN EARTH)
sub45832-41010
45201ABEARING(FOR STEERING MAIN SHAFT)
MEMORY ADJUST SYSTEM
45201BRING, SHAFT SNAP(FOR STEERING MAIN SHAFT)
T=2.00,ID=15.3
T=2.00,ID=15.3,MEMORY ADJUST SYSTEM
T=1.20
T=1.20,MEMORY ADJUST SYSTEM
45201GSPRING, COMPRESSION(FOR STEERING MAIN SHAFT)
LWR
UPR
W(AUTOMATIC ADJUSTMENT SYSTEM)
45204TUBE ASSY, STEERING COLUMN, LOWER
45205JTUBE SUB-ASSY, STEERING COLUMN, UPPER
sub45205-50011
45209YOKE SUB-ASSY, STEERING SLIDING
45210SHAFT ASSY, STEERING MAIN
sub45210-50011
45215COLLAR, MAIN SHAFT BEARING THRUST
W(AUTOMATIC ADJUSTMENT SYSTEM)
UPR
LWR
45216SHAFT, STEERING SLIDING
45286COVER, STEERING COLUMN
45292SEAL, MAIN SHAFT LOWER DUST
MEMORY ADJUST SYSTEM
45292ACOVER, MAIN SHAFT LOWER DUST
W(AUTOMATIC ADJUSTMENT SYSTEM)
45810GEAR ASSY, TILT STEERING, W/MOTOR
MEMORY ADJUST SYSTEM
45817STOPPER, STEERING SHAFT THRUST
45818BRACKET, CONNECTOR
MEMORY ADJUST SYSTEM
45826FLEVER, STEERING TELESCOPIC
sub45826-50010
45826GCOLLAR(FOR STEERING TELESCOPIC LEVER)
45826HSPRING, COMPRESSION(FOR STEERING TELESCOPIC LEVER)
45826JBALL(FOR STEERING TELESCOPIC LEVER)
45831ABOLT, TELESCOPE LEVER LOCK
45835WEDGE, LOCK
TUBE SIDE
BOLT SIDE
45835AATTACHMENT, TILT LEVER SERRATION
45855BOLT, TILT STEERING, NO.1
OD=20
OD=20,MEMORY ADJUST SYSTEM
45855ABUSH(FOR TILT STEERING BOLT NO.1)
MEMORY ADJUST SYSTEM
45856BOLT, TILT STEERING, NO.2
OD=16.2,MEMORY ADJUST SYSTEM
OD=16.2
45856ABUSH(FOR TILT STEERING BOLT NO.2)
MEMORY ADJUST SYSTEM
45859SUPPORT, TILT STEERING HOUSING
MEMORY ADJUST SYSTEM
45873STOPPER, STEERING COLUMN TUBE
45874BPROTECTOR, STEERING COLUMN, NO.1
MEMORY ADJUST SYSTEM
45881APROTECTOR, STEERING COLUMN, NO.2
MEMORY ADJUST SYSTEM
45891BRACKET, TURN SIGNAL
MEMORY ADJUST SYSTEM
45895BPLATE, TILT LEVER INSTRUCTION
SHADOW GRAY,TRIM1#
DARK BLUE,TRIM8#
GREIGE,TRIM0#
DARK ROSE,TRIM4#
OAK,TRIM0#
SHADOW GRAY,TRIM1#,2#,8#
45897BOLT, STEERING LOCK SET
MEMORY ADJUST SYSTEM
45898CSPACER(FOR TILT STEERING SUPPORT STOPPER BOLT)
MEMORY ADJUST SYSTEM
45898EBUSH(FOR TILT STEERING SUPPORT BOLT)
MEMORY ADJUST SYSTEM
9010906161
main90109-06161
9011908560
main90119-08560
9015960257
main90159-60257
9016450034
main90164-50034
9017906070
main90179-06070
9017908068
main90179-08068
9017910053
main90179-10053
9046069004
main90460-69004
9046738002
main90467-38002
9161160610
main91611-60610
9161161030
main91611-61030
9162140610
main91621-40610
9162140814
main91621-40814
9165540625
main91655-40625
9331224006
main93312-24006
9331514014
main93315-14014
9338115010
main93381-15010
9418210600
main94182-10600
9461211001
main94612-11001
61 parts on this diagram · 2 diagrams in section
