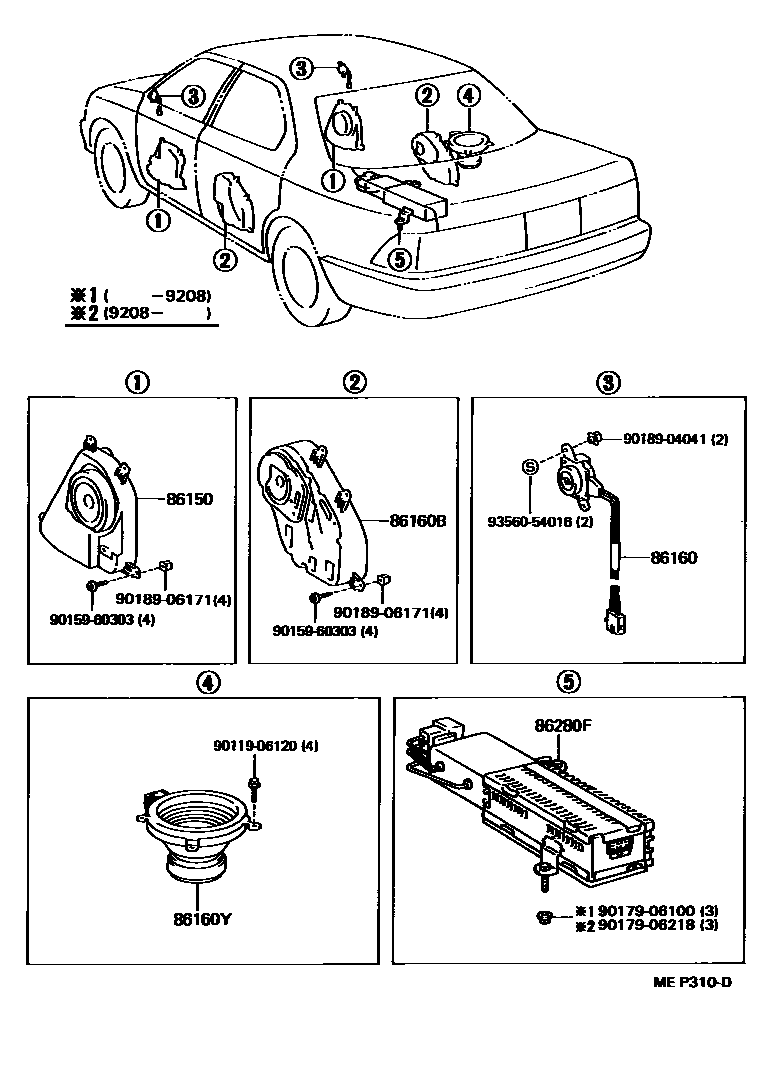

Toyota LEXUS LS400 — SPEAKER

86150SPEAKER ASSY, W/BOX, NO.1

main86150-50010iUCF10198912-199208

RH,PIONEER

sub86150-50090

main86150-50020iUCF10198912-199208

LH,PIONEER

sub86150-50100

main86150-50090iUCF10199208-199410

RH,PIONEER

main86150-50100iUCF10199208-199410

LH,PIONEER

86160SPEAKER ASSY, FRONT NO.1

main86160-50030iUCF10198912-199208

RH,PIONEER

sub86160-50080

main86160-50040iUCF10198912-199208

LH,PIONEER

sub86160-50090

main86160-50080iUCF10199208-199410

RH,PIONEER

main86160-50090iUCF10199208-199410

LH,PIONEER

86160BSPEAKER ASSY, REAR

main86150-50050iUCF10198912-199208

RH,PIONEER

sub86150-50110

main86150-50060iUCF10198912-199208

LH,PIONEER

sub86150-50120

main86150-50110iUCF10199208-199410

RH,PIONEER

main86150-50120iUCF10199208-199410

LH,PIONEER

86160YSPEAKER ASSY, REAR NO.2

main86160-50010iUCF10198912-199208

PIONEER

main86160-50070iUCF10199208-199410

PIONEER

86280FAMPLIFIER ASSY, STEREO COMPONENT

main86280-50010iUCF10..ARL,EUR,GEN198912-199208

PIONEER

main86280-50010iUCF10..ARL,EUR,GEN199208-199410

main86280-50030iUCF10..V198912-199410

9011906120

main90119-06120

9015960303

main90159-60303

9017906100

main90179-06100

9017906218

main90179-06218

9018904041

main90189-04041

9018906171

main90189-06171

9356054016

main93560-54016

12 parts on this diagram · 1 diagram in section
