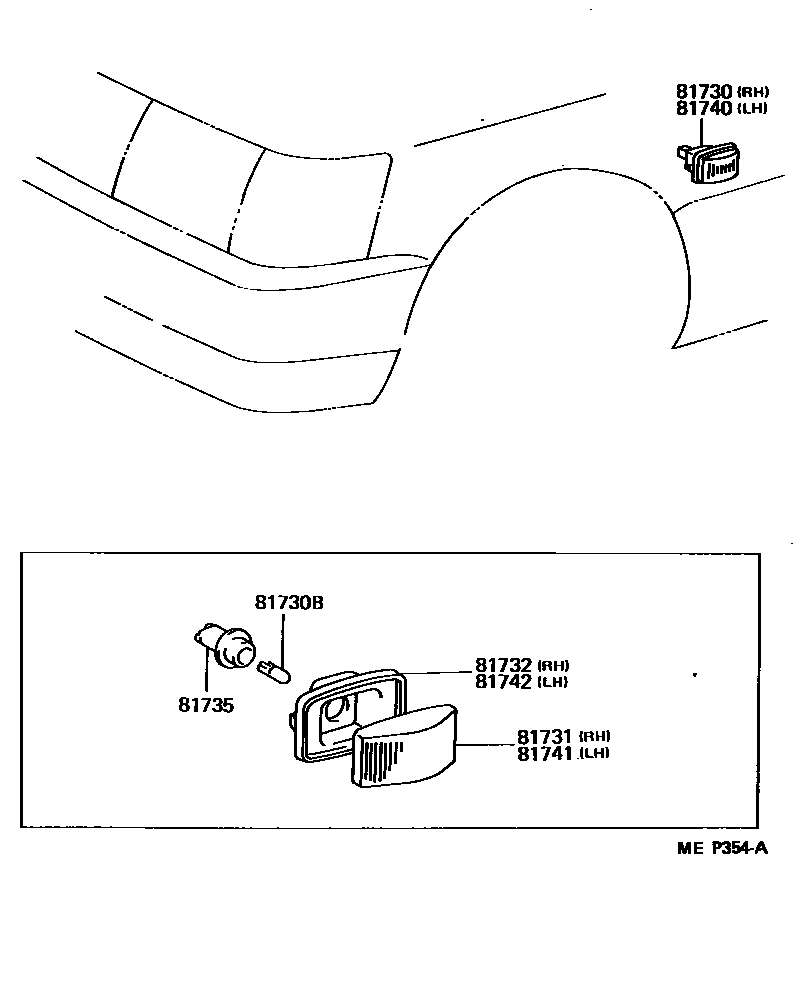

Toyota LEXUS LS400 — SIDE TURN SIGNAL LAMP & OUTER MIRROR LAMP

81730LAMP ASSY, SIDE TURN SIGNAL, RH

main81730-17011iUCF10198912-199207

sub81730-17012

main81730-17012iUCF10199207-199410

81730BBULB (FOR SIDE TURN SIGNAL LAMP)

main99132-12050iUCF10198912-199410

12V 5W

81731LENS, SIDE TURN SIGNAL LAMP, RH

main81731-17011iUCF10198912-199207

sub81731-60061

main81731-60061iUCF10199207-199410

81732GASKET, SIDE TURN SIGNAL LAMP LENS, RH

main81732-17010iUCF10198912-199410

81735SOCKET AND WIRE, SIDE TURN SIGNAL LAMP

main81735-12180iUCF10198912-199410

81740LAMP ASSY, SIDE TURN SIGNAL, LH

main81730-17011iUCF10198912-199207

sub81730-17012

main81730-17012iUCF10199207-199410

81741LENS, SIDE TURN SIGNAL LAMP, LH

main81731-17011iUCF10198912-199207

sub81731-60061

main81731-60061iUCF10199207-199410

81742GASKET, SIDE TURN SIGNAL LAMP LENS, LH

main81732-17010iUCF10198912-199410

8 parts on this diagram · 1 diagram in section
