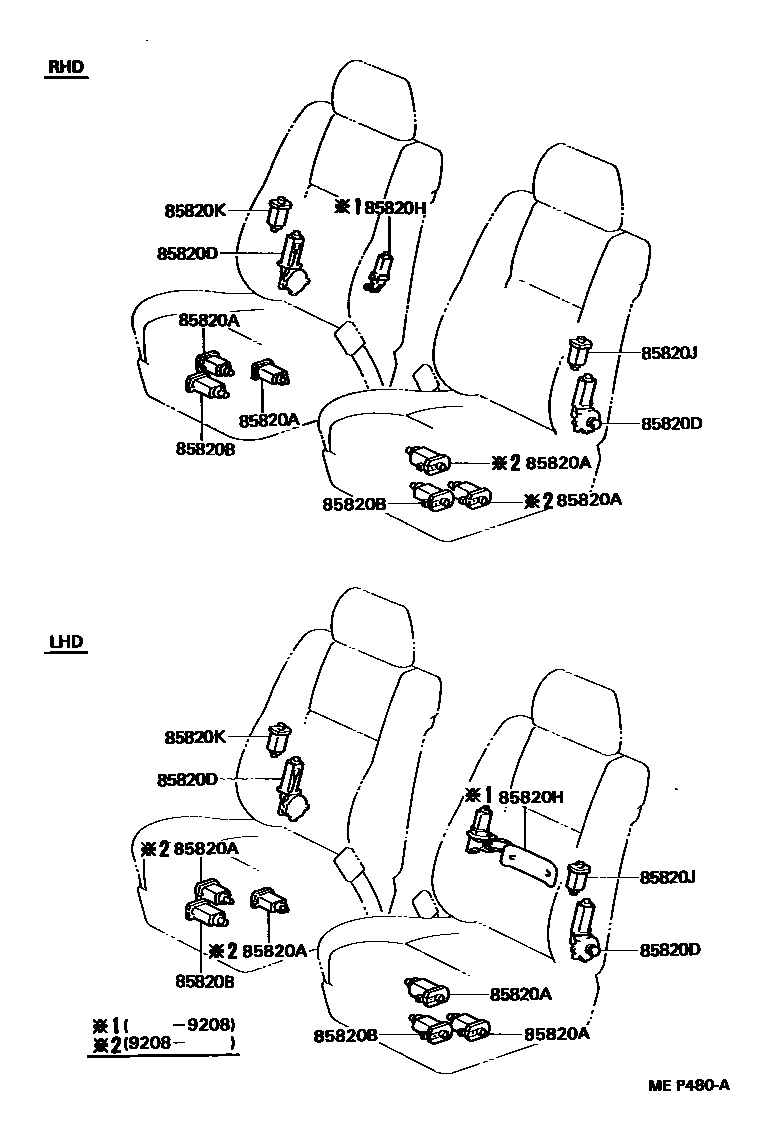

Toyota LEXUS LS400 — SEAT MOTOR & SEAT HEATER

85820AMOTOR ASSY, POWER SEAT (FOR FRONT UP, DOWN)

main85820-50030iUCF10..LHD198912-199208

main85820-50100iUCF10..RHD198912-199208

sub85820-30160

main85820-50140iUCF10199208-199410

RH

main85820-50160iUCF10199208-199410

LH

85820BMOTOR ASSY, POWER SEAT (FOR FRONT SLIDE)

main85820-22050iUCF10198912-199208

PASSENGER

main85820-30420iUCF10199208-199410

RH

sub85820-32040

main85820-50010iUCF10..LHD198912-199208

DRIVER

main85820-50090iUCF10..RHD198912-199208

DRIVER

main85820-50150iUCF10199208-199410

LH

85820DMOTOR ASSY, POWER SEAT (FOR FRONT RECLINING)

main85801-50010iUCF10..V198912-199208

LH

main85801-50010iUCF10..V198912-199208

W(MEMORY ADJUST SYSTEM),LH

main85801-50020iUCF10..ARL,GEN198912-199208

RH

main85801-50020iUCF10..ARL,GEN198912-199208

W(MEMORY ADJUST SYSTEM),RH

main85801-50030iUCF10..RHD199208-199410

RH

main85801-50040iUCF10..LHD..EUR199208-199410

LH

main85801-50040iUCF10..V199208-199308

W(MEMORY ADJUST SYSTEM),LH

main85820-50040iUCF10..LHD198912-199410

RH

main85820-50050iUCF10..ARL,EUR,GEN198912-199410

LH

85820HMOTOR ASSY, POWER SEAT

main85820-50070iUCF10..LHD198912-199208

sub85820-24070

main85820-50120iUCF10..RHD198912-199208

85820JMOTOR ASSY, POWER SEAT

main85820-50060iUCF10..ARL,GEN,V198912-199208

W(MEMORY ADJUST SYSTEM)

main85820-50200iUCF10..V;UCF10..RHD199208-199308

W(MEMORY ADJUST SYSTEM)

main85820-50200iUCF10199308-199410

85820KMOTOR ASSY, POWER SEAT

main85820-50080iUCF10..ARL,GEN,V198912-199208

W(MEMORY ADJUST SYSTEM)

main85820-50240iUCF10..LHD..EUR199208-199308

W(MEMORY ADJUST SYSTEM)

main85820-50240iUCF10199308-199410

6 parts on this diagram · 1 diagram in section
