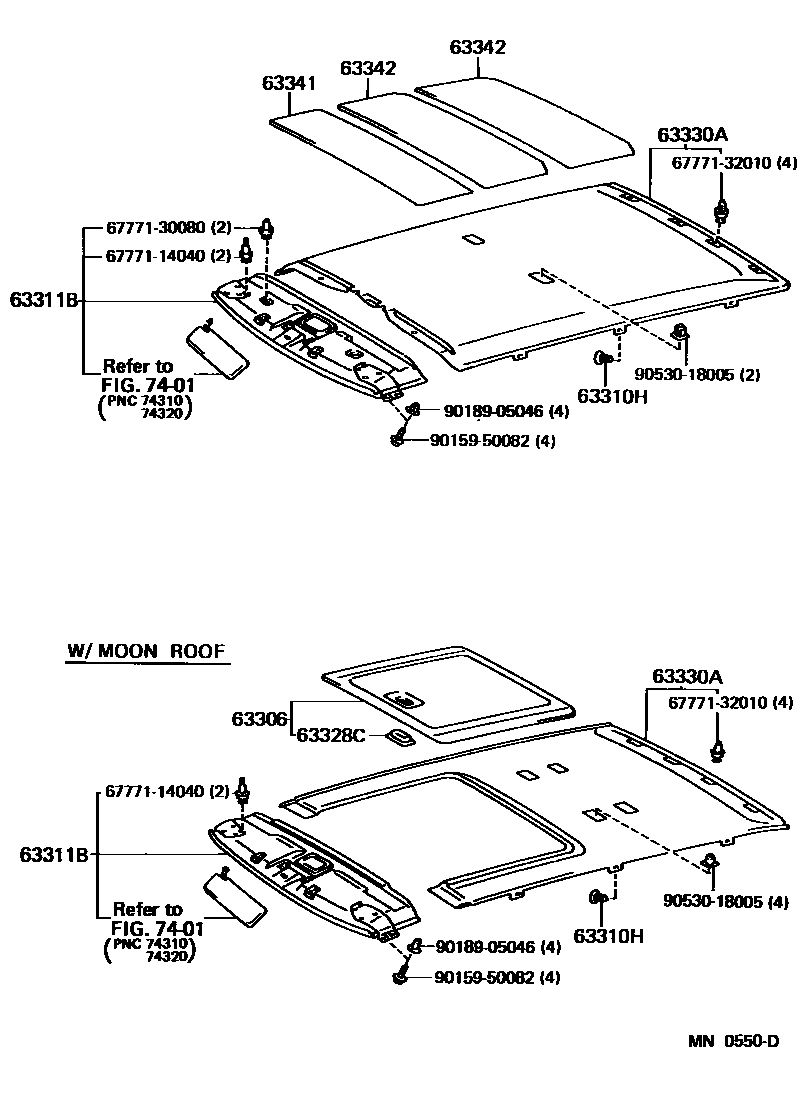

Toyota LEXUS LS400 — ROOF HEADLINING & SILENCER PAD
63306TRIM SUB-ASSY, SUNSHADE
63310HCLIP(FOR ROOF HEADLINING)
W(MOON ROOF),BLACK,TRIM0#,1#,3#,4#,8#
sub90467-06048
63311BHEADLINING, ROOF, FRONT
SHADOW GRAY,TRIM1#
DARK BLUE,TRIM8#
GREIGE,TRIM0#
DARK ROSE,TRIM4#
SHADOW GRAY,TRIM1#
DARK ROSE,TRIM4#
GREIGE,TRIM0#
DARK BLUE,TRIM8#
W(MOON ROOF),SHADOW GRAY,TRIM1#
W(MOON ROOF),DARK BLUE,TRIM8#
W(MOON ROOF),GREIGE,TRIM0#
W(MOON ROOF),DARK ROSE,TRIM4#
W(MOON ROOF),SHADOW GRAY,TRIM1#
W(MOON ROOF),DARK ROSE,TRIM4#
W(MOON ROOF),GREIGE,TRIM0#
W(MOON ROOF),DARK BLUE,TRIM8#
SHADOW GRAY,TRIM1#
DARK ROSE,TRIM4#
GREIGE,TRIM0#
DARK BLUE,TRIM8#
W(MOON ROOF),SHADOW GRAY,TRIM1#
W(MOON ROOF),DARK ROSE,TRIM4#
W(MOON ROOF),GREIGE,TRIM0#
W(MOON ROOF),DARK BLUE,TRIM8#
SHADOW GRAY,TRIM1#
BLACK,TRIM2#
OAK,TRIM0#
DK. BLUE,TRIM8#
W(MOON ROOF),SHADOW GRAY,TRIM1#
W(MOON ROOF),BLACK,TRIM2#
W(MOON ROOF),OAK,TRIM0#
W(MOON ROOF),DK. BLUE,TRIM8#
SHADOW GRAY,TRIM1#
OAK,TRIM0#
DK. BLUE,TRIM8#
TAUPE,TRIM9#
W(MOON ROOF),SHADOW GRAY,TRIM1#
W(MOON ROOF),OAK,TRIM0#
W(MOON ROOF),DK. BLUE,TRIM8#
W(MOON ROOF),TAUPE,TRIM9#
SHADOW GRAY,TRIM1#
BLACK,TRIM2#
OAK,TRIM0#
DK. BLUE,TRIM8#
TAUPE,TRIM9#
W(MOON ROOF),SHADOW GRAY,TRIM1#
W(MOON ROOF),BLACK,TRIM2#
W(MOON ROOF),OAK,TRIM0#
W(MOON ROOF),DK. BLUE,TRIM8#
W(MOON ROOF),TAUPE,TRIM9#
63328CKNOB, SUNSHADE TRIM
63330AHEADLINING ASSY, ROOF, REAR
63341PAD, ROOF SILENCER, NO.1
sub63341-22H92
63342PAD, ROOF SILENCER, NO.2
sub63341-22H92
7401
6777114040WEATHERSTRIP, BACK DOOR TRIM, RH
main67771-14040
6777130080WEATHERSTRIP, BACK DOOR TRIM, RH
main67771-30080
6777132010WEATHERSTRIP, BACK DOOR TRIM, RH
main67771-32010
9015950082
main90159-50082
9018905046
main90189-05046
9053018005
main90530-18005
14 parts on this diagram · 1 diagram in section
