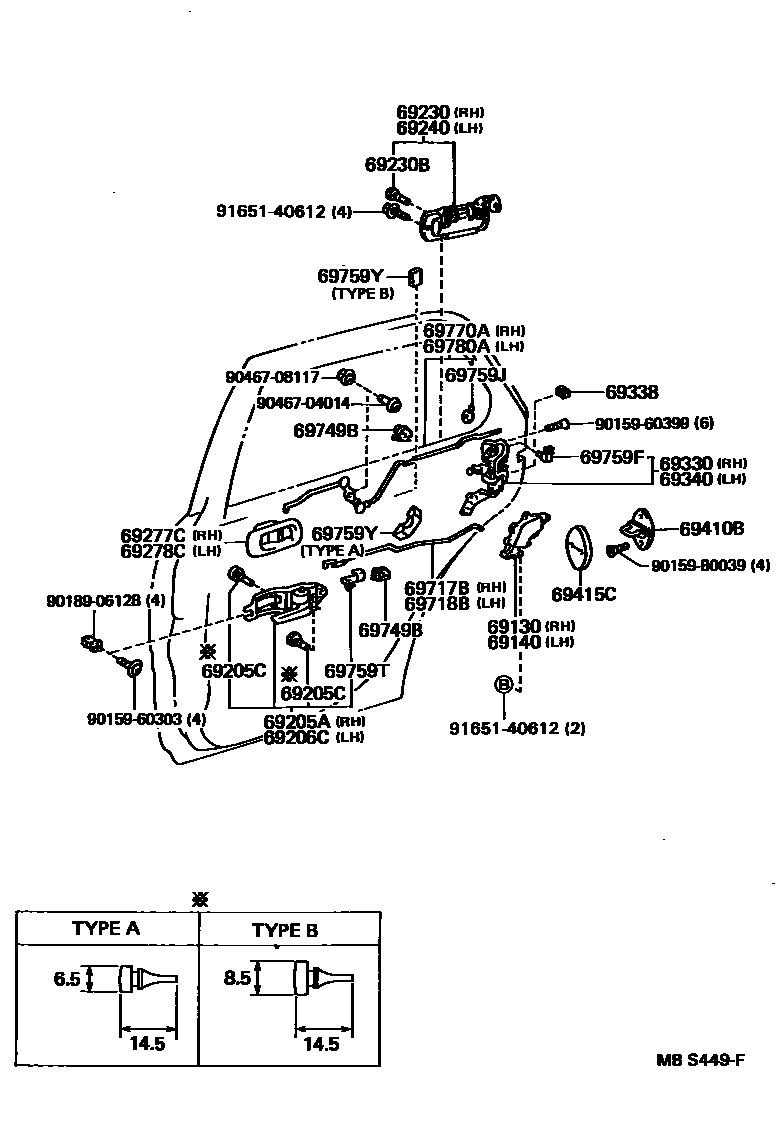

Toyota LEXUS LS400 — REAR DOOR LOCK & HANDLE
69130ACTUATOR ASSY, REAR DOOR LOCK, RH
69140ACTUATOR ASSY, REAR DOOR LOCK, LH
69205AHANDLE SUB-ASSY, REAR DOOR INSIDE, RH
69205CCUSHION(FOR REAR DOOR INSIDE HANDLE)
TYPE A
TYPE B
69206CHANDLE SUB-ASSY, REAR DOOR INSIDE, LH
69230HANDLE ASSY, REAR DOOR OUTSIDE, RH
69230BCUSHION(FOR REAR DOOR OUTSIDE HANDLE)
69240HANDLE ASSY, REAR DOOR OUTSIDE, LH
69277CBEZEL, REAR DOOR INSIDE HANDLE, RH
69278CBEZEL, REAR DOOR INSIDE HANDLE, LH
69338KNOB, CHILD PROTECTOR LOCK LEVER
69410BPLATE ASSY, REAR DOOR LOCK STRIKER
69415CCOVER, DOOR LOCK STRIKER, REAR
69717BLINK, REAR DOOR LOCK REMOTE CONTROL, RH
69718BLINK, REAR DOOR LOCK REMOTE CONTROL, LH
69749BCLAMP, REAR DOOR LOCK LINK
NATURAL
YELLOW
69759FSNAP, REAR DOOR LOCK CONTROL LINK
69759JSILENCER, DOOR LOCK LINK
69759TSNAP, REAR DOOR INSIDE HANDLE
GRAY
NATURAL
69759YSILENCER, REAR DOOR LOCK LINK
TYPE A
TYPE B
69770ALINK ASSY, REAR DOOR INSIDE LOCKING, RH
69780ALINK ASSY, REAR DOOR INSIDE LOCKING, LH
9015960303
main90159-60303
9015960399
main90159-60399
9015980039
main90159-80039
9018906128
main90189-06128
9046704014
main90467-04014
9046708117
main90467-08117
9165140612
main91651-40612
31 parts on this diagram · 1 diagram in section
