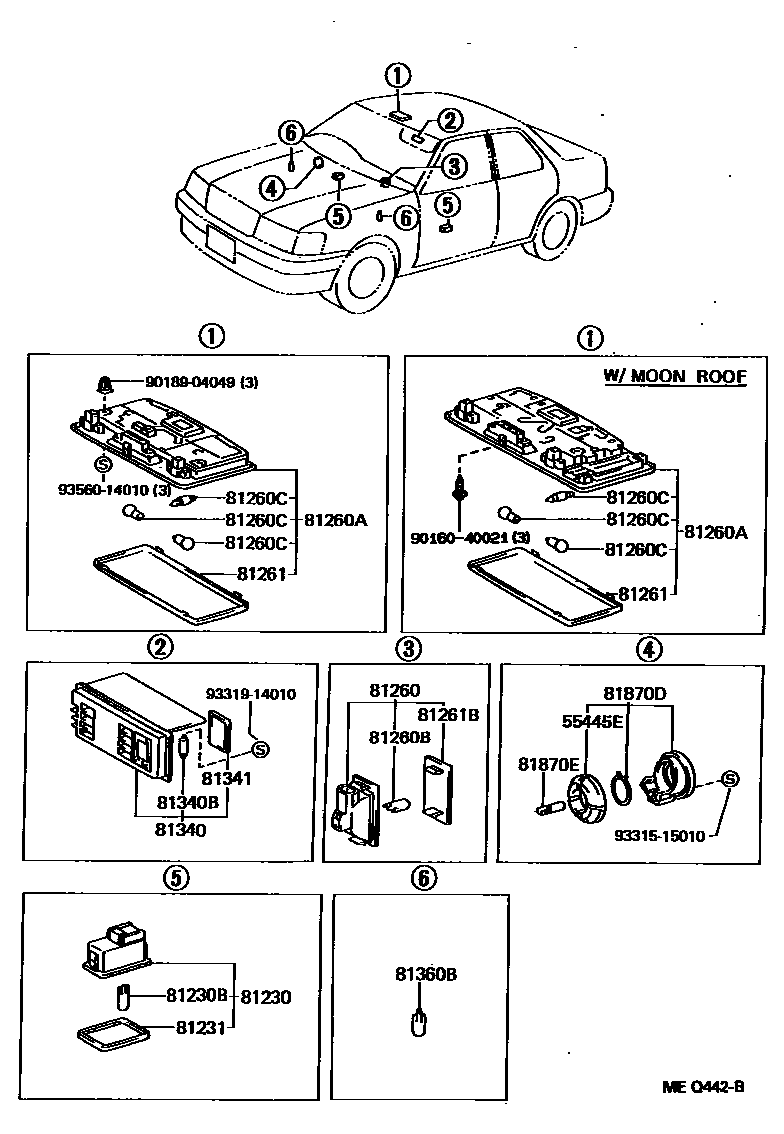

Toyota LEXUS LS400 — INTERIOR LAMP

0001 1 0002 1

55445EPLATE, INSTRUMENT PANEL FINISH

main55445-50020iUCF10198912-199410

81230LAMP ASSY, COURTESY

main81230-30140iUCF10..ARL,GEN,V199208-199410

main81230-50010iUCF10..ARL,GEN,V198912-199208

main81230-50020iUCF10..EUR198912-199208

main81230-50040iUCF10..EUR199208-199410

81230BBULB(FOR COURTESY LAMP)

main90981-11020iUCF10198912-199410

12V 3.8W

81231LENS, COURTESY LAMP

main81231-50010iUCF10..ARL,GEN,V198912-199410

main81231-50020iUCF10..EUR198912-199410

81260LAMP ASSY, GLOVE BOX

main81260-50010iUCF10198912-199410

81260ALAMP ASSY, MAP

main81260-50020-02iUCF10..V198912-199108

RED,TRIM3#

sub81260-50020

main81260-50020-03iUCF10198912-199208

SHADOW GRAY,TRIM1#

sub81260-50020

main81260-50020-04iUCF10198912-199208

DARK BLUE,TRIM8#

sub81260-50020

main81260-50020-05iUCF10198912-199208

GREIGE,TRIM0#

sub81260-50020

main81260-50020-06iUCF10198912-199208

DARK ROSE,TRIM4#

sub81260-50020

main81260-50030-02iUCF10..V198912-199108

W(MOON ROOF),RED,TRIM3#

sub81260-50030

main81260-50030-03iUCF10198912-199208

W(MOON ROOF),SHADOW GRAY,TRIM1#

sub81260-50030

main81260-50030-04iUCF10198912-199208

W(MOON ROOF),DARK BLUE,TRIM8#

sub81260-50030

main81260-50030-05iUCF10198912-199208

W(MOON ROOF),GREIGE,TRIM0#

sub81260-50030

main81260-50030-06iUCF10198912-199208

W(MOON ROOF),DARK ROSE,TRIM4#

sub81260-50030

main81260-50040-B0iUCF10199208-199410

SHADOW GRAY,TRIM1#

sub81260-50040

main81260-50040-C0iUCF10..EUR199208-199410

BLACK,TRIM2#

sub81260-50040

main81260-50040-E0iUCF10199208-199410

OAK,TRIM0#

sub81260-50040

main81260-50040-J0iUCF10199208-199410

DK.BLUE,TRIM8#

sub81260-50040

main81260-50040-K0iUCF10..ARL,GEN,V199208-199410

TAUPE,TRIM9#

sub81260-50040

main81260-50050-B0iUCF10199208-199410

W(MOON ROOF),SHADOW GRAY,TRIM1#

sub81260-50050

main81260-50050-C0iUCF10..EUR199208-199410

W(MOON ROOF),BLACK,TRIM2#

sub81260-50050

main81260-50050-E0iUCF10199208-199410

W(MOON ROOF),OAK,TRIM0#

sub81260-50050

main81260-50050-J0iUCF10199208-199410

W(MOON ROOF),DK.BLUE,TRIM8#

sub81260-50050

main81260-50050-K0iUCF10..ARL,GEN,V199208-199410

W(MOON ROOF),TAUPE,TRIM9#

sub81260-50050

81260BBULB(FOR GLOVE BOX)

main90981-11018iUCF10198912-199410

12V 1.2W W/O SOCKET

81260CBULB(FOR MAP LAMP)

main90981-12005iUCF10198912-199208

12V 8W,W(MOON ROOF),MAP LAMP

main90981-12014iUCF10198912-199410

12V 10W,MAP LAMP

main99132-12100iUCF10198912-199410

12V 10W,ROOM LAMP

81261LENS AND COVER, MAP LAMP

main81261-50020iUCF10198912-199410

main81261-50030iUCF10198912-199410

W(MOON ROOF)

81261BLENS,GLOVE BOX LAMP

main81261-50010iUCF10198912-199410

81340LAMP ASSY, VANITY

main81340-50020-02iUCF10..V198912-199108

RED,TRIM3#,LH

sub81340-50020

main81340-50020-03iUCF10..GEN,V198912-199108

SHADOW GRAY,TRIM1#,LH

sub81340-50020

main81340-50020-04iUCF10..GEN,V198912-199108

DARK BLUE,TRIM8#,LH

sub81340-50020

main81340-50020-05iUCF10..GEN,V198912-199108

GREIGE,TRIM0#,LH

sub81340-50020

main81340-50020-06iUCF10..GEN,V198912-199108

DARK ROSE,TRIM4#,LH

sub81340-50020

main81340-50040-B1iUCF10199108-199208

SHADOW GRAY,TRIM1#,LH

sub81340-50040

main81340-50040-E1iUCF10199108-199208

GREIGE,TRIM0#,LH

sub81340-50040

main81340-50040-E2iUCF10199108-199208

DARK ROSE,TRIM4#,LH

sub81340-50040

main81340-50040-J0iUCF10199108-199208

DARK BLUE,TRIM8#,LH

sub81340-50040

main81340-50050-B1iUCF10199208-199410

SHADOW GRAY,TRIM1#,LH

sub81340-50050

main81340-50050-C1iUCF10..EUR199208-199410

BLACK,TRIM2#,LH

sub81340-50050

main81340-50050-E1iUCF10199208-199410

OAK,TRIM0#,LH

sub81340-50050

main81340-50050-J1iUCF10199208-199410

DK. BLUE,TRIM8#,LH

sub81340-50050

main81340-50050-K1iUCF10..ARL,GEN,V199208-199410

TAUPE,TRIM9#,LH

sub81340-50050

main81350-50010-02iUCF10..V198912-199108

RED,TRIM3#,RH

sub81350-50010

main81350-50010-03iUCF10..GEN,V198912-199108

SHADOW GRAY,TRIM1#,RH

sub81350-50010

main81350-50010-04iUCF10..GEN,V198912-199108

DARK BLUE,TRIM8#,RH

sub81350-50010

main81350-50010-05iUCF10..GEN,V198912-199108

GREIGE,TRIM0#,RH

sub81350-50010

main81350-50010-06iUCF10..GEN,V198912-199108

DARK ROSE,TRIM4#,RH

sub81350-50010

main81350-50030-B1iUCF10199108-199208

SHADOW GRAY,TRIM1#,RH

sub81350-50030

main81350-50030-E1iUCF10199108-199208

GREIGE,TRIM0#,RH

sub81350-50030

main81350-50030-E2iUCF10199108-199208

DARK ROSE,TRIM4#,RH

sub81350-50030

main81350-50030-J0iUCF10199108-199208

DARK BLUE,TRIM8#,RH

sub81350-50030

main81350-50050-B1iUCF10199208-199410

SHADOW GRAY,TRIM1#,RH

sub81350-50050

main81350-50050-C1iUCF10..EUR199208-199410

BLACK,TRIM2#,RH

sub81350-50050

main81350-50050-E1iUCF10199208-199410

OAK,TRIM0#,RH

sub81350-50050

main81350-50050-J1iUCF10199208-199410

DK. BLUE,TRIM8#,RH

sub81350-50050

main81350-50050-K1iUCF10..ARL,GEN,V199208-199410

TAUPE,TRIM9#,RH

sub81350-50050

81340BBULB (FOR VANITY LAMP)

main90981-14007iUCF10..GEN,V198912-199410

12V 3W

81341LENS, VANITY LAMP

main81341-50010iUCF10198912-199410

81360BBULB, STEP OR SPOT LAMP

main90981-11018iUCF10198912-199208

12V 1.2W W/O SOCKET

main90981-11041iUCF10..LHD..EUR199208-199410

14V 1.4W

81870DLAMP ASSY, KEY CYLINDER

main81870-50010iUCF10198912-199410

81870EBULB, KEY CYLINDER LAMP

main90981-11041iUCF10198912-199410

14V 1.4W

9016040021

main90160-40021

9018904049

main90189-04049

9331515010

main93315-15010

9331914010

main93319-14010

9356014010

main93560-14010

21 parts on this diagram · 2 diagrams in section
