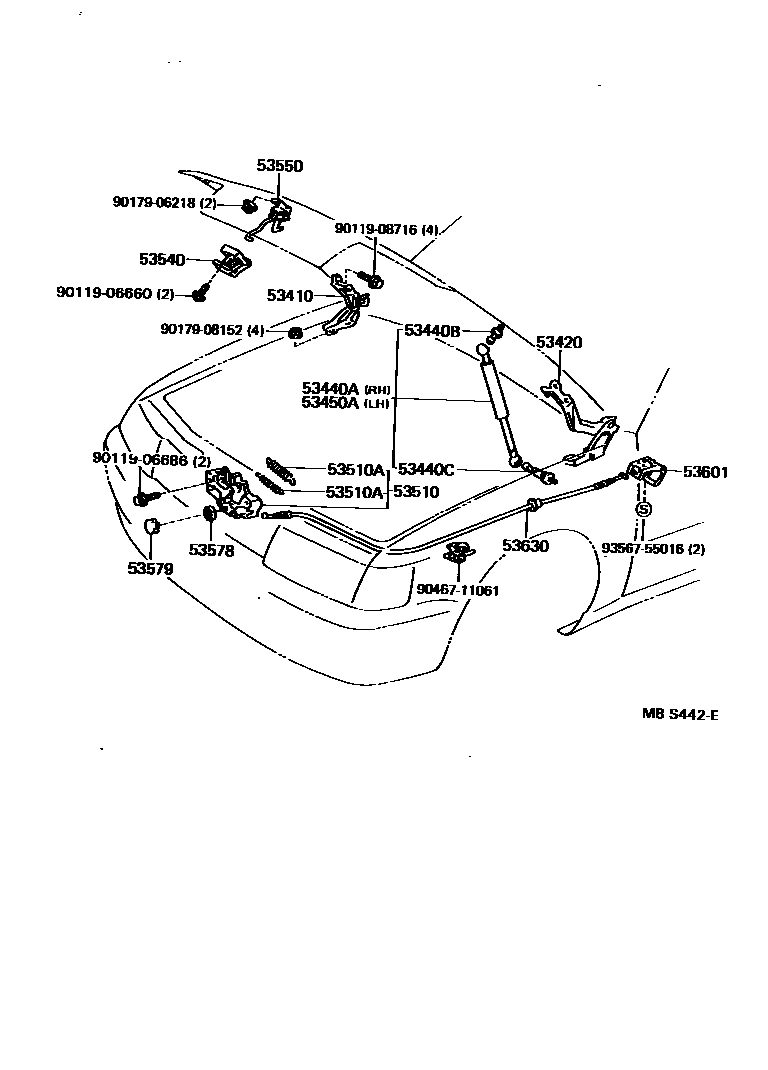

Toyota LEXUS LS400 — HOOD LOCK & HINGE
53410HINGE ASSY, HOOD, RH
53420HINGE ASSY, HOOD, LH
53440ASUPPORT ASSY, HOOD, RH
53440BBOLT, HOOD SUPPORT, NO.1
sub68961-20051
53440CBOLT, HOOD SUPPORT, NO.2
53450ASUPPORT ASSY, HOOD, LH
53510ASPRING, TENSION(FOR HOOD LOCK)
WD=0.9,CW=20.5,OD=9,L=36.3
WD=1.8,CW=18,OD=15,L=52
53540LEVER ASSY, AUXILIARY CATCH RELEASE
53550HOOK ASSY, HOOD AUXILIARY CATCH
53578NUT, HOOD LOCK
53579CAP, HOOD LOCK NUT
53601LEVER SUB-ASSY, HOOD LOCK CONTROL
53630CABLE ASSY, HOOD LOCK CONTROL
9011906660
main90119-06660
9011906686
main90119-06686
9011908716
main90119-08716
9017906218
main90179-06218
9017908152
main90179-08152
9046711061
main90467-11061
9356755016
main93567-55016
21 parts on this diagram · 1 diagram in section
