Toyota LEXUS LS400 — HEATING & AIR CONDITIONING - HEATER UNIT & BLOWER

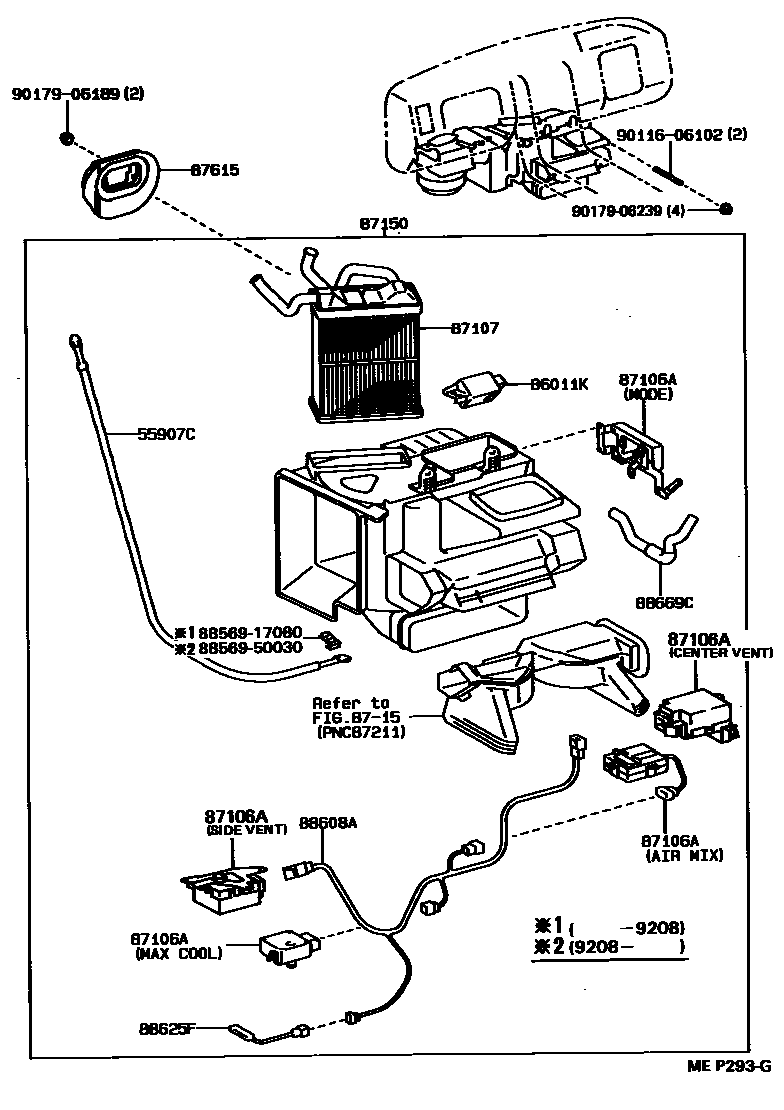

Parts diagram

55907CCABLE SUB-ASSY, WATER VALVE CONTROL

main87286-50010i198912-199208

main87286-50020i198912-199410

main87286-50030i199208-199410

86011KFILTER, NOISE

main90980-05165i198912-199410

main90980-05166i198912-199410

87106ASERVO SUB-ASSY, DAMPER

main87106-50010i198912-199410

MODE

main87106-50020i198912-199208

AIR MIX

main87106-50030i198912-199208

MAX COOL

main87106-50050i198912-199410

MODE

main87106-50060i198912-199208

AIR MIX

main87106-50070i198912-199208

MAX COOL

main87106-50100i198912-199410

CENTER VENT

main87106-50110i198912-199410

SIDE VENT

main87106-50120i199208-199410

AIR MIX

main87106-50130i199208-199410

MAX COOL

main87106-50140i199208-199410

AIR MIX

main87106-50150i199208-199410

MAX COOL

87107UNIT SUB-ASSY, HEATER RADIATOR

main87107-50010i198912-199410

main87107-50020i198912-199410

8715

87150RADIATOR ASSY, HEATER

main87150-50011i198912-199208

main87150-50020i198912-199208

main87150-50030i199208-199410

main87150-50040i199208-199410

87615RETAINER, INSULATOR

main87615-50010i198912-199410

main87615-50020i198912-199410

88608AHARNESS SUB-ASSY, WIRING AIR CONDITIONER, NO.2

main88608-50030i198912-199208

main88608-50040i198912-199208

main88608-50110i199208-199410

main88608-50120i199208-199410

88625FSENSOR, TEMPERATURE

main88790-24040i198912-199208

main88790-50020i199208-199410

88669CHOSE, AIR

main88669-50010i198912-199410

main88669-50020i198912-199410

8856917080CLAMP (FOR COOLER RELAY)

main88569-17080

8856950030CLAMP (FOR COOLER RELAY)

main88569-50030

9011606102

main90116-06102

9017906189

main90179-06189

9017906239

main90179-06239

15 parts on this diagram · 2 diagrams in section
