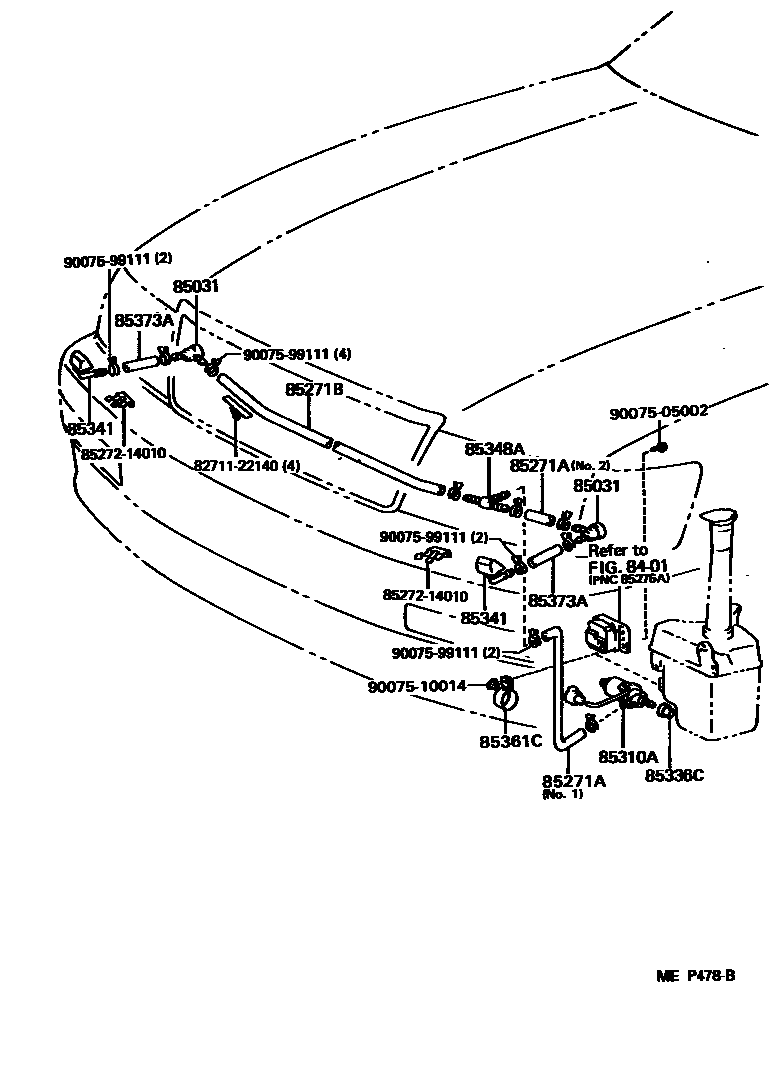

Toyota LEXUS LS400 — HEADLAMP CLEANER
8401
85031VALVE, HEADLAMP CLEANER WASHER HOSE
85271AHOSE, HEADLAMP CLEANER, NO.2
L=50,NO.1
L=50,NO.2
85271BHOSE, HEADLAMP CLEANER, NO.3
85336CPACKING, HEADLAMP CLEANER MOTOR
85341NOZZLE, HEADLAMP CLEANER WASHER
85348AJOINT, HEADLAMP CLEANER HOSE, NO.1
85361CBRACKET, WASHER
85373AHOSE, HEADLAMP CLEANER WASHER (FROM JOINT TO NOZZLE)
8271122140WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-22140
8527214010CABLE SUB-ASSY, HEADLAMP CLEANER, RH
main85272-14010
9007505002
main90075-05002
9007510014
main90075-10014
9007599111
main90075-99111
15 parts on this diagram · 1 diagram in section
