Toyota LEXUS LS400 — FRONT FENDER APRON & DASH PANEL

53202SUPPORT SUB-ASSY, RADIATOR, RH

main53202-50010iUCF10198912-199108

sub53202-50011

main53202-50011iUCF10199108-199410

53203SUPPORT SUB-ASSY, RADIATOR, LH

main53203-50010iUCF10198912-199410

53204DGUIDE SUB-ASSY, LOWER WIND

main53204-50010iUCF10198912-199206

sub53204-50011

main53204-50011iUCF10199206-199410

53205SUPPORT SUB-ASSY, RADIATOR, UPPER

main53205-50010iUCF10198912-199204

sub53205-50011

main53205-50011iUCF10199204-199208

sub53205-50012

sub53882-50020

main53205-50012iUCF10199208-199410

53208ASUPPORT SUB-ASSY, HOOD LOCK

main53217-50010iUCF10198912-199410

53273BRACKET, FRONT BUMPER ARM MOUNTING, RH

main53273-50010iUCF10198912-199410

53274BRACKET, FRONT BUMPER ARM MOUNTING, LH

main53274-50010iUCF10198912-199410

53285BSEAL, RADIATOR SIDE AIR, NO.1

main53285-50010iUCF10..ARL,EUR,GEN198912-199410

main53285-50020iUCF10..V199006-199410

main53285-50020iUCF10..LHD..EUR199308-199410

ISRAEL SPEC

53286BSEAL, RADIATOR SIDE AIR, NO.2

main53286-50010iUCF10..GEN,V198912-199410

main53286-50020iUCF10..GEN,V198912-199410

W(FRONT SPOILER)

main53286-50020iUCF10..ARL,EUR198912-199410

53291SEAL, RADIATOR SUPPORT TO FRAME, RH

main53291-50010iUCF10..LHD198912-199410

main53291-50020iUCF10..RHD198912-199410

53292SEAL, RADIATOR SUPPORT TO FRAME, LH

main53292-50010iUCF10..LHD198912-199410

main53292-50020iUCF10..RHD198912-199410

53293BSEAL, RADIATOR SUPPORT SERVICE HOLE

main53293-50010iUCF10198912-199208

sub53293-50011

main53293-50011iUCF10199208-199410

53561GUIDE, HOOD AUXILIARY CATCH HOOK

main53561-50010iUCF10198912-199410

53701APRON SUB-ASSY, FRONT FENDER, RH

main53701-50030iUCF10..RHD..EUR198912-199208

W(AIR SUSPENSION)

sub53701-50032

sub53801-50012

sub53801-50022

sub53882-50020

main53701-50040iUCF10..RHD198912-199208

sub53701-50042

sub53801-50012

sub53801-50022

sub53882-50020

main53701-50042iUCF10..RHD199208-199212

sub53701-50043

sub48680-50060

sub48680-50070

main53701-50043iUCF10..RHD199212-199405

sub53701-50044

sub90179-06161

main53701-50044iUCF10..RHD199405-199410

sub53701-50045

main53701-50050iUCF10..LHD198912-199208

sub53701-50052

sub53801-50022

sub53882-50020

main53701-50052iUCF10..LHD199208-199212

sub53701-50053

sub48680-50060

main53701-50053iUCF10..LHD199212-199405

sub53701-50054

sub90179-06161

main53701-50054iUCF10..LHD199405-199410

sub53701-50055

main53701-50060iUCF10..LHD..EUR198912-199208

W(AIR SUSPENSION)

sub53701-50062

sub53801-50022

sub53882-50020

main53701-50062iUCF10..LHD..EUR199208-199212

W(AIR SUSPENSION)

sub53701-50063

main53701-50063iUCF10..LHD..EUR199212-199405

W(AIR SUSPENSION)

sub53701-50064

sub90179-06161

main53701-50064iUCF10..LHD..EUR199405-199410

W(AIR SUSPENSION)

sub53701-50065

53702APRON SUB-ASSY, FRONT FENDER, LH

main53702-50010iUCF10..LHD..EUR198912-199208

W(AIR SUSPENSION)

sub53702-50012

sub53802-50012

sub53802-50022

sub53882-50020

main53702-50012iUCF10..LHD..EUR199208-199212

W(AIR SUSPENSION)

sub53702-50013

main53702-50013iUCF10..LHD..EUR199308-199405

W(AIR SUSPENSION & TRACTION CONTROL)

sub53702-50014

sub90179-06161

main53702-50013iUCF10..LHD..EUR199212-199308

W(AIR SUSPENSION)

sub53702-50014

sub90179-06161

main53702-50014iUCF10..LHD..EUR199308-199410

W(AIR SUSPENSION)

sub53702-50015

main53702-50020iUCF10..LHD..EUR198912-199104

NORWAY SPEC OR SWEDEN SPEC OR FINLAND SPEC

sub53702-50022

sub53802-50012

sub53802-50022

sub53882-50020

main53702-50020iUCF10..LHD..EUR199104-199208

W(TRACTION CONTROL SYSTEM)

sub53702-50022

sub53802-50012

sub53802-50022

sub53882-50020

main53702-50020iUCF10..LHD198912-199208

sub53702-50022

sub53802-50012

sub53802-50022

sub53882-50020

main53702-50022iUCF10..LHD199208-199212

sub53702-50023

sub48680-50060

main53702-50023iUCF10..LHD..EUR199212-199405

W(TRACTION CONTROL SYSTEM)

sub53702-50024

sub90179-06161

main53702-50024iUCF10..LHD199212-199410

sub53702-50025

main53702-50050iUCF10..RHD198912-199208

sub53702-50052

sub53802-50012

sub53802-50022

sub53882-50020

main53702-50052iUCF10..RHD..(ARL,EUR)199208-199212

W(TRACTION CONTROL SYSTEM)

sub53702-50053

sub48680-50060

sub48680-50070

main53702-50053iUCF10..RHD..(ARL,EUR)199212-199405

W(TRACTION CONTROL SYSTEM)

sub53702-50054

sub90179-06161

main53702-50053iUCF10..RHD199208-199212

sub53702-50054

sub90179-06161

main53702-50054iUCF10..RHD199212-199410

sub53702-50055

main53702-50060iUCF10..RHD..EUR198912-199208

W(AIR SUSPENSION)

sub53702-50062

sub53802-50012

sub53802-50022

sub53882-50020

53711BAPRON, FRONT FENDER, FRONT RH

main53711-50010iUCF10..LHD..EUR198912-199208

W(AIR SUSPENSION)

sub53711-50011

main53711-50011iUCF10..LHD198912-199410

main53711-50020iUCF10..RHD..EUR198912-199208

W(AIR SUSPENSION)

sub53711-50021

main53711-50021iUCF10..RHD198912-199410

53712BAPRON, FRONT FENDER, FRONT LH

main53712-50010iUCF10..LHD198912-199203

sub53712-50011

main53712-50011iUCF10..LHD199203-199410

sub53712-50900

main53712-50020iUCF10..RHD198912-199203

sub53712-50021

main53712-50021iUCF10..RHD199203-199410

sub53712-50901

53731DMEMBER, FRONT APRON TO COWL SIDE, UPPER RH

main53731-50010iUCF10198912-199204

sub53731-50011

main53731-50011iUCF10199204-199208

sub53731-50012

sub53801-50012

sub53801-50022

sub53882-50020

main53731-50012iUCF10199208-199410

sub53731-50901

53732DMEMBER, FRONT APRON TO COWL SIDE, UPPER LH

main53732-50010iUCF10198912-199204

sub53732-50011

main53732-50011iUCF10199204-199208

sub53732-50012

sub53802-50012

sub53802-50022

sub53882-50020

main53732-50012iUCF10199208-199410

sub53732-50901

53735AMEMBER, FRONT APRON TO COWL SIDE, LOWER RH

main53735-50900iUCF10198912-199208

sub53735-50902

main53735-50902iUCF10199208-199410

53736CMEMBER, FRONT APRON TO COWL SIDE, LOWER LH

main53736-50900iUCF10198912-199208

sub53736-50902

main53736-50902iUCF10199208-199410

55101PANEL SUB-ASSY, DASH

main55101-50900iUCF10..LHD198912-199206

sub55101-50903

main55101-50901iUCF10..RHD198912-199206

sub55101-50904

main55101-50903iUCF10..LHD199206-199301

main55101-50904iUCF10..RHD199206-199410

55113APANEL DASH, LOWER RH, W/INSULATOR

main55113-50900iUCF10..LHD198912-199410

main55113-50901iUCF10..RHD198912-199410

55114PANEL DASH, LOWER LH, W/INSULATOR

main55114-50900iUCF10..LHD198912-199410

main55114-50901iUCF10..RHD198912-199410

55210INSULATOR ASSY, DASH PANEL

main55210-50010iUCF10..LHD198912-199208

main55210-50011iUCF10..LHD199208-199410

main55210-50020iUCF10..RHD198912-199208

main55210-50021iUCF10..RHD199208-199410

55223AINSULATOR, DASH PANEL, OUTER

main55223-50010iUCF10..LHD198912-199205

sub55223-50040

main55223-50011iUCF10..LHD199208-199410

main55223-50020iUCF10..RHD198912-199205

sub55223-50021

main55223-50021iUCF10..RHD199205-199208

main55223-50022iUCF10..RHD199208-199410

main55223-50040iUCF10..LHD199205-199208

57161AMEMBER, FRONT CROSS, FRONT W/REAR

main57104-50030iUCF10198912-199212

sub57104-50031

sub90950-01759

main57104-50031iUCF10199212-199410

8201

9011906459

main90119-06459

9011906599

main90119-06599

9015960493

main90159-60493

9017906009

main90179-06009

9018306006

main90183-06006

9018906123

main90189-06123

9046708115

main90467-08115

9046708116

main90467-08116

9046708129

main90467-08129

9046711005

main90467-11005

9046712129

main90467-12129

9056104013

main90561-04013

9056109013

main90561-09013

9056111003

main90561-11003

9056111004

main90561-11004

9056112009

main90561-12009

9056113001

main90561-13001

9095001006

main90950-01006

9095001112

main90950-01112

9095001133

main90950-01133

9095001181

main90950-01181

9095001247

main90950-01247

9095001356

main90950-01356

9095001398

main90950-01398

9095001555

main90950-01555

9095001657

main90950-01657

9095001662

main90950-01662

9095001663

main90950-01663

9095001664

main90950-01664

9095001680

main90950-01680

9095001684

main90950-01684

9095001736

main90950-01736

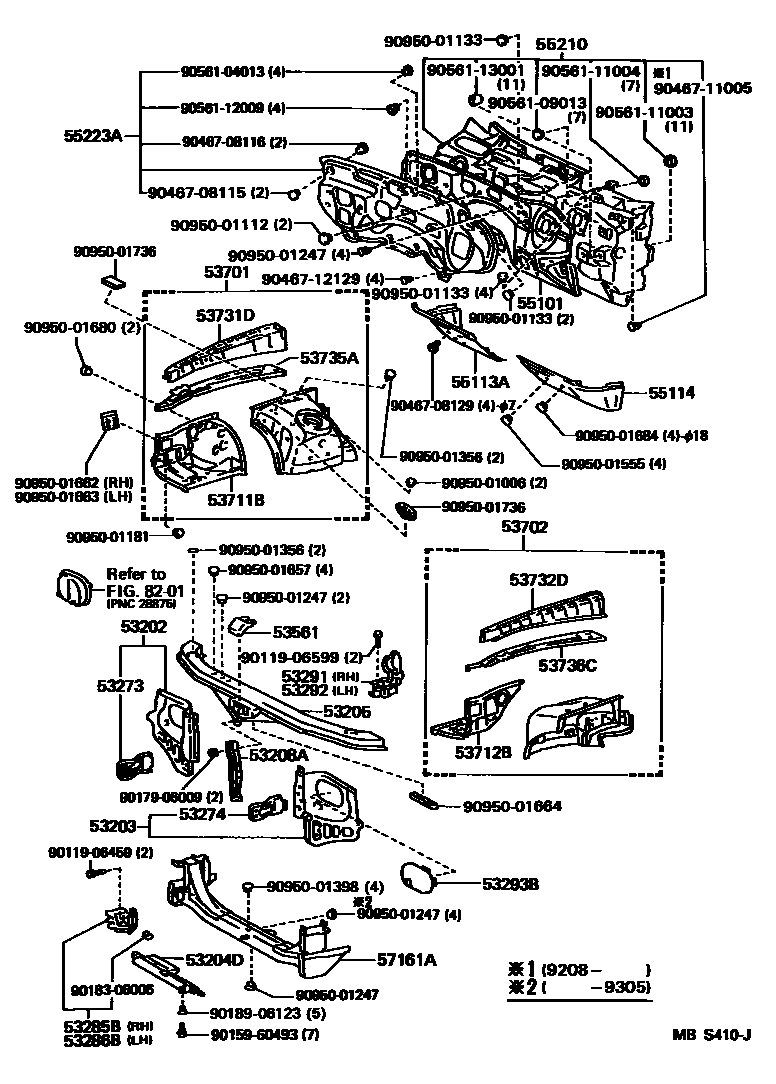

60 parts on this diagram · 1 diagram in section
