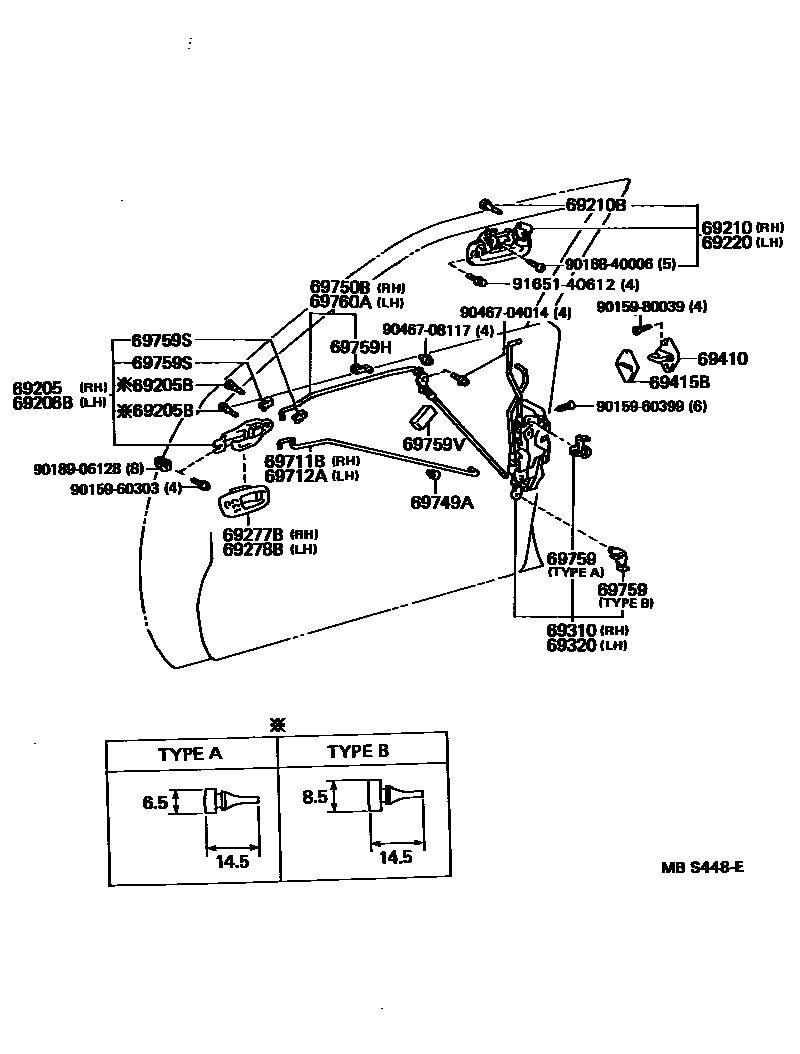

Toyota LEXUS LS400 — FRONT DOOR LOCK & HANDLE
69205HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH
69205BCUSHION(FOR FRONT DOOR INSIDE HANDLE)
TYPE A
TYPE B
69206BHANDLE SUB-ASSY, FRONT DOOR INSIDE, LH
69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH
69210BCUSHION(FOR FRONT DOOR OUTSIDE HANDLE)
69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH
69277BBEZEL, FRONT DOOR INSIDE HANDLE, RH
69278BBEZEL, FRONT DOOR INSIDE HANDLE, LH
69310LOCK ASSY, FRONT DOOR, RH
sub69030-50021
sub69030-50080
sub69030-50080
sub69030-50041
sub69030-50100
sub69030-50080
69320LOCK ASSY, FRONT DOOR, LH
sub69040-50021
sub69040-50080
sub69040-50080
sub69040-50041
sub69040-50100
sub69040-50080
69410PLATE ASSY, FRONT DOOR LOCK STRIKER
69415BCOVER, DOOR LOCK STRIKER, FRONT
69711BLINK, FRONT DOOR LOCK REMOTE CONTROL, RH
69712ALINK, FRONT DOOR LOCK REMOTE CONTROL, LH
69749ACLAMP, FRONT DOOR LOCK LINK, NO.1
69750BLINK ASSY, FRONT DOOR INSIDE LOCKING, RH
69759SNAP, DOOR LOCK CONTROL LINK, NO.1
TYPE A
TYPE B
69759HSNAP, DOOR LOCK CONTROL LINK, NO.2
NATURAL
BLUE
69759SSNAP, FRONT DOOR INSIDE HANDLE
GREEN
BLUE
69759VSILENCER, FRONT DOOR LOCK LINK
69760ALINK ASSY, FRONT DOOR INSIDE LOCKING, LH
9015960303
main90159-60303
9015960399
main90159-60399
9015980039
main90159-80039
9016840006
main90168-40006
9018906128
main90189-06128
9046704014
main90467-04014
9046708117
main90467-08117
9165140612
main91651-40612
29 parts on this diagram · 1 diagram in section
