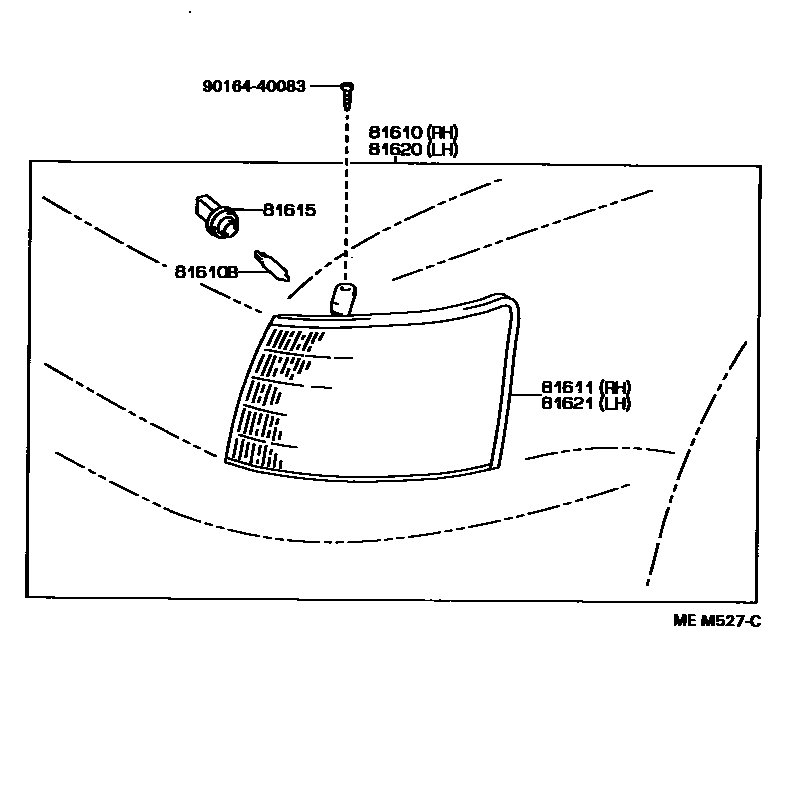

Toyota LEXUS LS400 — FRONT CLEARANCE LAMP

81610LAMP ASSY, PARKING & CLEARANCE, RH

main81610-50010iUCF10..GEN,V198912-199209

sub81610-50021

main81610-50020iUCF10..ARL,EUR198912-199207

sub81610-50021

main81610-50021iUCF10..ARL,EUR199207-199209

main81610-50030iUCF10..GEN,V199209-199304

sub81610-50040

main81610-50040iUCF10199209-199410

81610BBULB(FOR PARKING & CLEARANCE LAMP)

main90981-12023iUCF10..GEN,V198912-199304

12V 5W,HALOGEN

sub99132-12050

main99132-12050iUCF10..ARL,EUR198912-199410

12V 5W

81611LENS, PARKING & CLEARANCE LAMP, RH

main81611-50020iUCF10198912-199207

sub81611-50021

main81611-50021iUCF10199207-199209

main81611-50030iUCF10199209-199410

81615SOCKET AND WIRE, CLEARANCE LAMP

main81735-12180iUCF10198912-199410

81620LAMP ASSY, PARKING & CLEARANCE, LH

main81620-50010iUCF10..GEN,V198912-199209

sub81620-50021

main81620-50020iUCF10..ARL,EUR198912-199207

sub81620-50021

main81620-50021iUCF10..ARL,EUR199207-199209

main81620-50030iUCF10..GEN,V199209-199304

sub81620-50040

main81620-50040iUCF10..ARL,EUR199209-199410

81621LENS, PARKING & CLEARANCE LAMP, LH

main81621-50020iUCF10198912-199207

sub81621-50021

main81621-50021iUCF10199207-199209

main81621-50030iUCF10199209-199410

9016440083

main90164-40083

7 parts on this diagram · 1 diagram in section
