Toyota LEXUS LS400 — FLOOR SIDE MEMBER

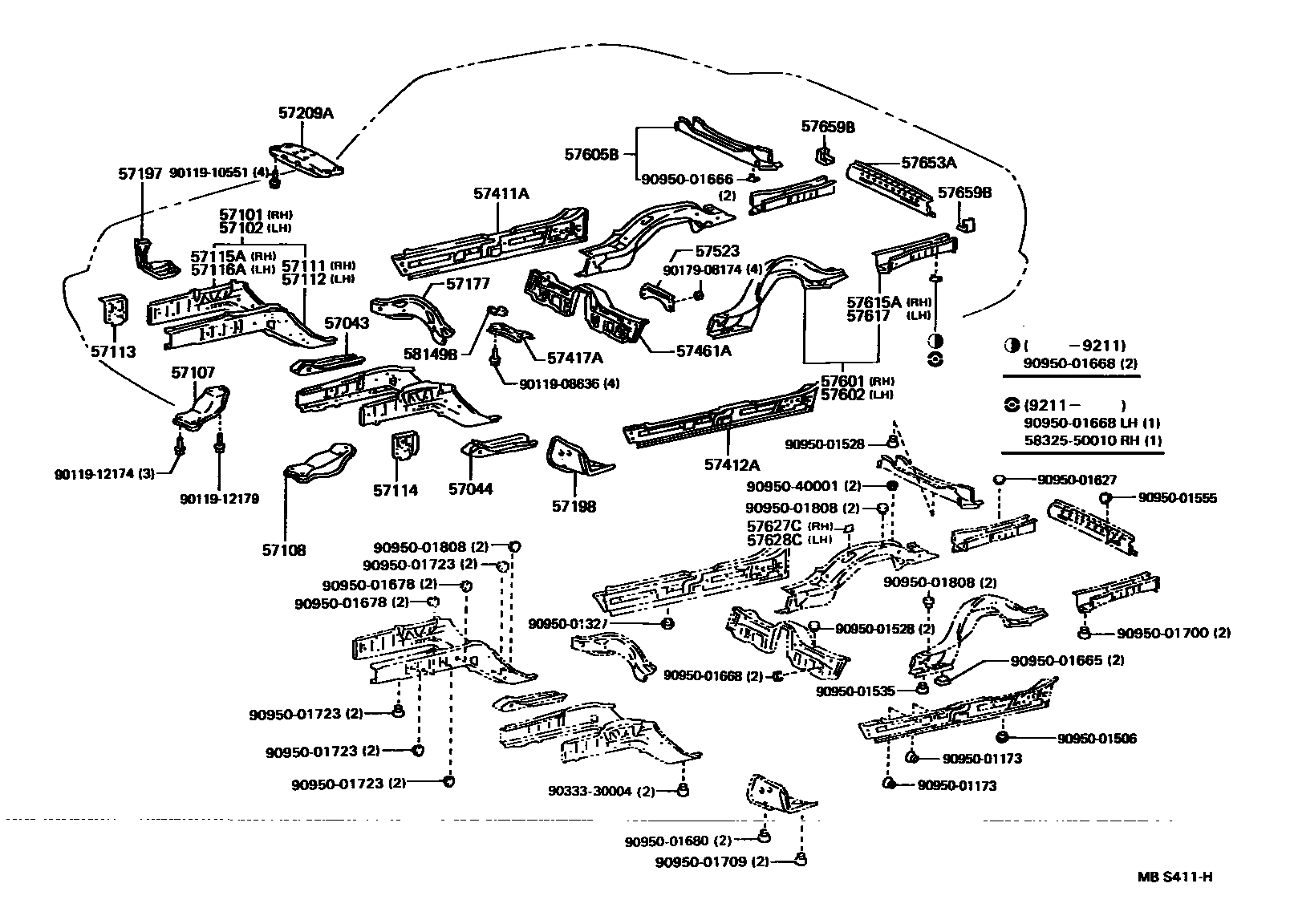

Parts diagram
57043REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, REAR RH
main57043-50010i198912-199410
57044REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, REAR LH
main57044-50010i198912-199410
57101MEMBER SUB-ASSY, FRONT SIDE, RH
main57101-50900i198912-199208
sub57101-50903
main57101-50901i198912-199208
sub57101-50904
main57101-50902i198912-199208
sub57101-50907
main57101-50903i199208-199212
sub57101-50905
sub51229-50011
sub52285-30020
sub90119-06388
main57101-50904i199208-199212
sub57101-50906
sub51229-50011
sub52285-30020
sub90119-06388
main57101-50905i199208-199410
sub57101-50913
sub90950-01356
main57101-50906i199208-199410
sub57101-50914
sub90950-01356
main57101-50907i199208-199410
sub57101-50915
sub90950-01356
57102MEMBER SUB-ASSY, FRONT SIDE, LH
main57102-50900i198912-199208
sub57102-50902
main57102-50901i198912-199208
sub57102-50903
main57102-50902i199208-199212
sub57102-50904
sub51229-50011
sub52285-30020
sub90119-06388
main57102-50903i199208-199212
sub57102-50905
sub51229-50011
sub52285-30020
sub90119-06388
main57102-50904i199208-199410
sub57102-50910
sub90333-30002
sub90950-01356
sub90950-01409
main57102-50905i199208-199410
sub57102-50911
sub90950-01356
sub90950-01409
57107BRACKET SUB-ASSY, STRUT BAR, RH
main57107-50010i198912-199410
57108BRACKET SUB-ASSY, STRUT BAR, LH
main57108-50010i198912-199410
57111MEMBER, FRONT SIDE, RH
main57111-50010i198912-199208
W(AIR SUSPENSION)
sub57111-50011
main57111-50011i198912-199410
sub57111-50012
main57111-50030i198912-199208
W(AIR SUSPENSION)
sub57111-50031
main57111-50031i198912-199410
sub57111-50032
main57111-50050i198912-199208
sub57111-50051
main57111-50051i199208-199410
sub57111-50052
57112MEMBER, FRONT SIDE, LH
main57112-50010i198912-199410
sub57112-50011
sub90333-30002
sub90950-01409
main57112-50030i198912-199410
sub57112-50031
sub90950-01409
57113EXTENSION, FRONT SIDE MEMBER, RH
main57016-50010i198912-199410
57114EXTENSION, FRONT SIDE MEMBER, LH
main57017-50010i198912-199410
57115APLATE, FRONT SIDE MEMBER, OUTER RH
main57115-50010i198912-199208
sub57115-50011
main57115-50010i199208-199211
W(AIR SUSPENSION)
sub57115-50011
main57115-50011i199208-199410
sub57115-50012
sub90950-01356
57116APLATE, FRONT SIDE MEMBER, OUTER LH
main57116-50010i198912-199208
sub57116-50011
main57116-50010i199208-199211
W(AIR SUSPENSION)
sub57116-50011
main57116-50011i199208-199410
sub57116-50012
sub90950-01356
57177CROSSMEMBER, FRONT SIDE MEMBER TO DASH PANEL
main57177-50010i198912-199202
sub57177-50011
main57177-50011i199202-199410
main57177-50020i198912-199410
57197BOX, TORQUE, FRONT RH
main57197-50010i198912-199211
sub57197-50011
sub90950-01710
main57197-50011i199211-199410
57198BOX, TORQUE, FRONT LH
main57198-50010i198912-199211
sub57198-50011
sub90950-01710
main57198-50011i199211-199410
57209AMEMBER SUB-ASSY, ENGINE REAR MOUNTING
main57255-50010i198912-199211
sub57255-50011
main57255-50011i199211-199410
sub57255-50012
57411AMEMBER, FLOOR SIDE, INNER RH
main57401-50010i198912-199205
sub57401-50020
main57401-50011i199205-199410
sub57401-50021
main57401-50020i198912-199205
sub57401-50021
main57401-50021i199205-199410
57412AMEMBER, FLOOR SIDE, INNER LH
main57402-50010i198912-199205
sub57402-50020
main57402-50011i199205-199410
sub57402-50021
main57402-50020i198912-199205
sub57402-50021
main57402-50021i199205-199410
57417AREINFORCEMENT, FRONT FLOOR UNDER
main57417-50010i198912-199410
57461AMEMBER, CENTER FLOOR CROSS
main57461-50901i198912-199208
sub57461-50908
sub90950-01356
main57461-50902i199208-199410
sub57461-50904
main57461-50903i199208-199410
sub57461-50905
57523BRACE, CENTER FLOOR CROSSMEMBER
main57523-50010i198912-199410
57601MEMBER SUB-ASSY, REAR FLOOR SIDE, RH
main57601-50010i198912-199211
sub57601-50011
sub58325-50010
main57601-50011i199211-199410
sub57601-50021
main57601-50020i198912-199211
sub57601-50021
sub58325-50010
main57601-50021i199211-199410
57602MEMBER SUB-ASSY, REAR FLOOR SIDE, LH
main57602-50010i198912-199410
sub57602-50020
main57602-50020i198912-199410
57605BMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.1
main57605-50010i198912-199410
57615AMEMBER, REAR FLOOR SIDE, REAR RH
main57615-50900i198912-199211
sub57615-50901
sub58325-50010
main57615-50902i199211-199410
57617MEMBER, REAR FLOOR SIDE, REAR LH
main57616-50900i198912-199211
sub57616-50901
main57616-50901i199208-199410
57627CCOVER, REAR FLOOR SIDE MEMBER, RH
main57627-50010i198912-199410
57628CCOVER, REAR FLOOR SIDE MEMBER, LH
main57627-50010i198912-199410
57653AMEMBER, REAR FLOOR CROSS, NO.2
main57653-50010i198912-199208
sub57653-50011
sub90333-25001
main57653-50011i199208-199212
sub57653-50012
sub58307-50011
main57653-50012i199212-199306
sub57653-50013
main57653-50013i199306-199410
57659BMEMBER, REAR FLOOR CROSS, REAR INNER
main57659-50010i198912-199410
58149BPLATE, FRONT FLOOR REINFORCE NUT
main58149-50010i198912-199410
5832550010BOARD, REAR FLOOR, FRONT
main58325-50010
9011908636
main90119-08636
9011910551
main90119-10551
9011912174
main90119-12174
9011912179
main90119-12179
9015001506
main90150-01506
9017908174
main90179-08174
9033330004
main90333-30004
9095001173
main90950-01173
9095001327
main90950-01327
9095001528
main90950-01528
9095001535
main90950-01535
9095001555
main90950-01555
9095001627
main90950-01627
9095001665
main90950-01665
9095001666
main90950-01666
9095001668
main90950-01668
9095001678
main90950-01678
9095001680
main90950-01680
9095001700
main90950-01700
9095001709
main90950-01709
9095001723
main90950-01723
9095001808
main90950-01808
9095040001
main90950-40001

55 parts on this diagram · 1 diagram in section
